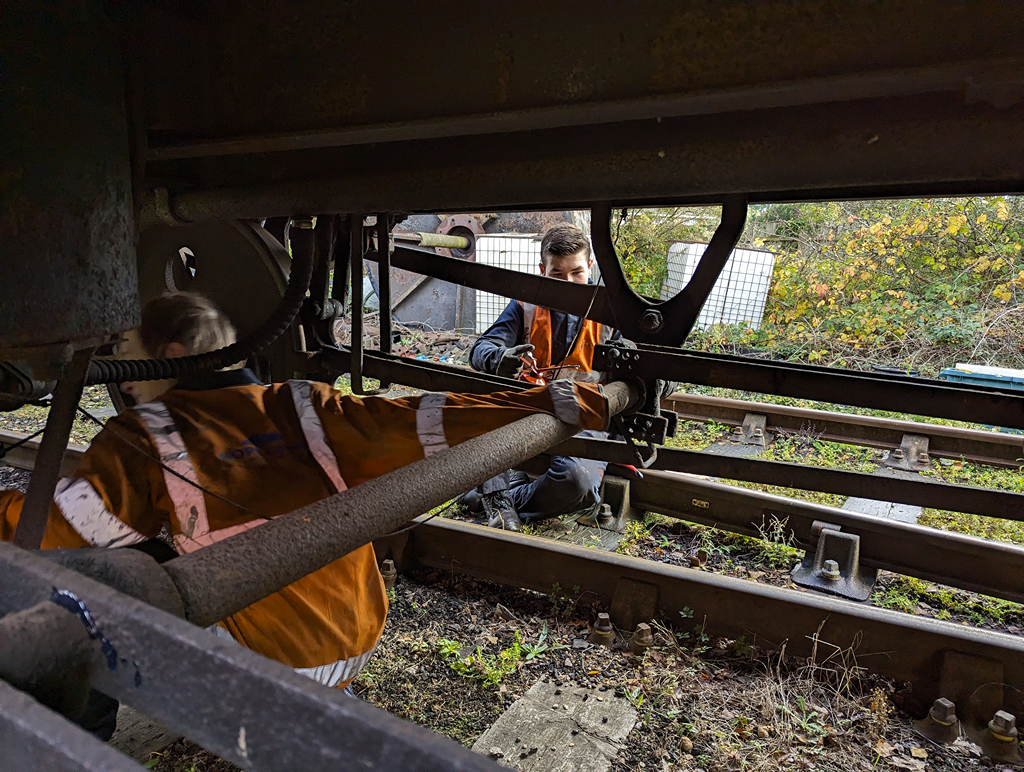

Hello all, and welcome to another of our updates. Our focus has been getting A6090 coated in grey undercoat, ready for a coat of black gloss.

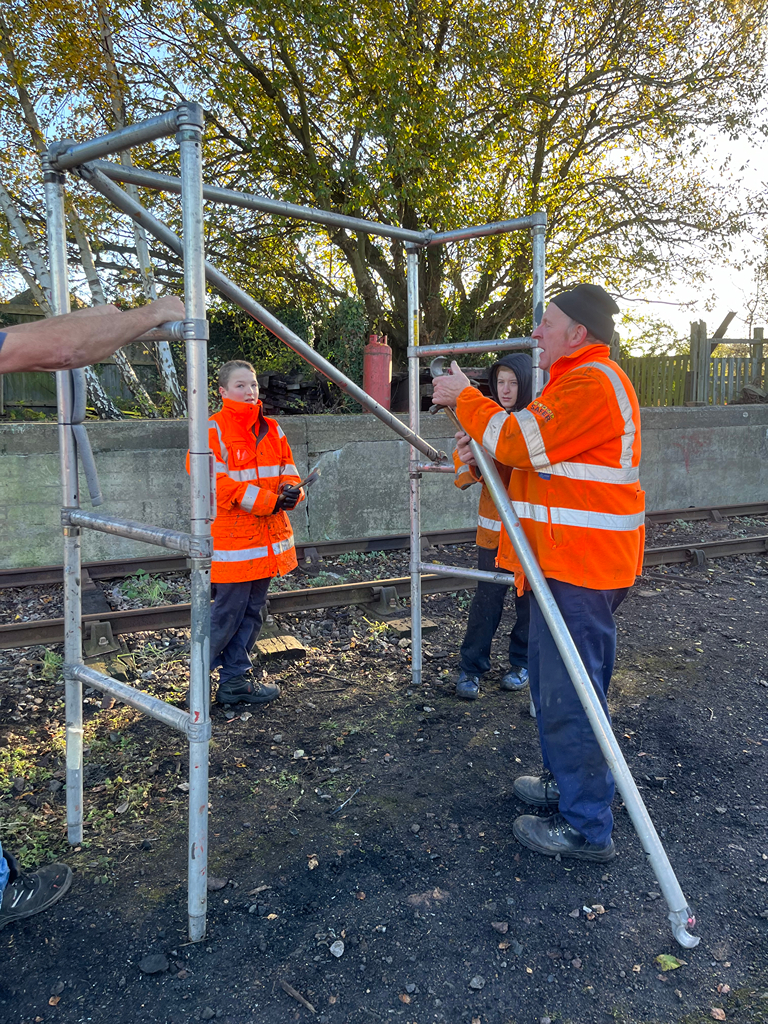

Looking forward, we want to put our BRUTE Trolleys in covered accommodation. That’s the six restored ones and the two that require further work, to stop them deteriorating further while their time comes. The 6 restored ones will end up in the BR Palvan, whilst a home had yet to be identified for the unrestored BRUTEs. For ease of access, B784409 was chosen. Nick and I moved various items on the floor and lifted the trollies in, and backfilling the trollies with the stored items. Lastly some timbers were wedged between the trollies to prevent them moving. We’ll check these when the vans have run at the next gala.

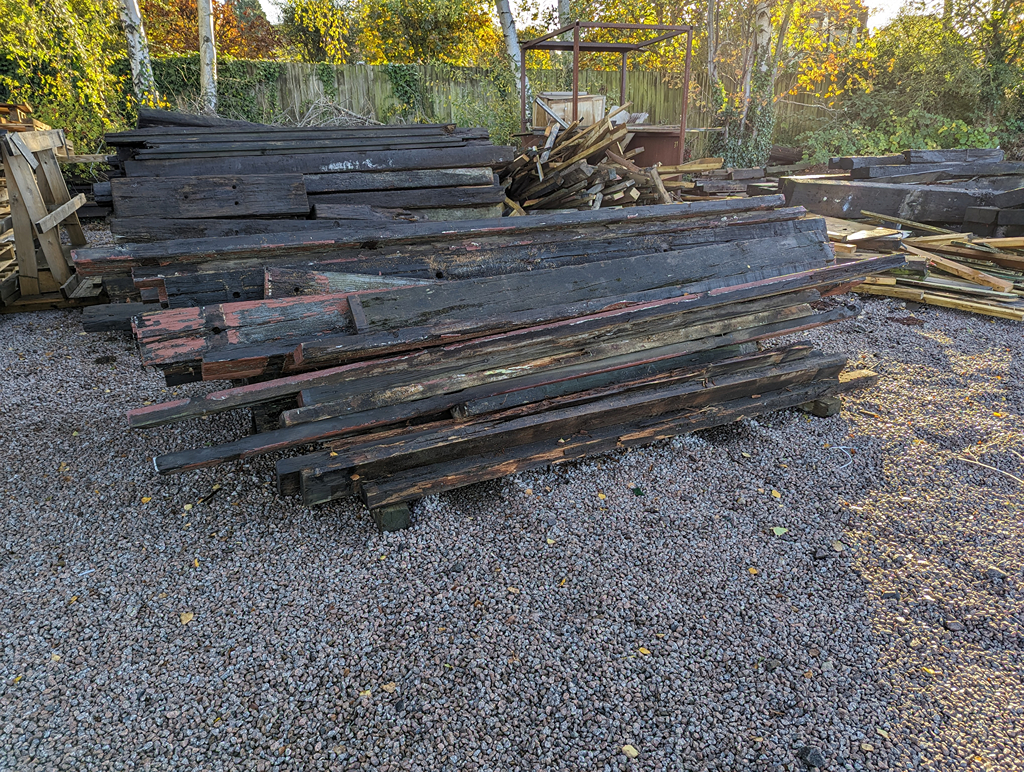

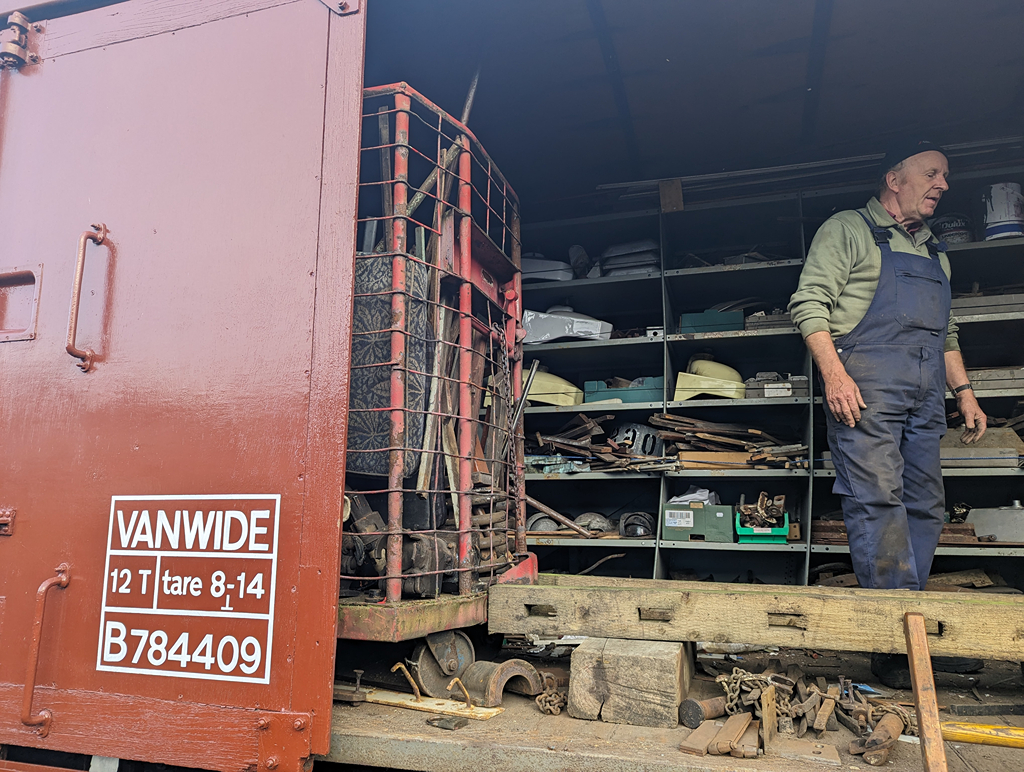

Whilst in a tidying up mood, Charlie and Ernie gathered the wood removed from the Pipe wagon and placed it in the pile of wood for the railway’s Bonfire Event.

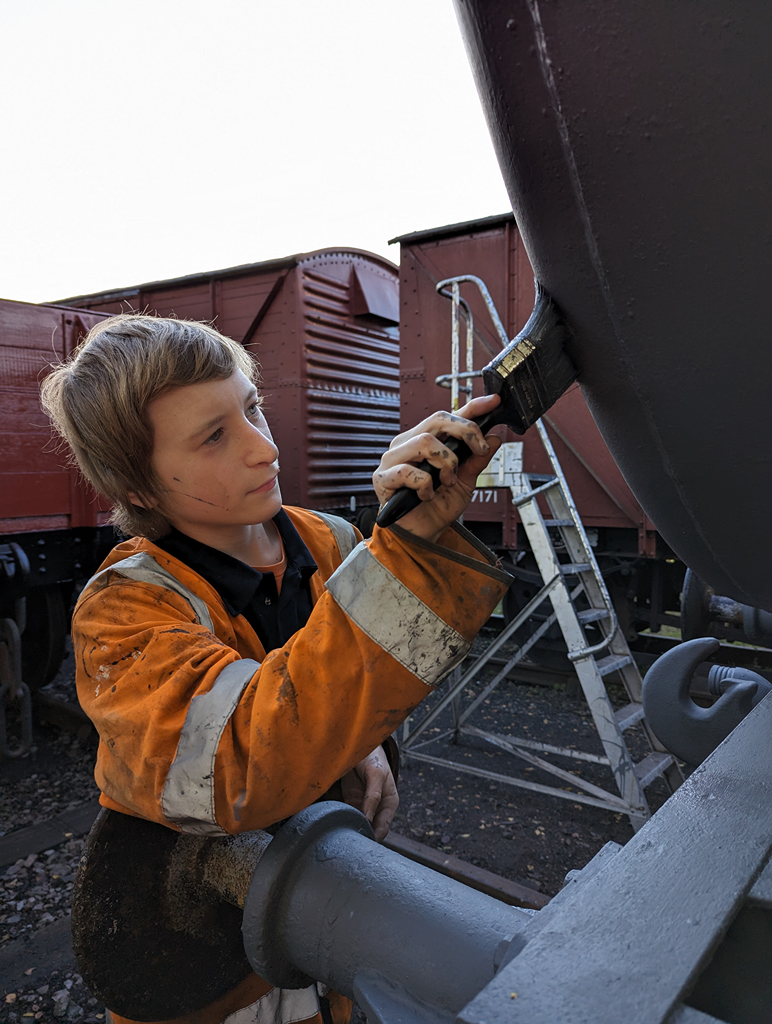

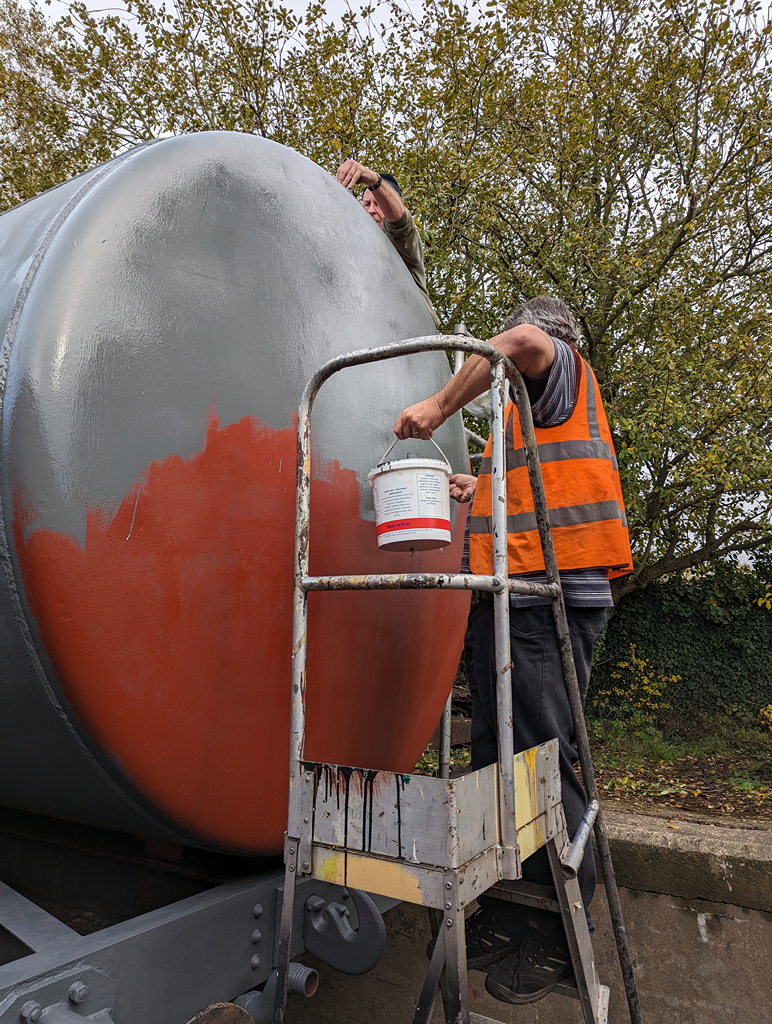

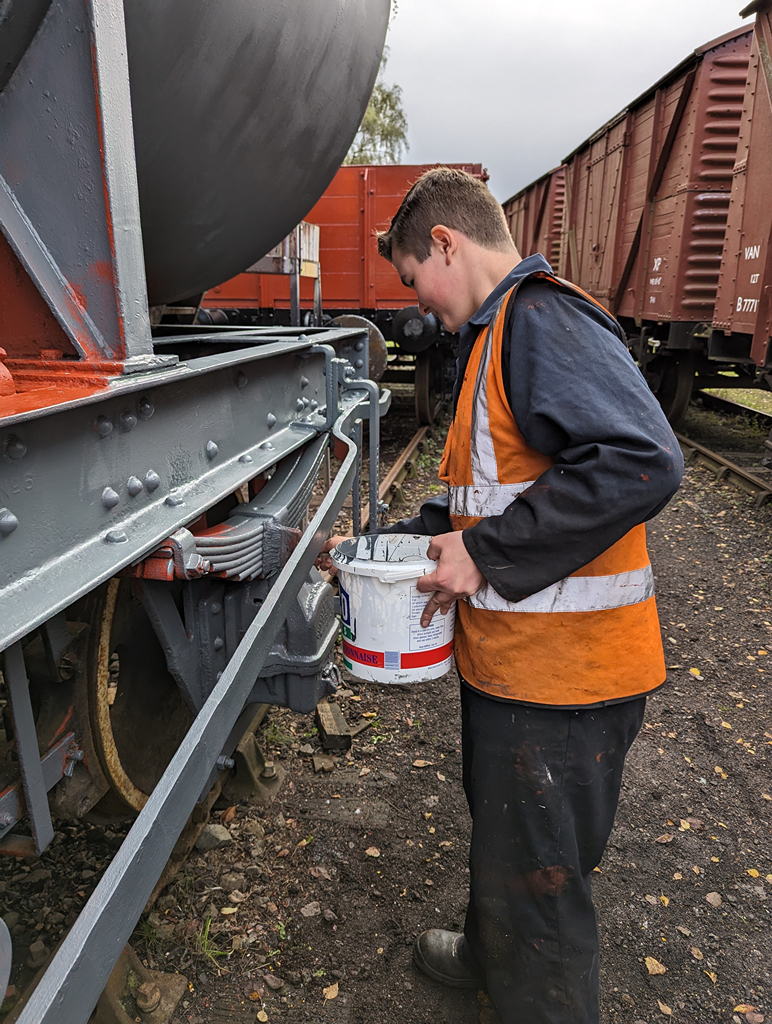

Sunday ended up being the warmer and drier day of the two, so we used that to be able to paint the tank. We let the tank dry in the morning sun and got the undercoat sorted out, then we all hit it, managed to get round the whole tank before 4pm.

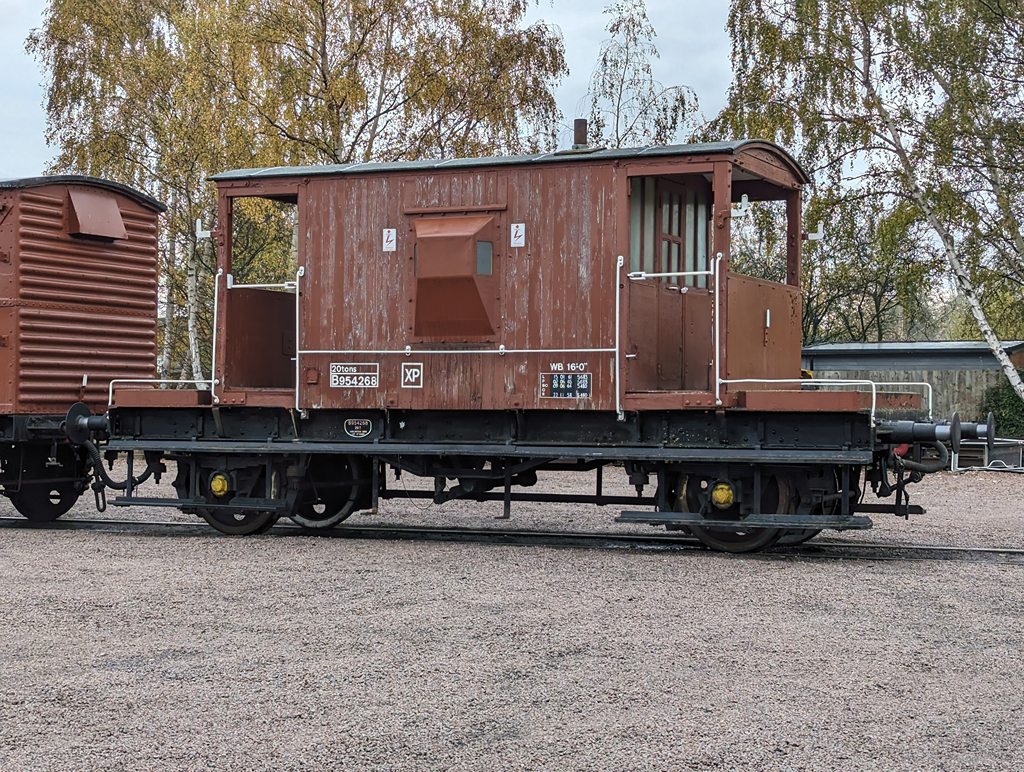

Well, I say all of us, Dan did spend the morning finishing off the signwriting on the tool van, B854097, before joining us on the tank.

We’re working on a plan to finish off the tank, but for now it will stay in undercoat. Painting a lot of gloss paint at this time of year would be a folly. We’ll leave it there this week. Now that A6090 is now in undercoat, we’ll focus on getting 3777 further cleaned down and possibly primed. Join us next week to see how we get on!

Hello, and welcome to this week’s update. This week we’ve concentrated on A6090, ending the weekend with the wagon in primer ready for the next stage.

Being the Leicestershire half term week, the Baldwins and Nick came down to Quorn during the week and started to apply primer to the underframe of the tank. They also managed to tackle the south end of the barrel.

Nick and Ernie concentrated on the final cleaning down of the barrel of the tank, with a final blow down on Saturday afternoon.

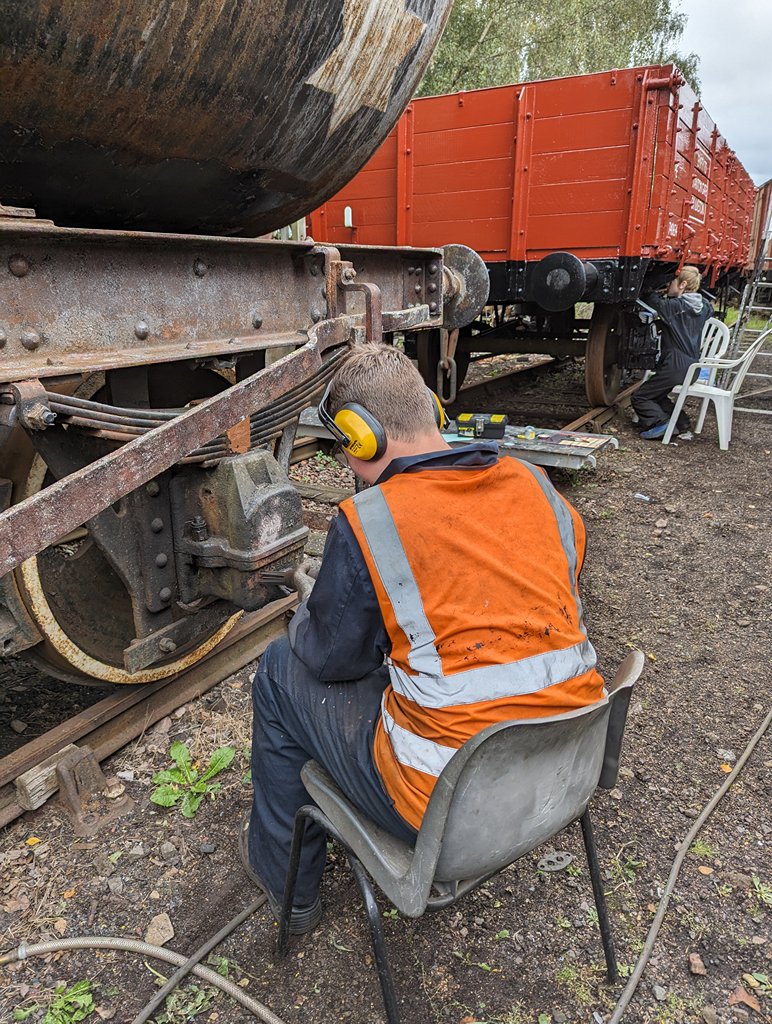

I took the opportunity on to have another play with the Brake Test Rig, testing the brakes on the Sturgeon and on 1408 following a procedure I’d written based off of a BR document. There are still some tweaks to make to the rig and procedure, including a suite of new gauges, but we’ve got the makings of a good set up. I refitted the castor on the test rig and fitted a bung in the Brake Pipe of 1408, removing an extra Schrader test point.

With 8 of us on site on Sunday, we made the decision with the weather being good to hit the rest of the tank in red oxide primer to carry on the good work.

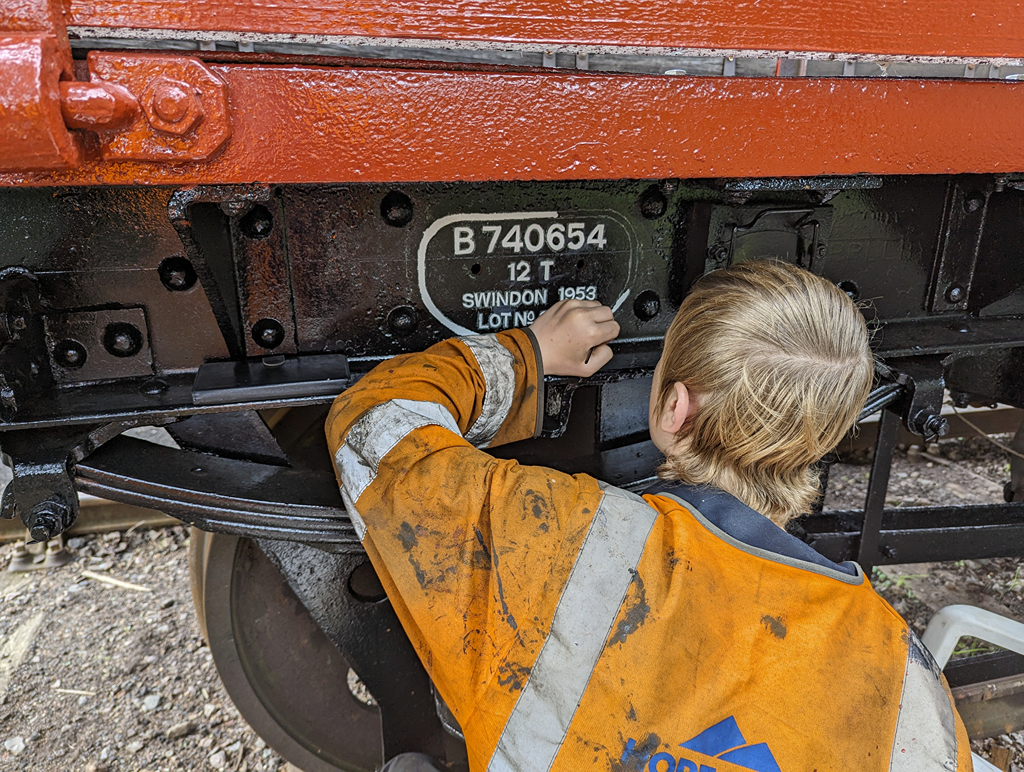

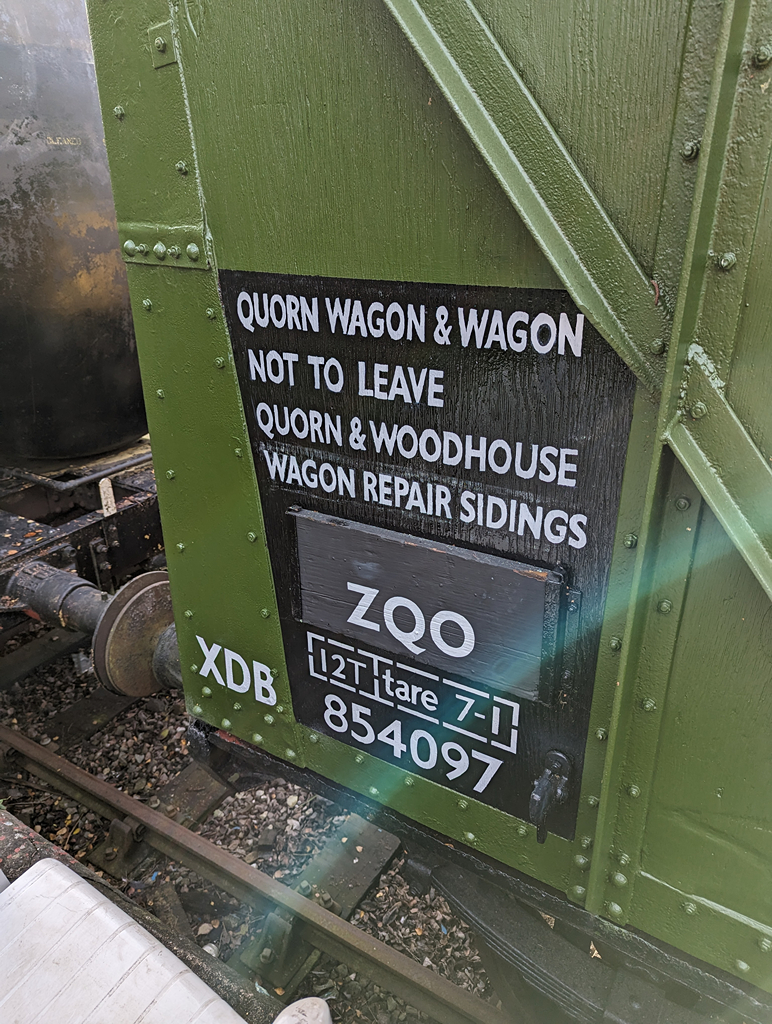

Dan focused on finishing the signwriting on B854097.

That about covers us for this week. Hopefully next week we’ll be able to get the tank undercoated but with the nights drawing in and the clocks falling back we’ll have to see how we manage. Join us then!

Hello everyone! Our little end of Quorn yard has seen the Pipe wagon completed this week, and more progress has been made on readying the two tanks for paint.

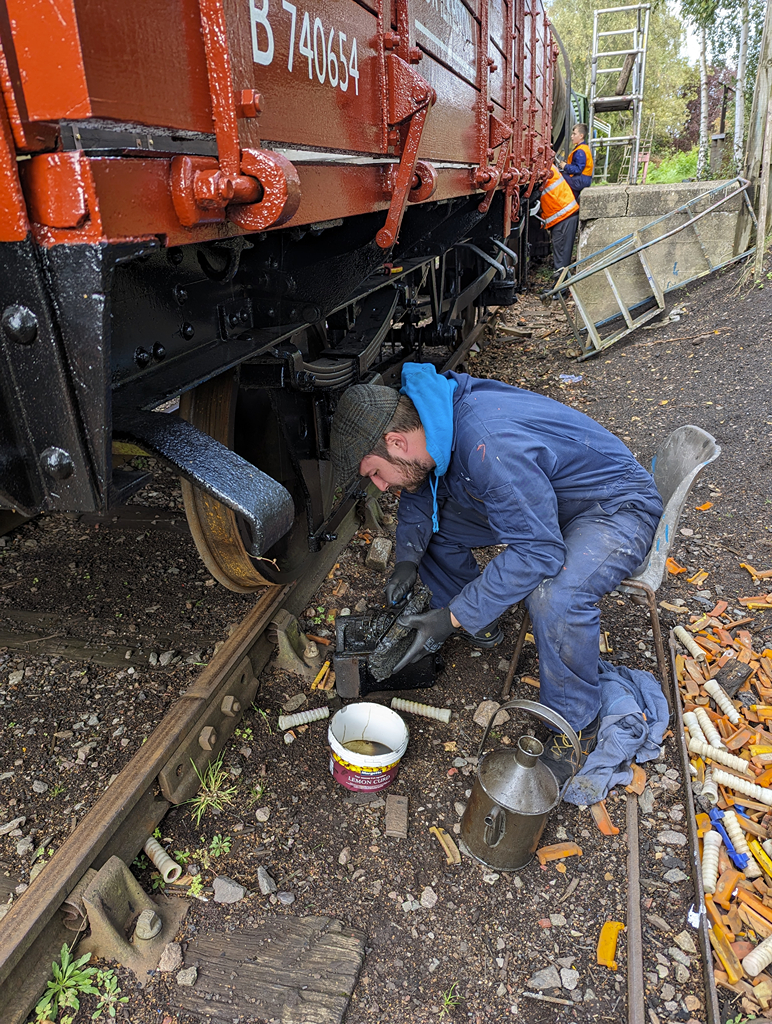

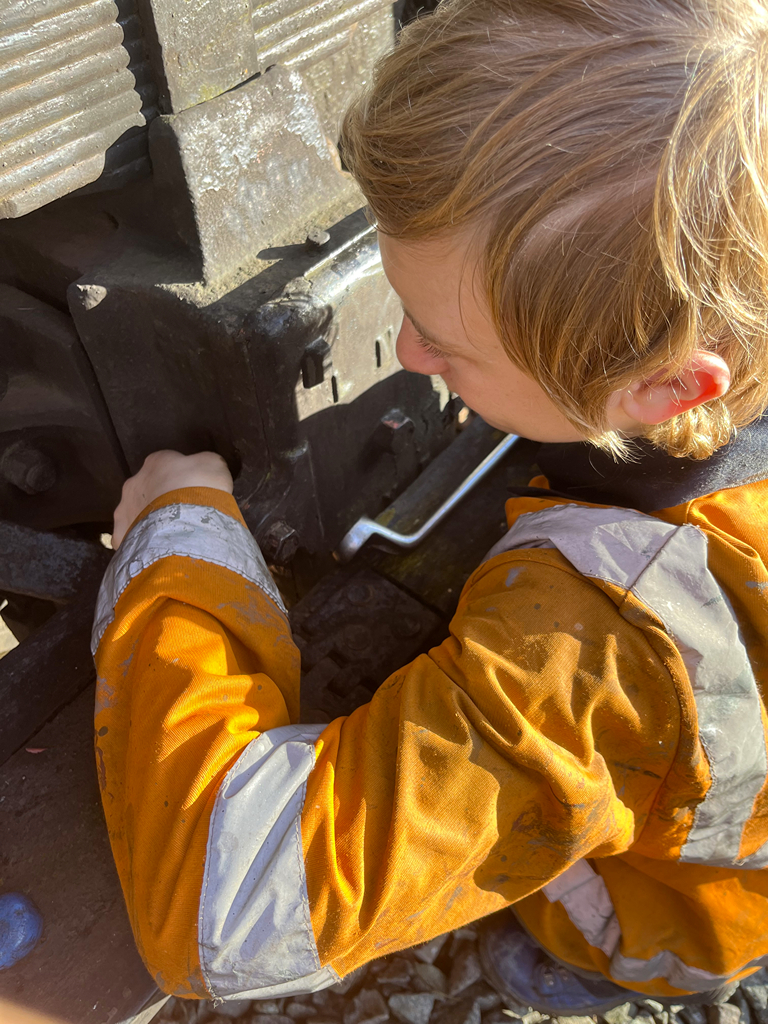

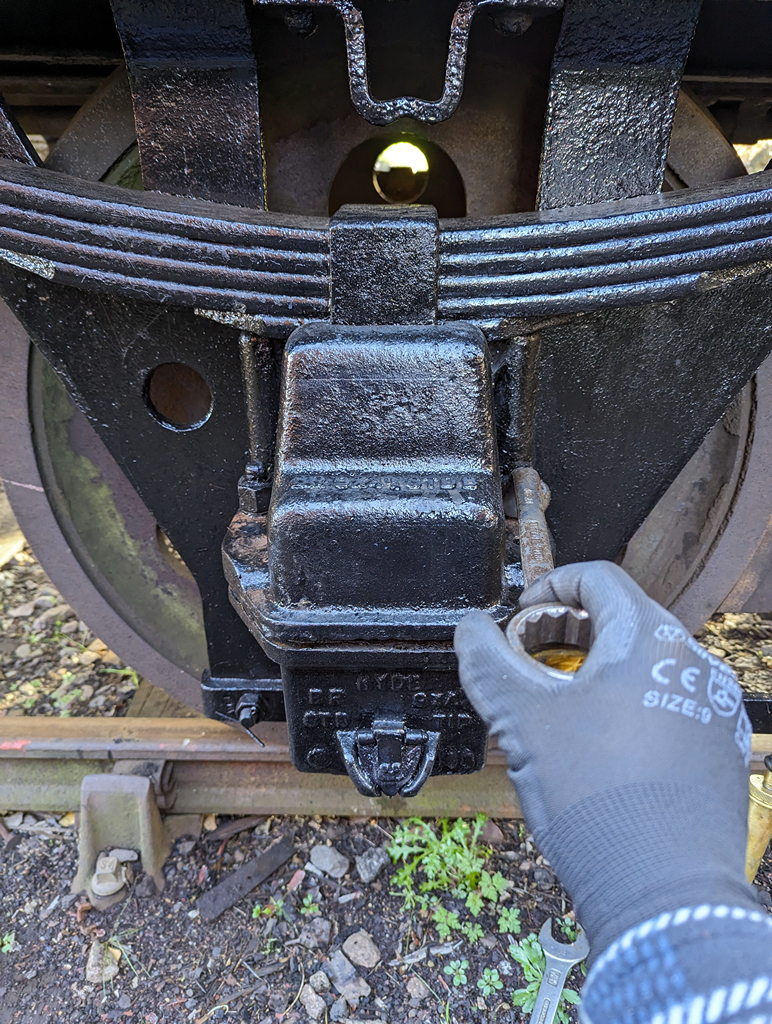

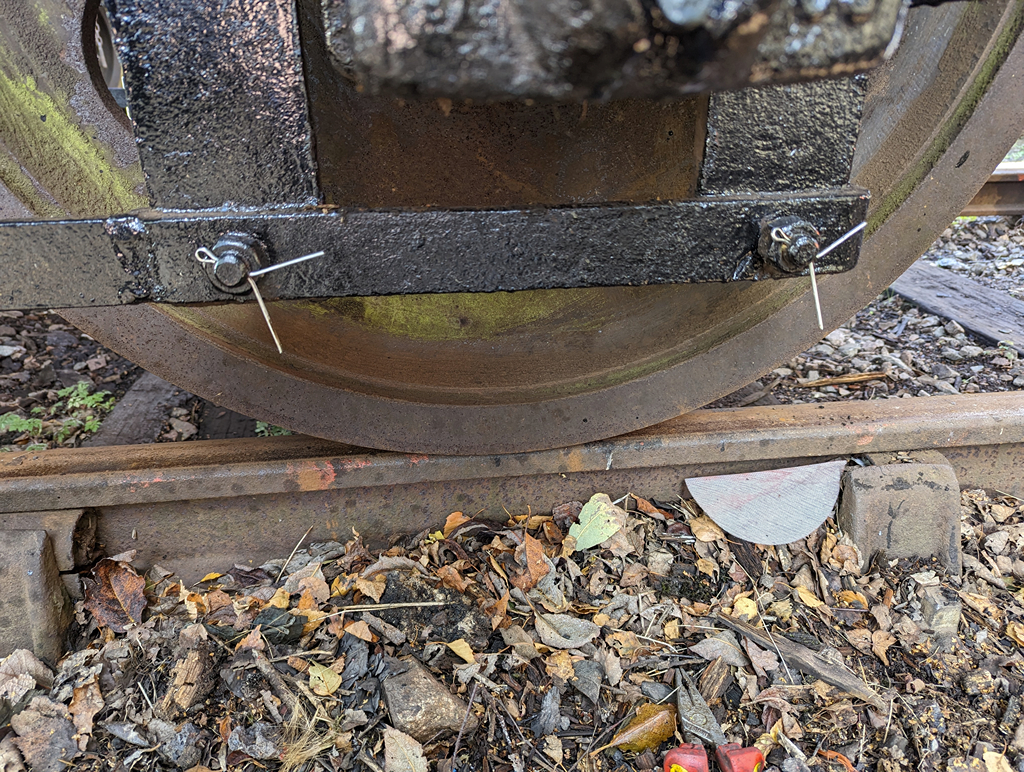

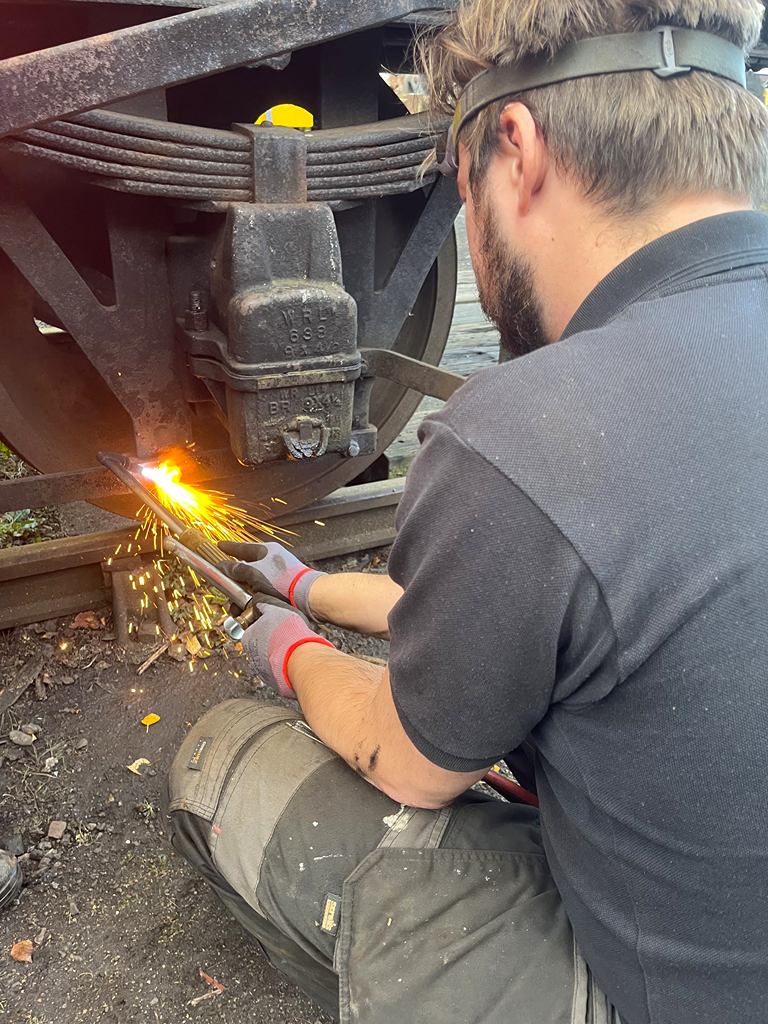

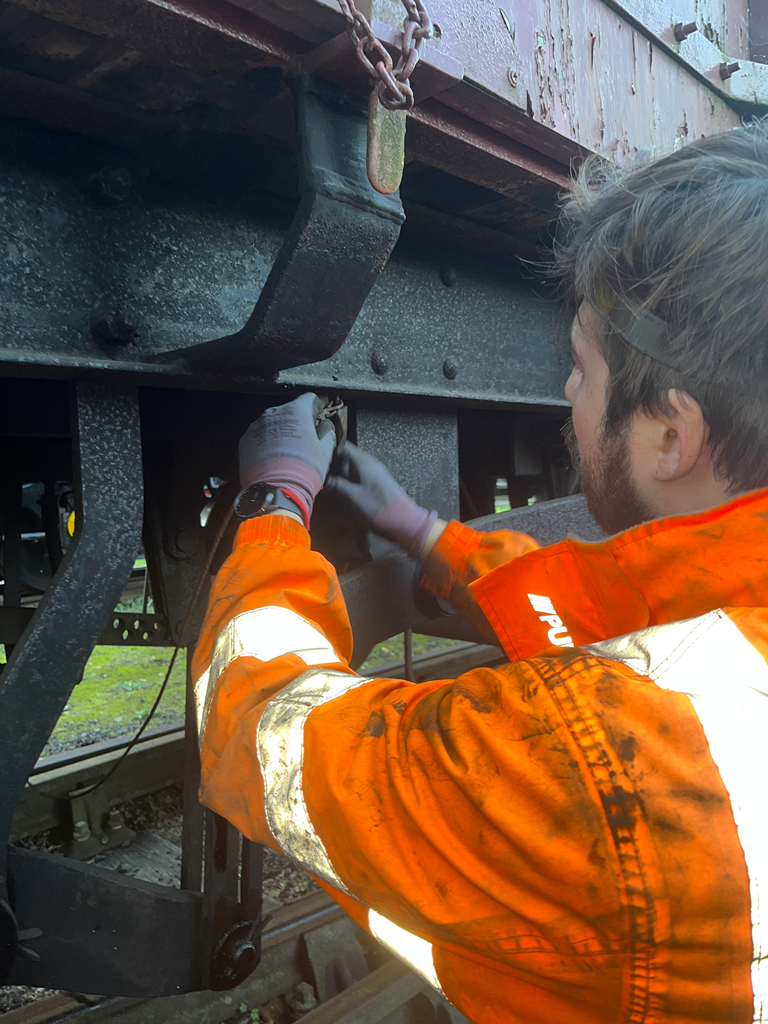

The last thing to finish off the Pipe was the axleboxes and 2 split pins on the underkeep under the dock side of the north axle. I attended to these, giving the wagon a clean bill of health. This can now join the mixed goods train, releasing space in the siding for another project vehicle.

Nick and Charlie started the day by continuing to eradicate the last remnants of algae from the outside of the tank, and then Nick moved on to finishing the repairs to the filler necks on both tanks, filling in the holes left by two different methods of filling the tanks.

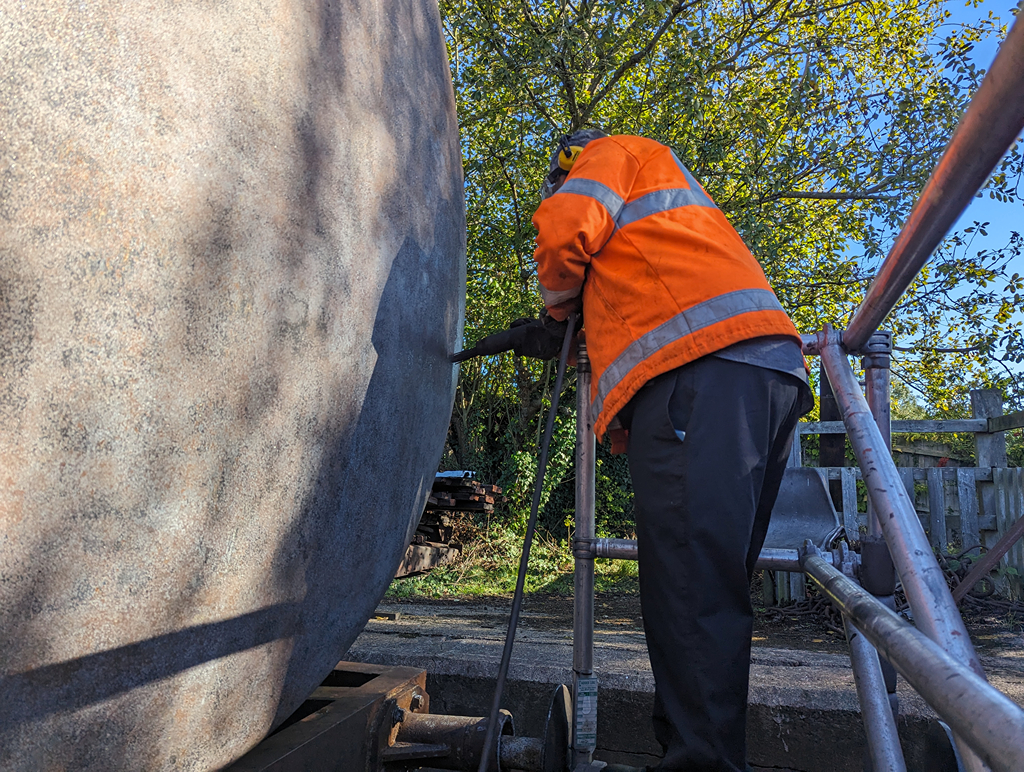

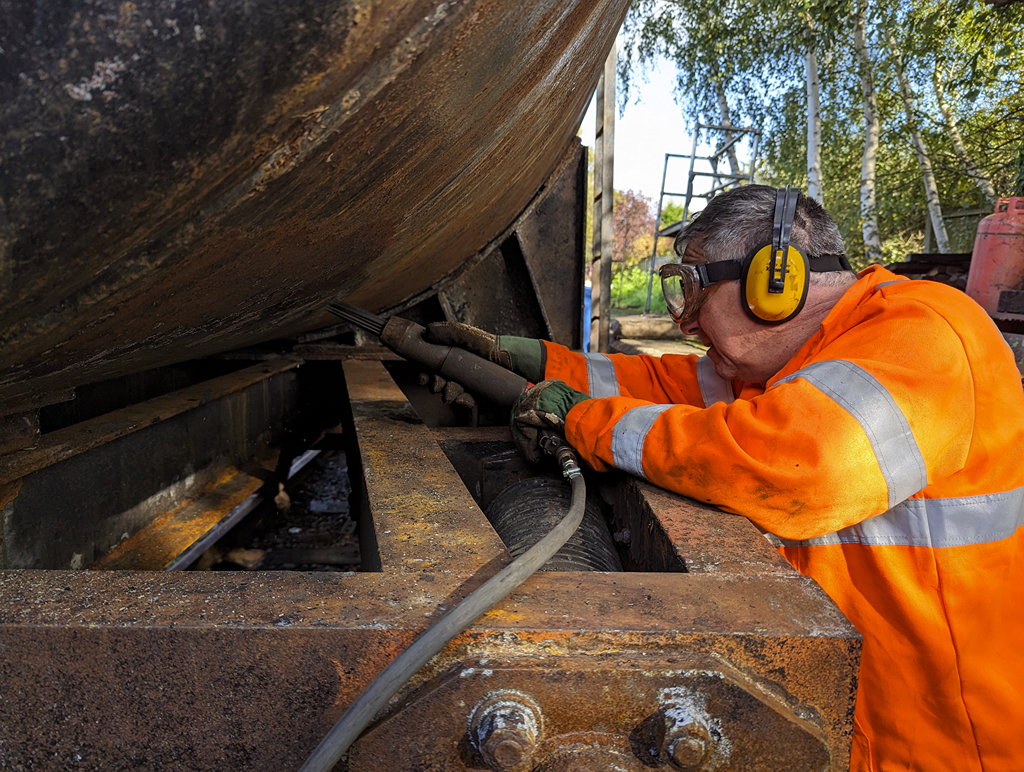

Barry and Ernie continued the clean down on A6090, Barry back on the needlegun. After finishing with the needle gun, Barry then picked up a linishing disc for the grinder to see how it would finish the surface of the tank, whihc left a surface good for priming.

I spent some time on the vacuum test rig, continuing to explore the air brake side of the rig and testing it with the Vanwide/VEB. All seems to have worked a treat, so now just a case of writing up a procedure of how to use that side of the rig.

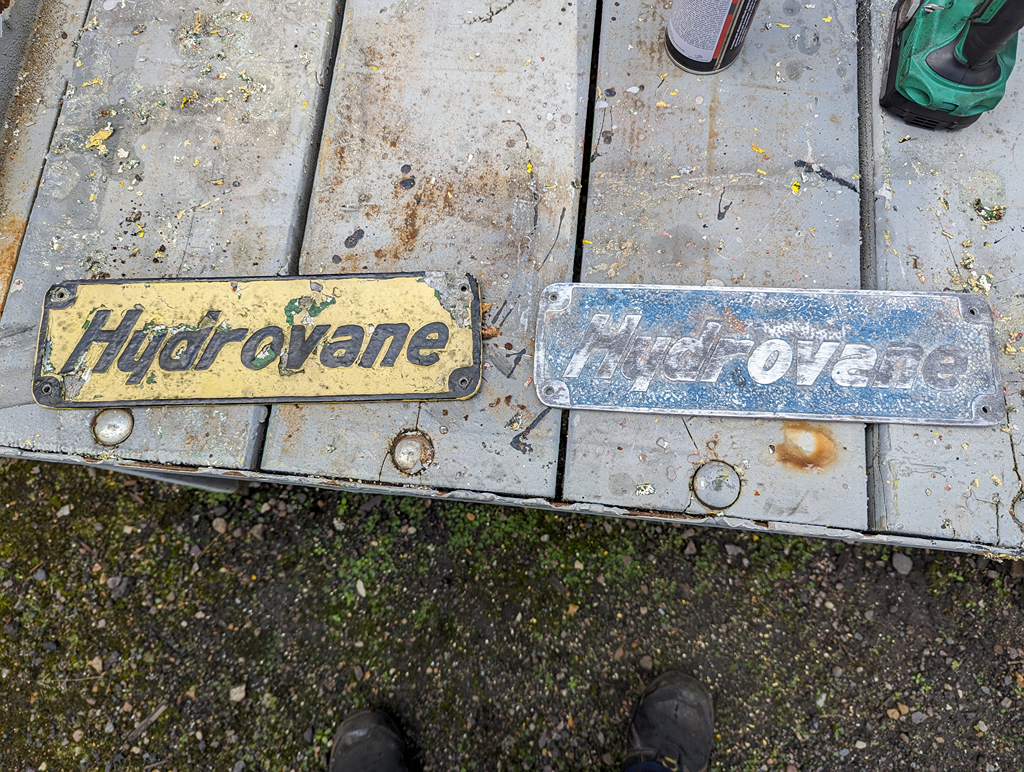

I also spent some time cleaning up the other Hydrovane plate.

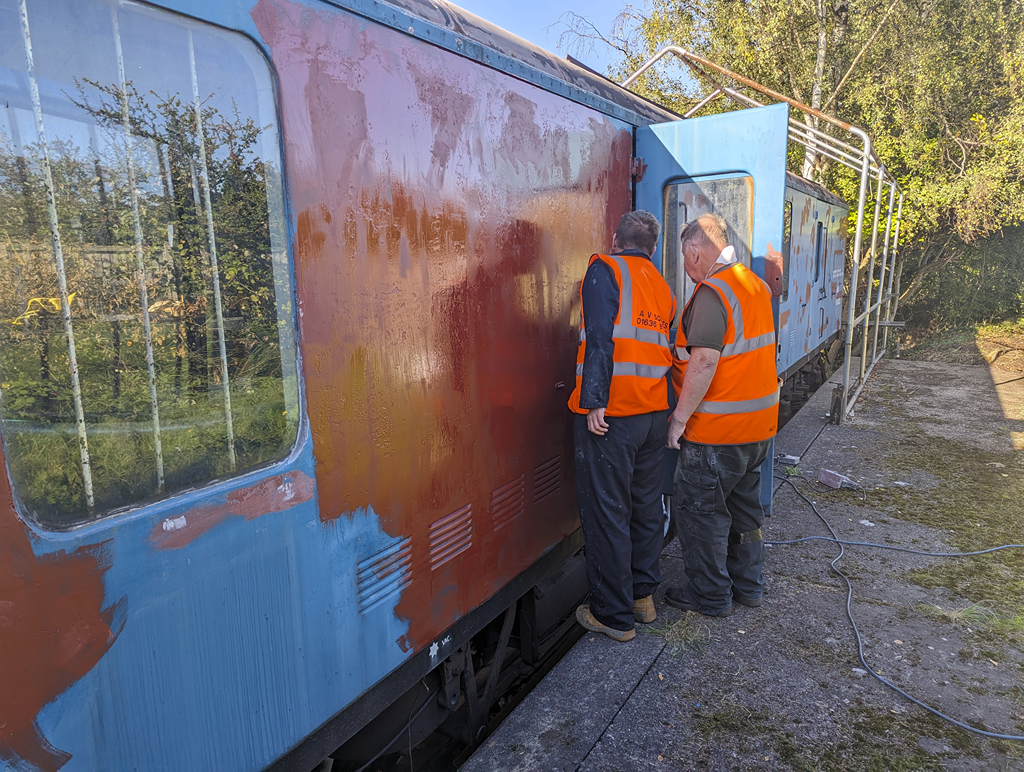

Harry and Andy came by on Sunday to carry on work on the GUV, doing some more filling, sanding and painting.

Barry and I finished off by sorting out the BEVs, topping up batteries, and looking at bit more in depth into Kiki as its getting a bit warmer than it used to when motoring.

That covers this week’s activities, join us again next week to see what we get up to! Its looking like there is the prospect of at least some primer on one of the tanks. Thanks for reading!

Hello everyone, and welcome to this week’s update. This week has been the railway’s Autumn Gala and it is always a highlight to see the wagons running. We even saw the two freights passing at Quorn, and both the mixed goods and the van train hauled by 2999 Lady of Legend. None of this has impacted progress though!

The signwriting on the Pipe is now finished, courtesy of Dan.

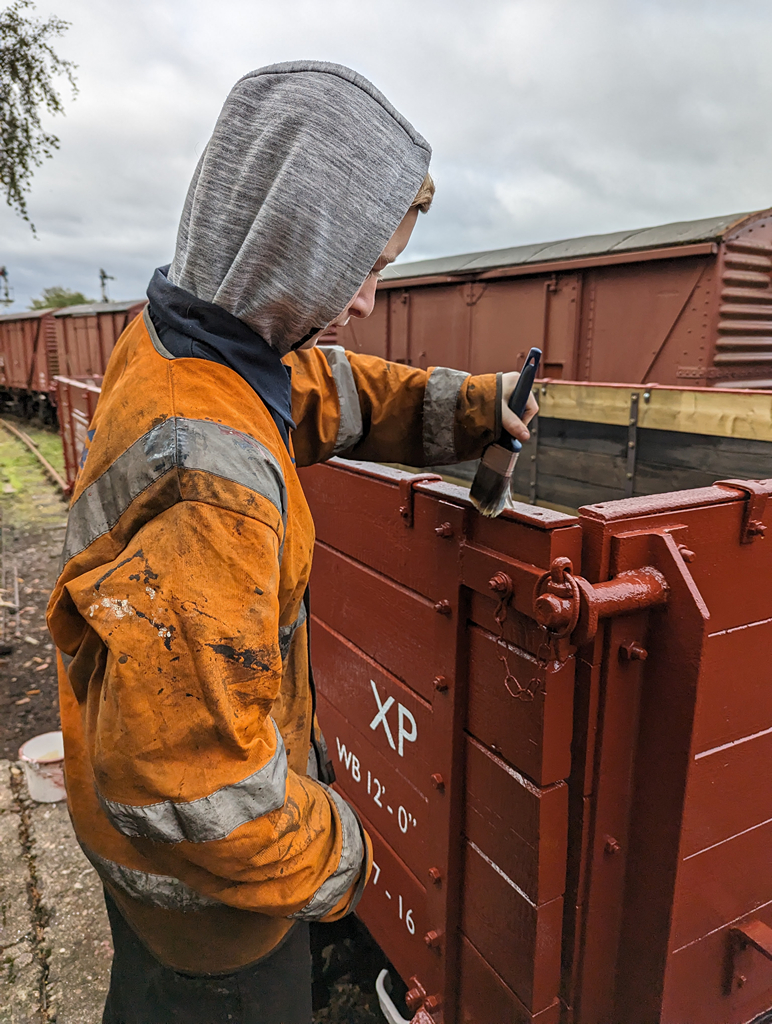

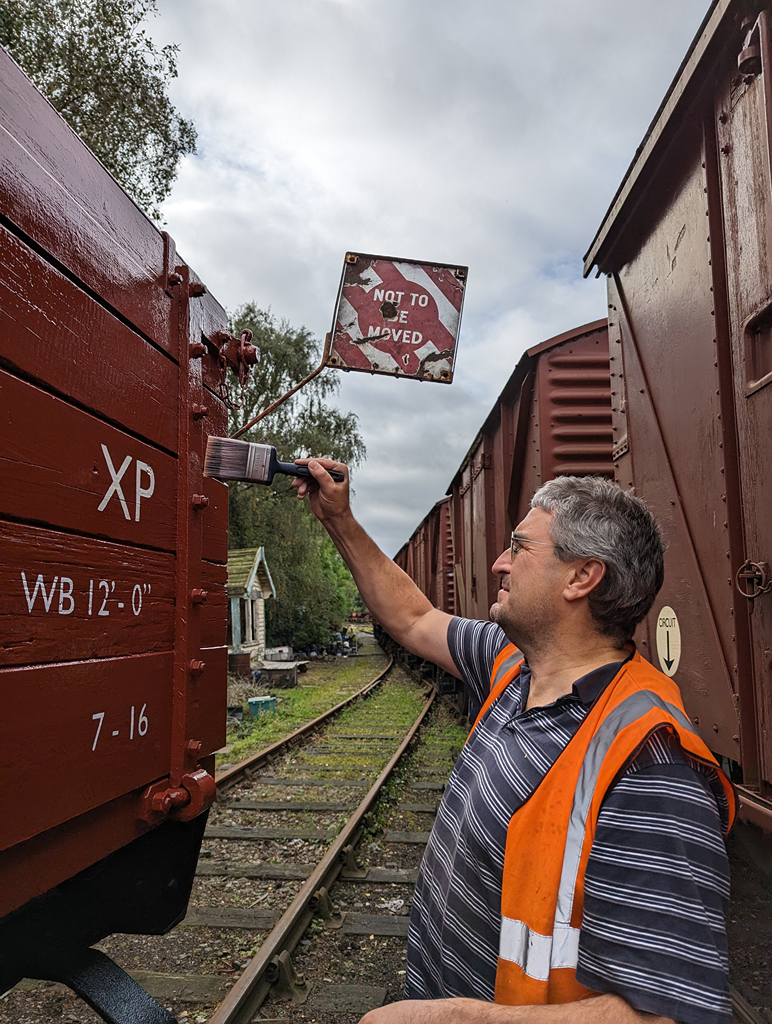

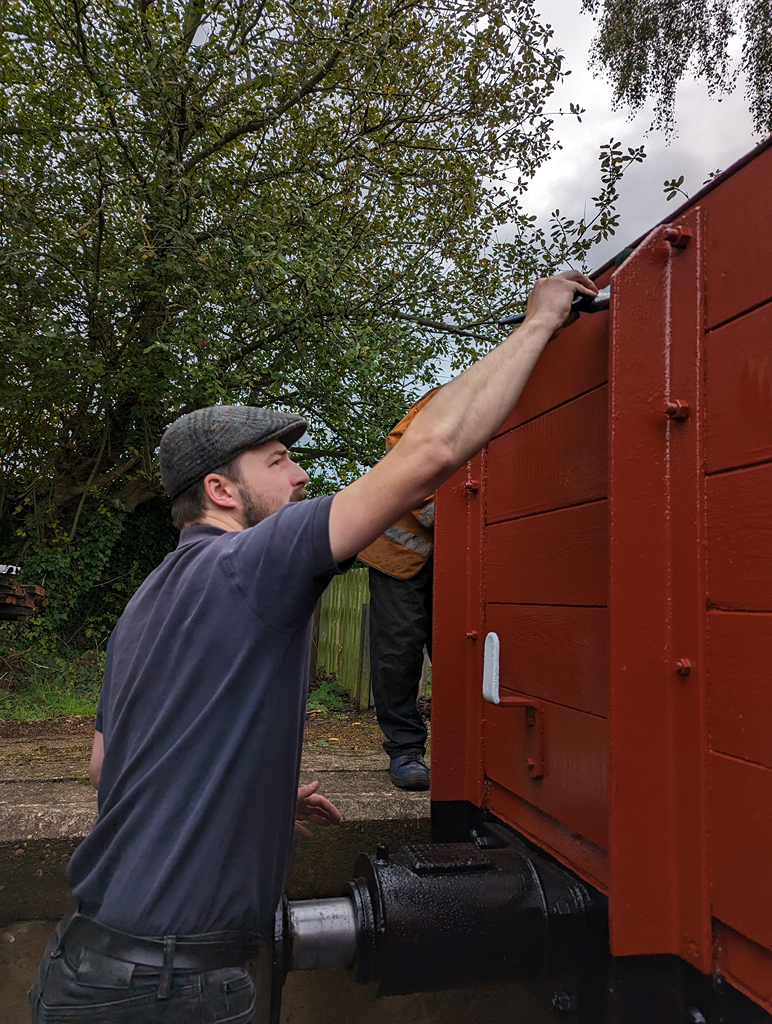

I noticed some undercoat showing through after varnishing the top caps of the doors, so sanded down two plank sections and re-glossed them, ready for a coat of varnish the next day.

Nick, Charlie and Oliver finished up sorting out the dock and stock after the box van at the end of the dock road had been removed. We’ve set everything back up and have settled back in.

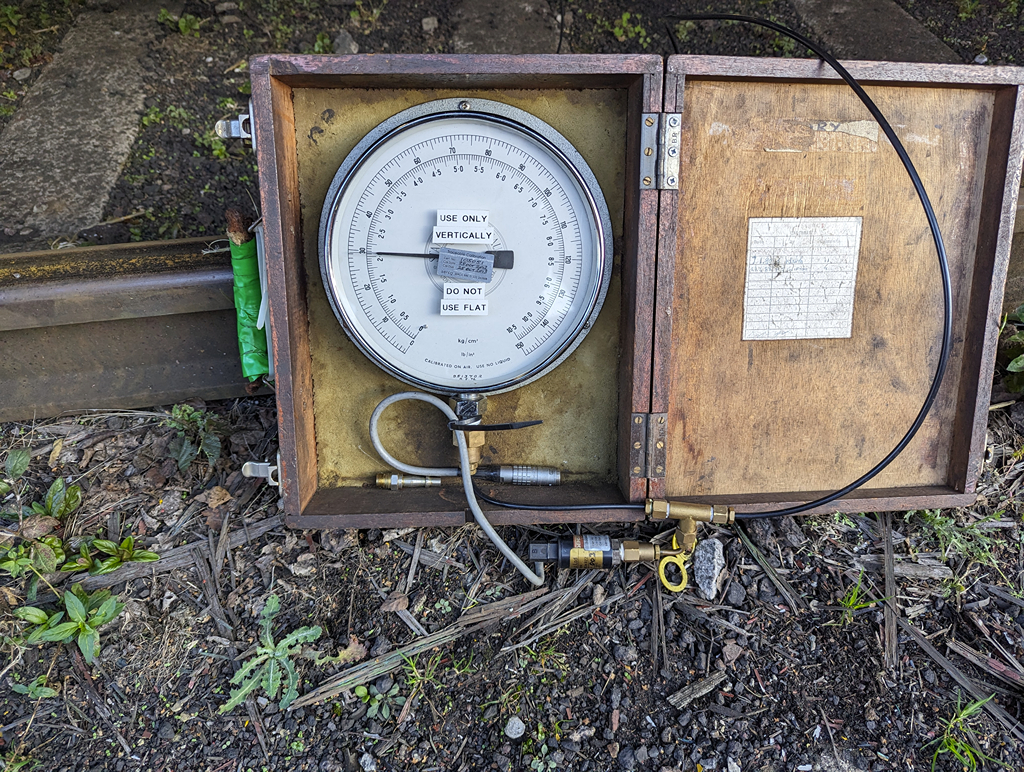

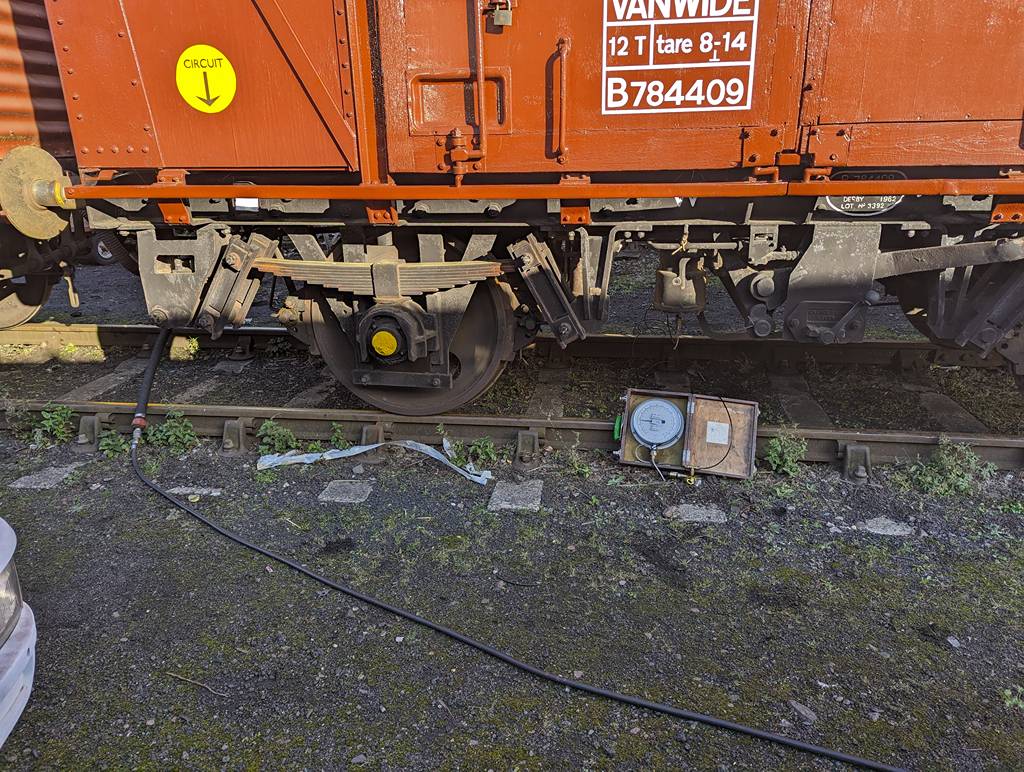

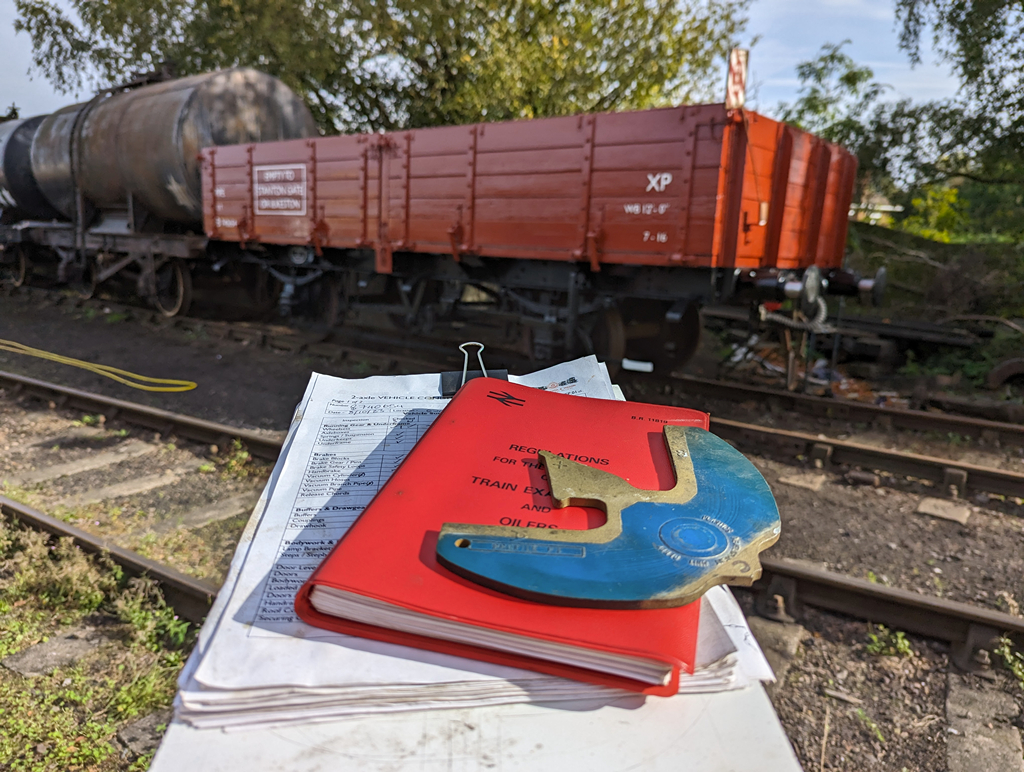

On Sunday, I finalised the Pipe, carrying out an inspection and vacuum brake test. The vacuum test passed with flying colours, though I found water in the axle boxes, so these will need to be done next week.

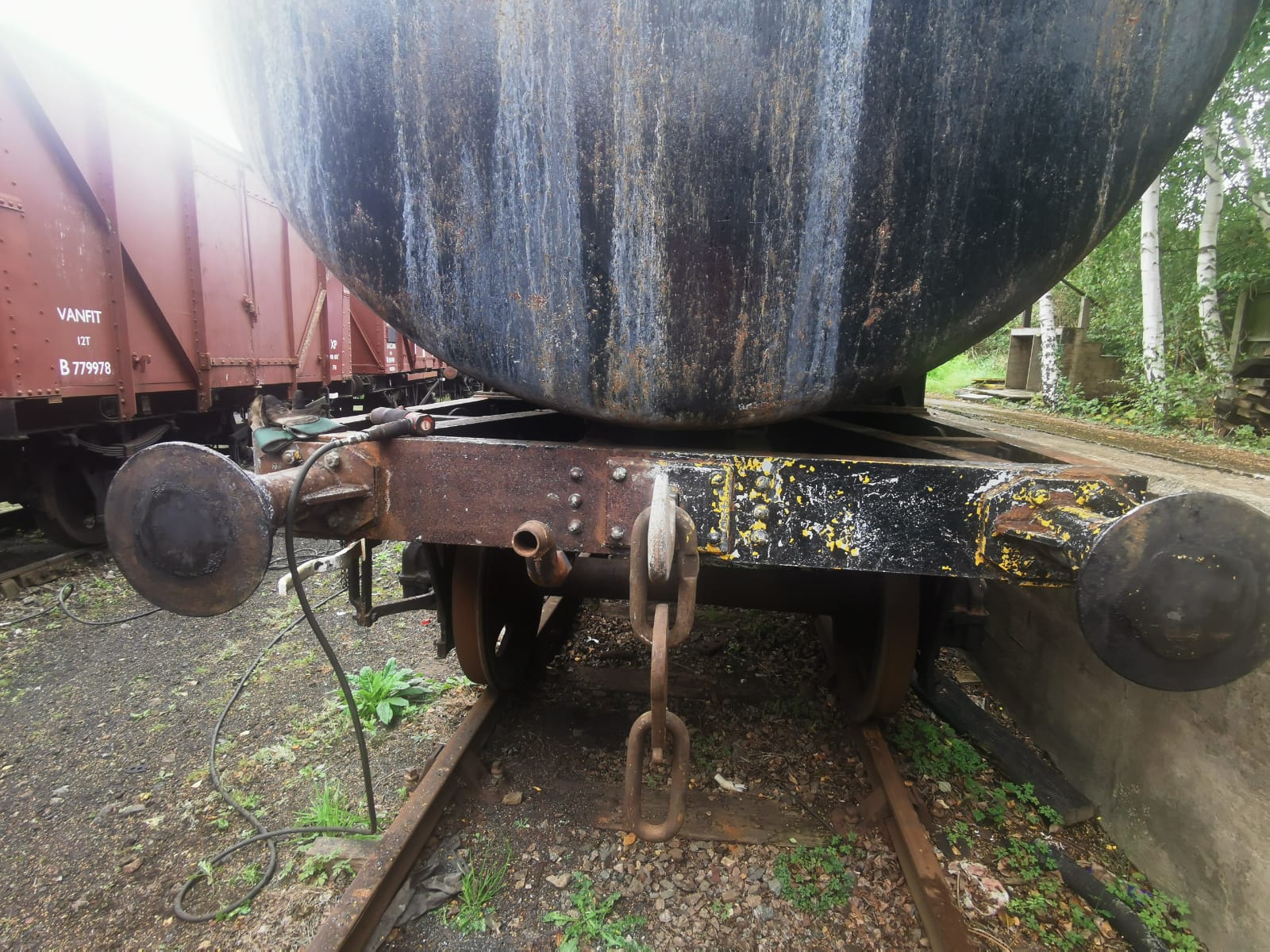

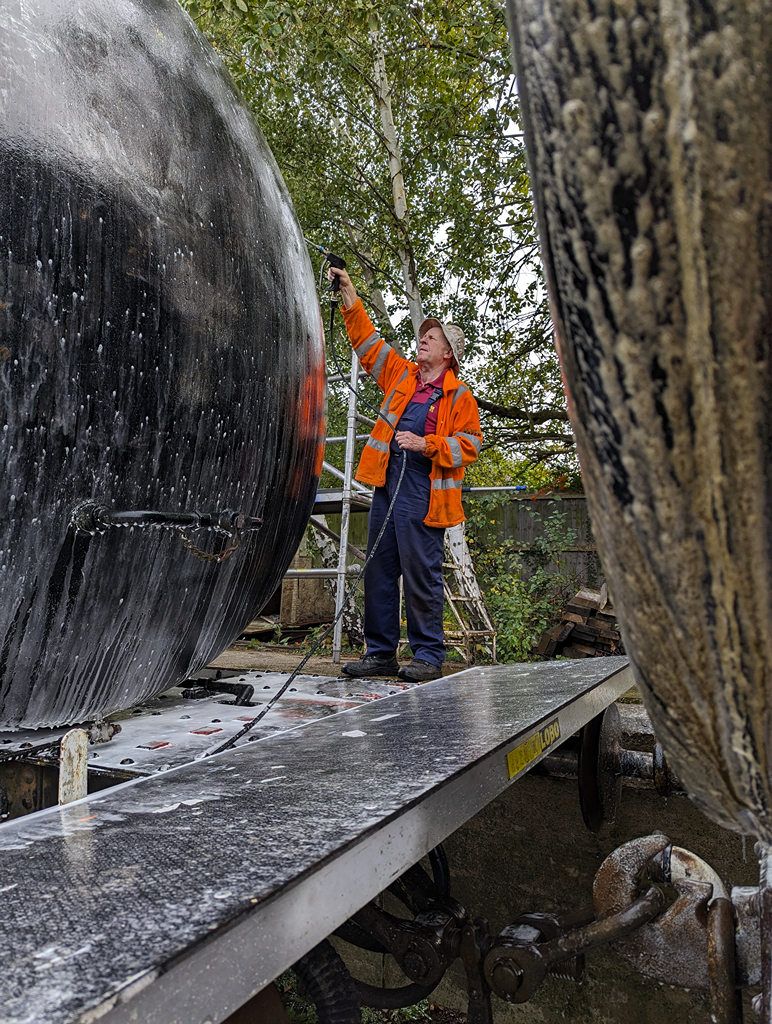

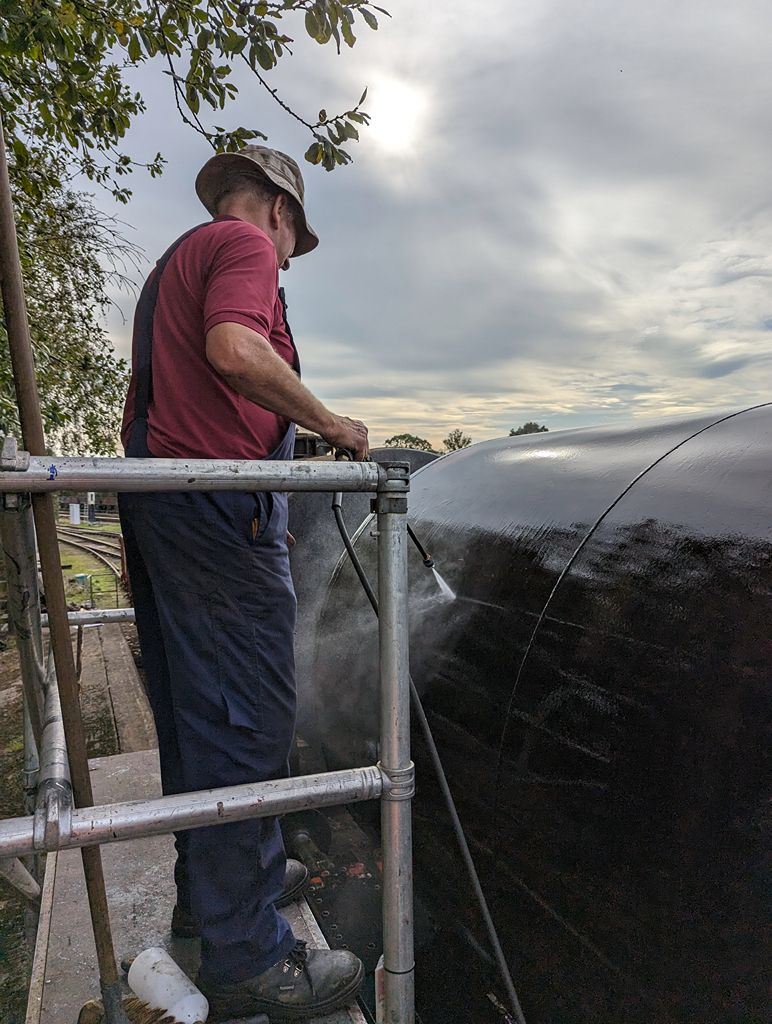

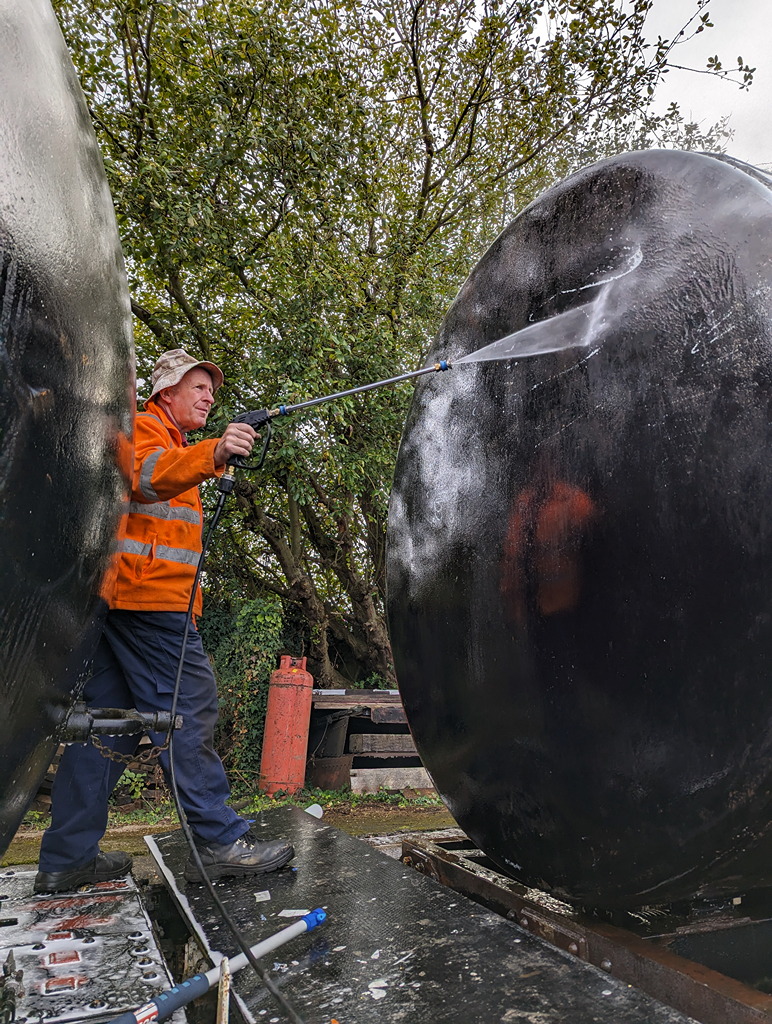

Nick started with the pressure washer on 3777 and A6090, finishing off the cleaning of the tanks by removing the algae and other residue.

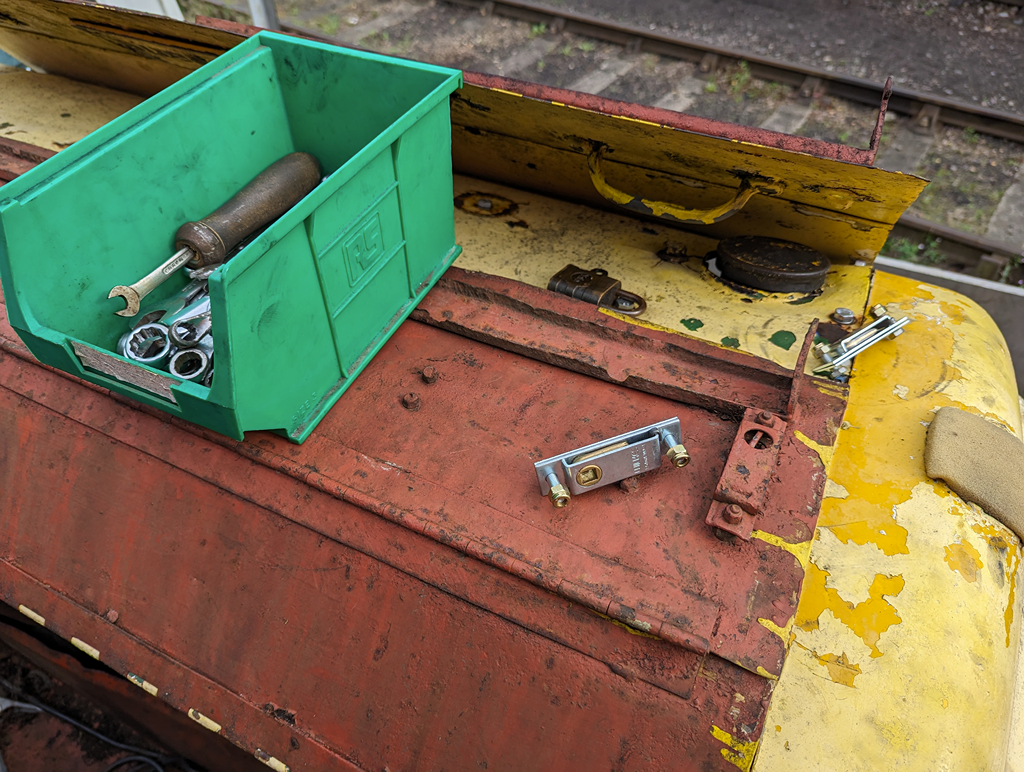

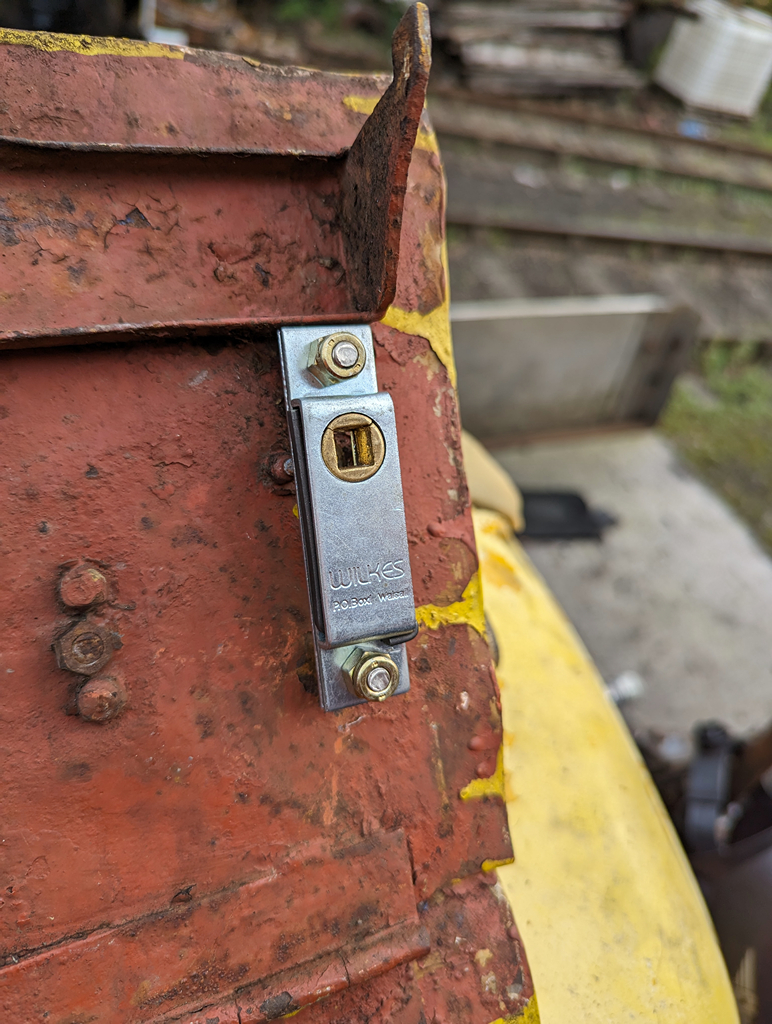

Carrying on with the momentum on the Hydrovane, I fitted locks to the canopy. On the subject of plant, I also made a start at re-comissioning the air brake side of the little diesel rig which seemed to work, aside from some gauges being broken.

That about wraps up this week, next week will see the Pipe finished and work on the tanks will continue in earnest. See you then!

Hello all, thanks for joining us for another update from Quorn. Nick has been away on a scout camp, so its been down to the rest of the team to hold the fort. We’re one wagon plate away from finishing the Pipe, and A6090 has been moved to the dock and needlegunned on the west side.

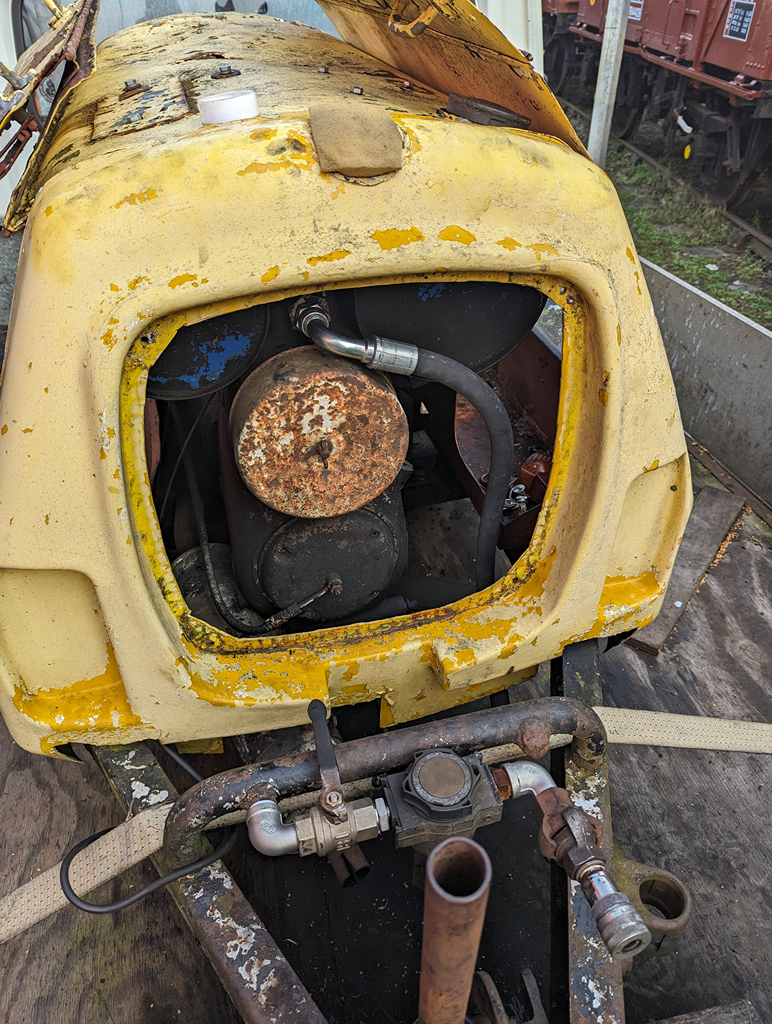

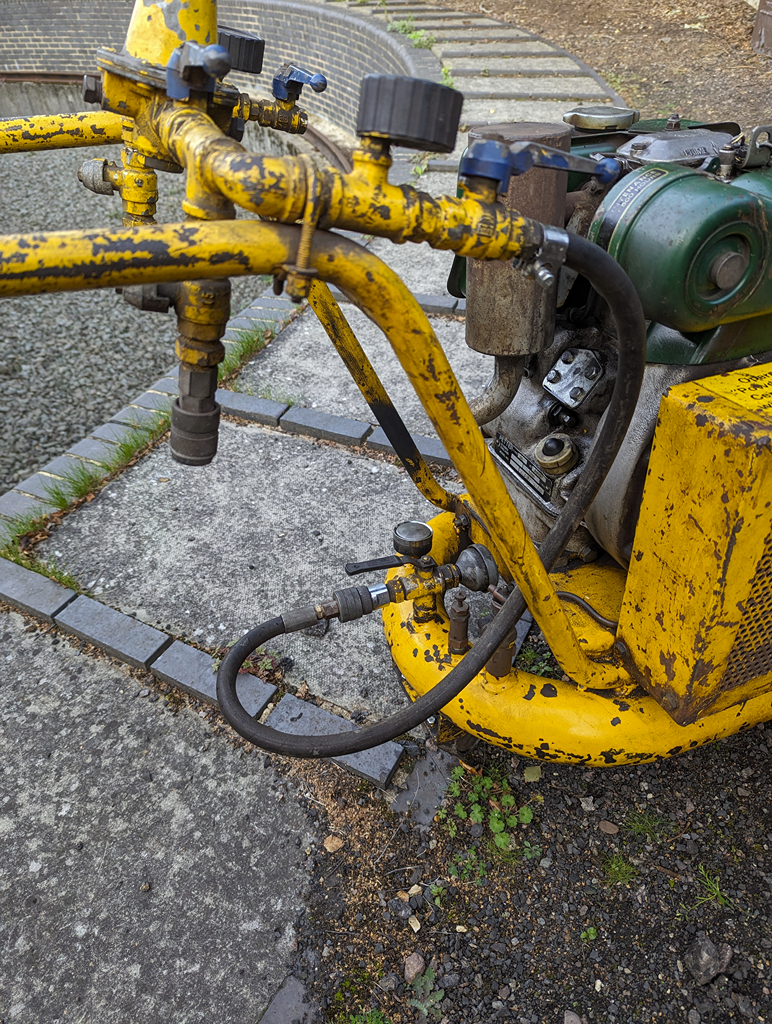

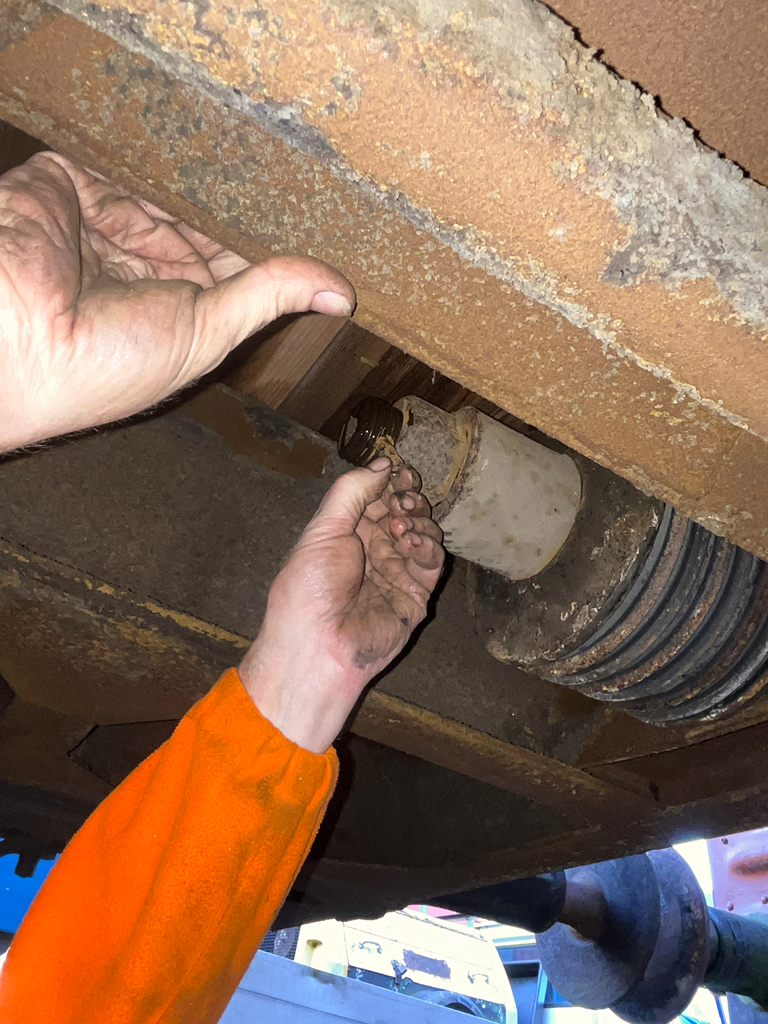

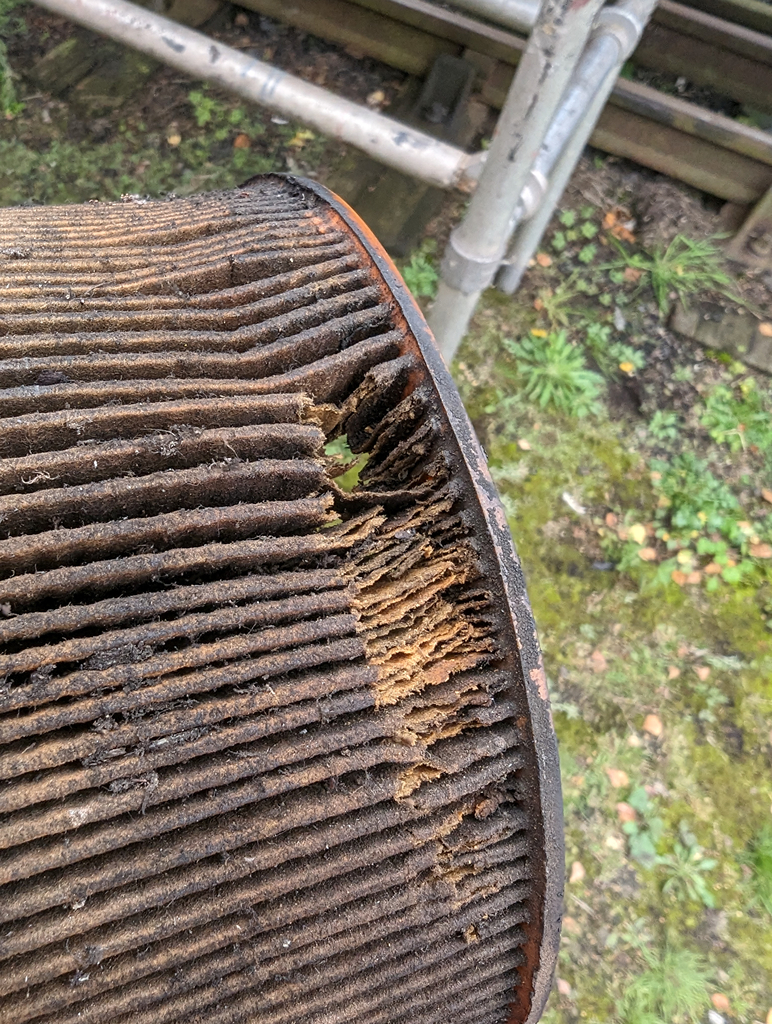

Before getting onto the main event, Barry and I fixed the Hydrovane. Barry had got the feed pipe made new during the week, and I’d got a new compressor air inlet filter. I also managed to find a new oil filter in our spares and some appropriate oil to give the engine an oil change.

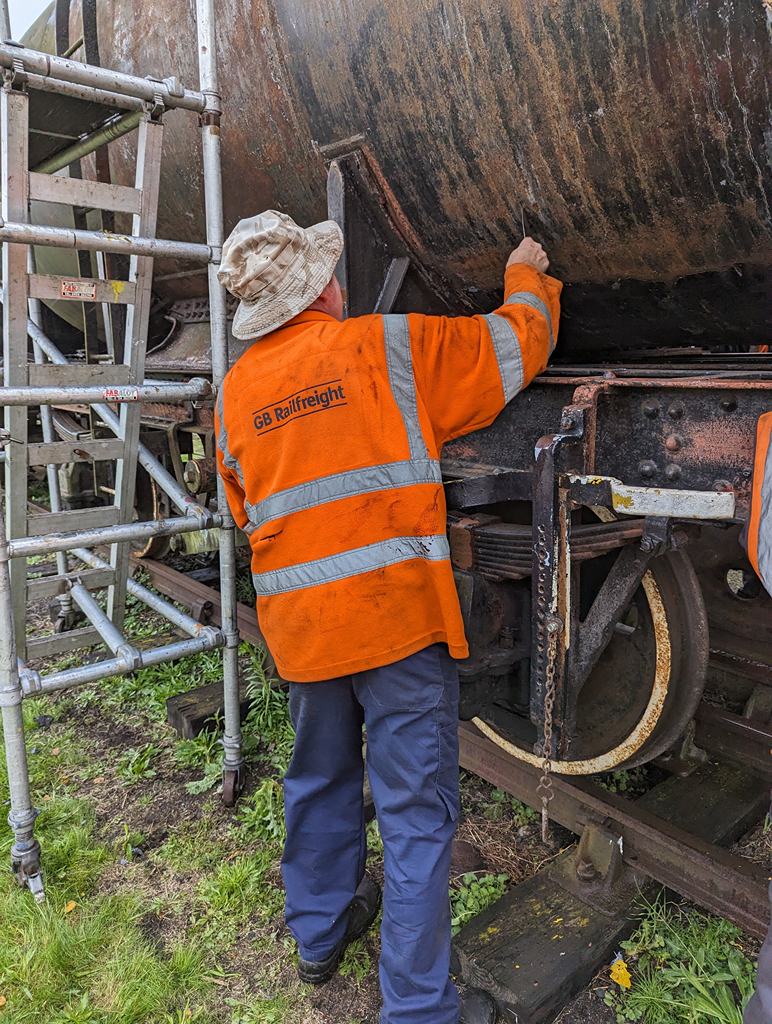

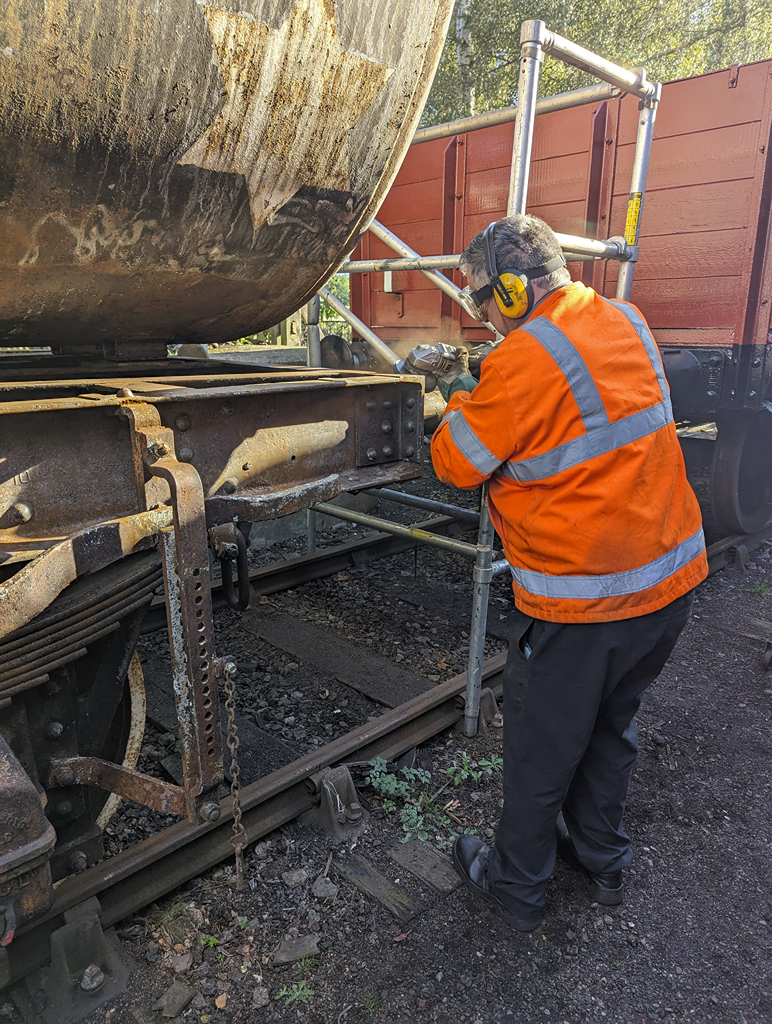

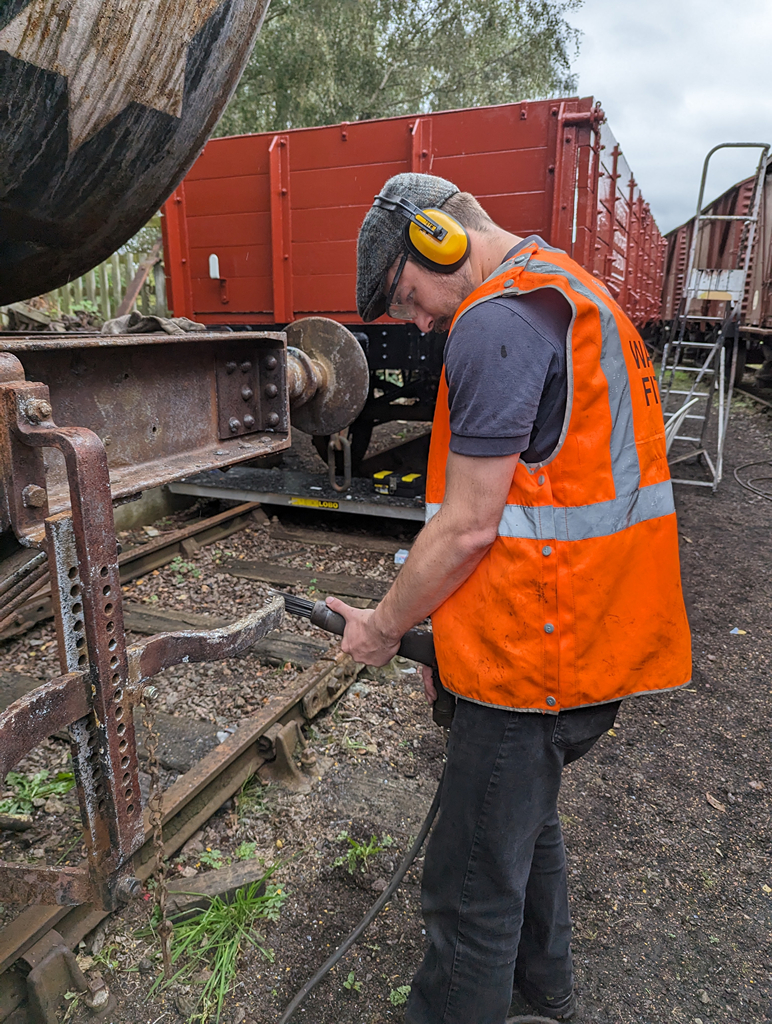

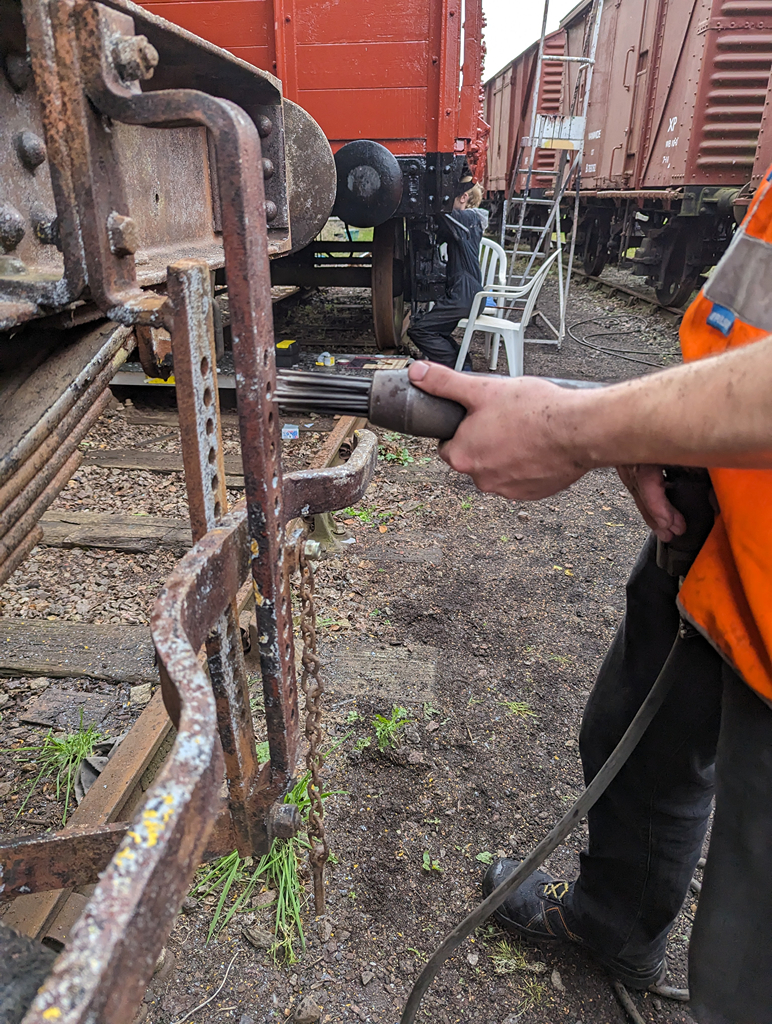

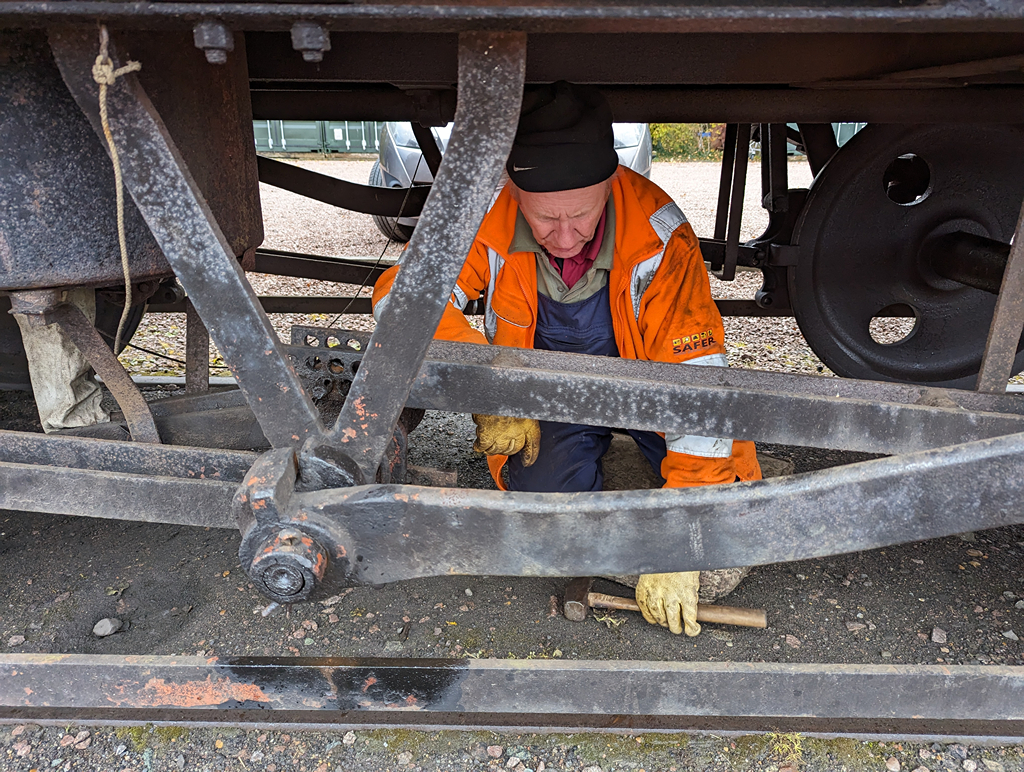

Barry then carried on with the needle gun, this time on the west side underframe and south headstock of A6090.

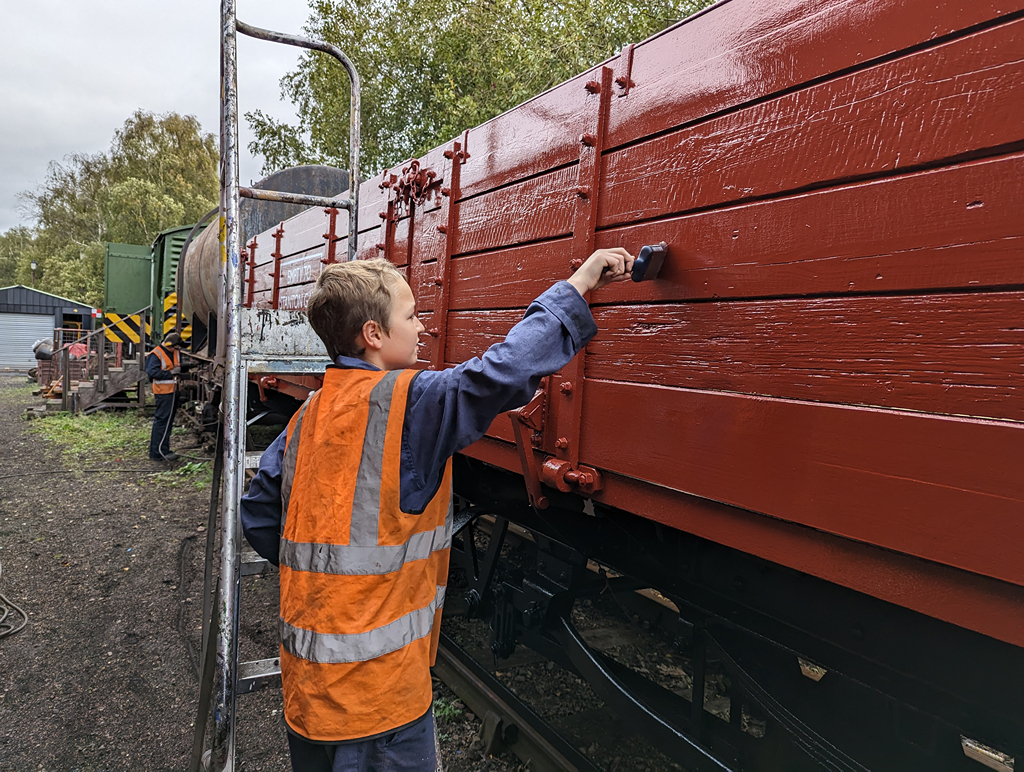

Sunday was a much warmer and, according to the forecast, drier day than Saturday so I bit the bullet and decided that today would be varnishing day. Mark, Oliver and Dan joined me in spreading some ‘Rothley Nectar’ over the bauxite paintwork on the Pipe

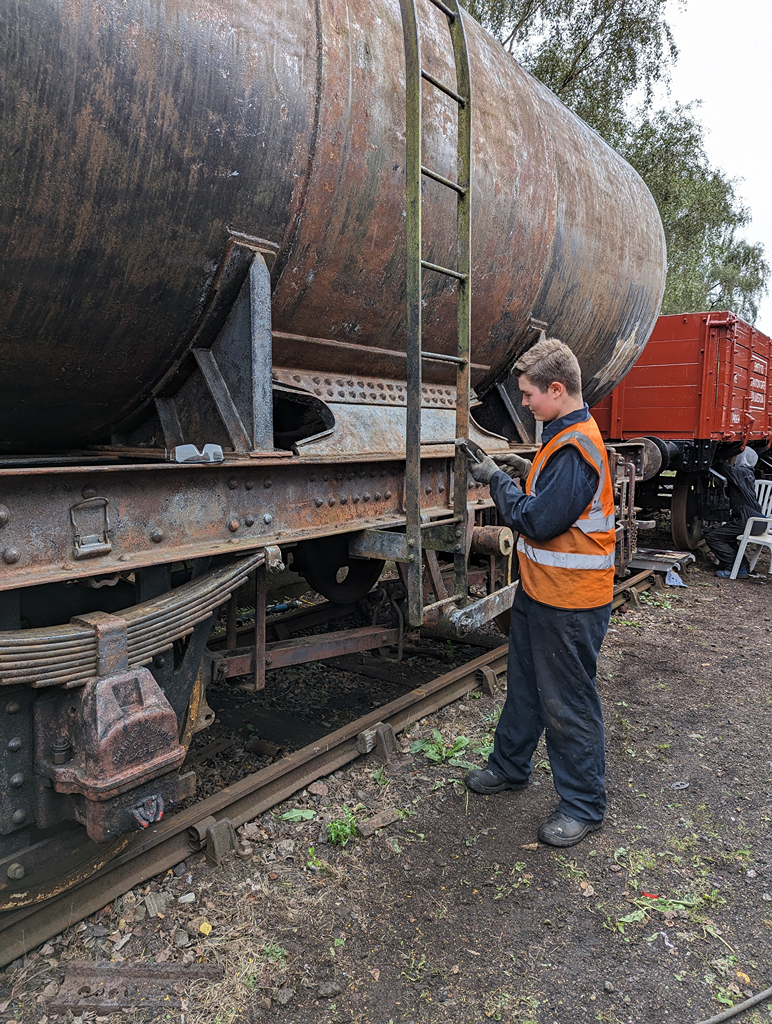

Tom carried on where Barry had left off with the West side underframe. Mark and I got in on the action once we’d finished varnishing.

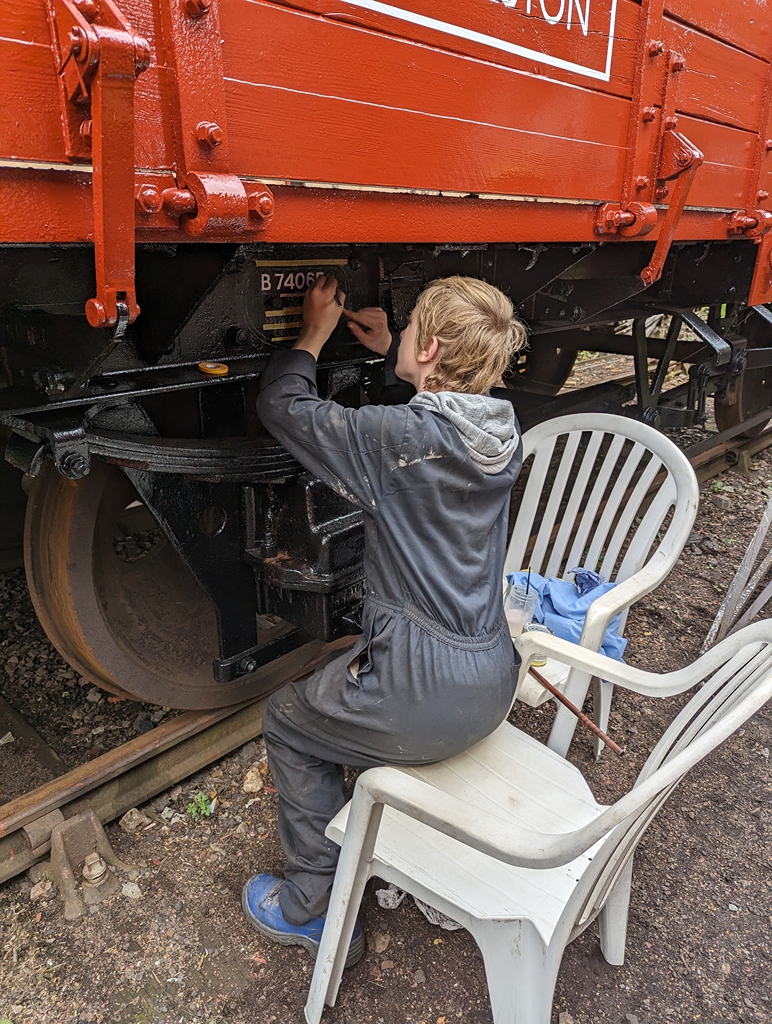

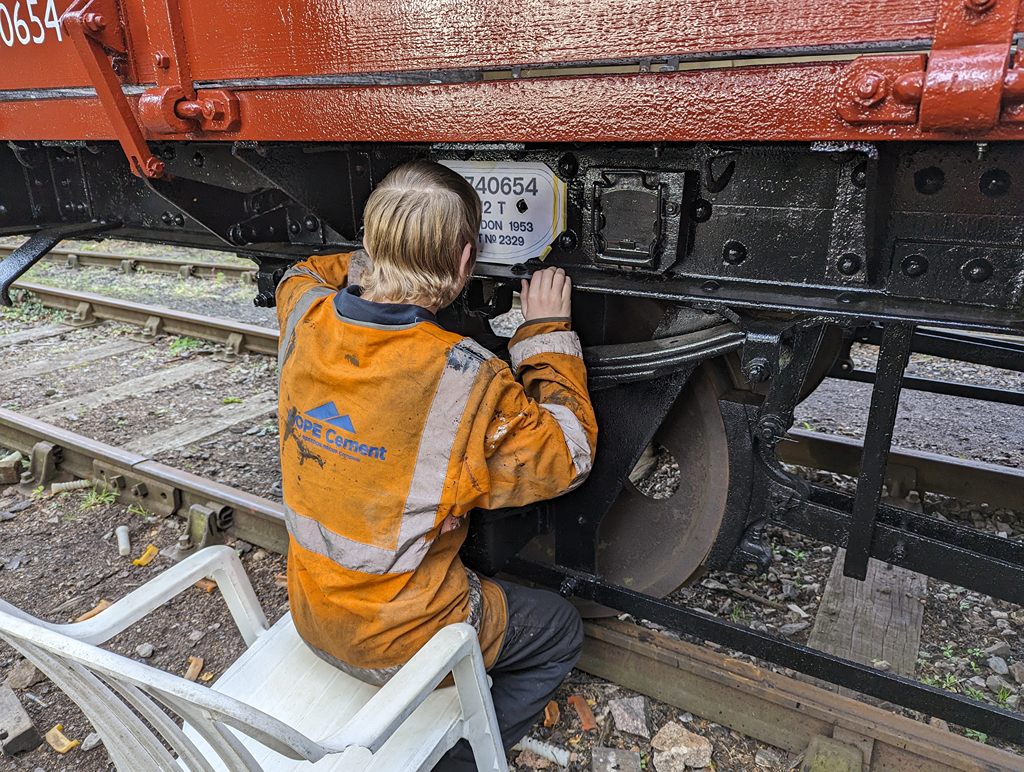

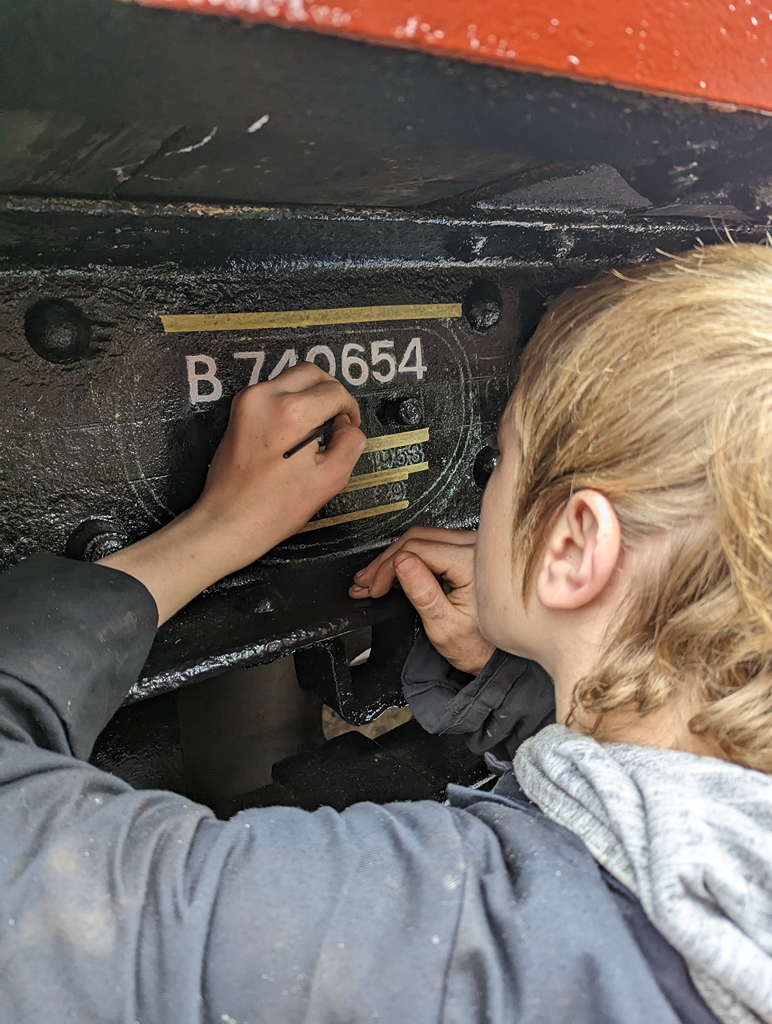

Dan had another go at signwriting, this time the wagon plate on the west side of the Pipe.

That wraps up the work undertaken this week. Next weekend is the Autumn Steam Gala, but we’ll be continuing the push on the tanks. See you again next week!

Hello everyone, here’s another weekend update from us at Quorn. Progress has continued on A6090 and the Pipe is very close to completion.

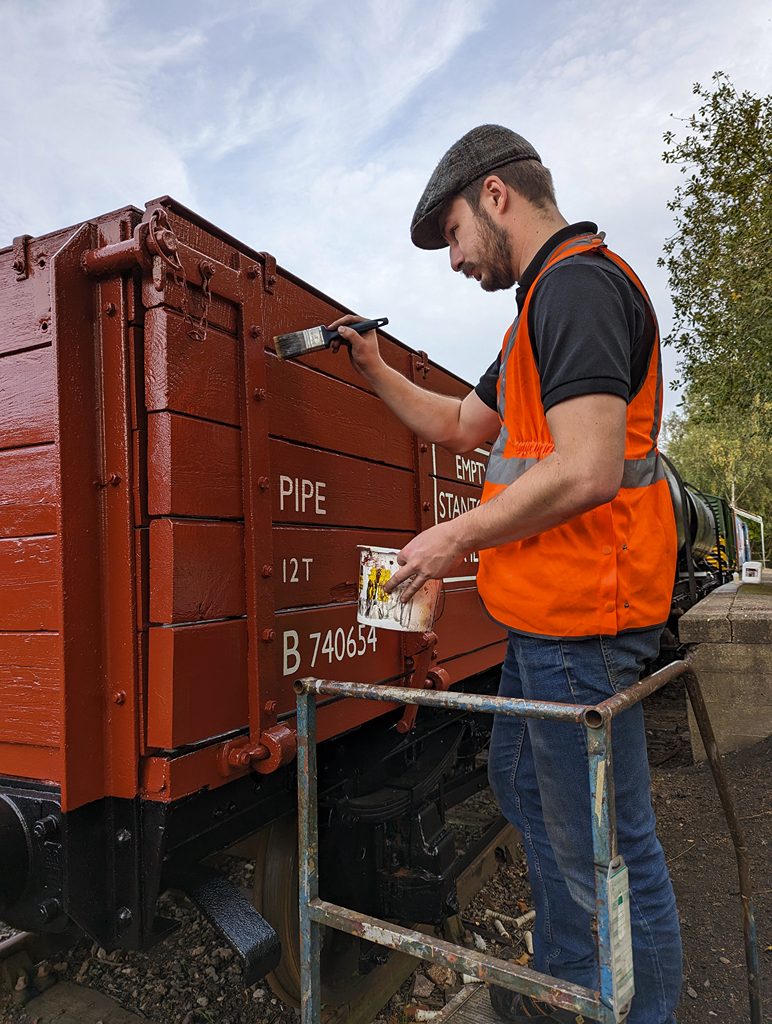

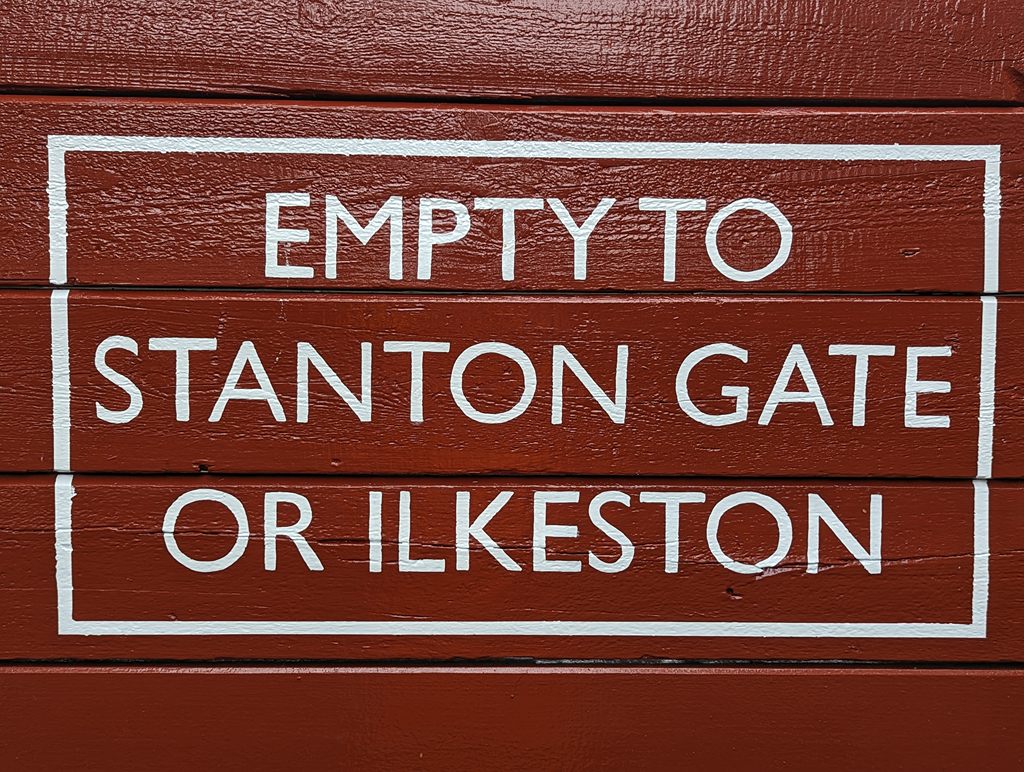

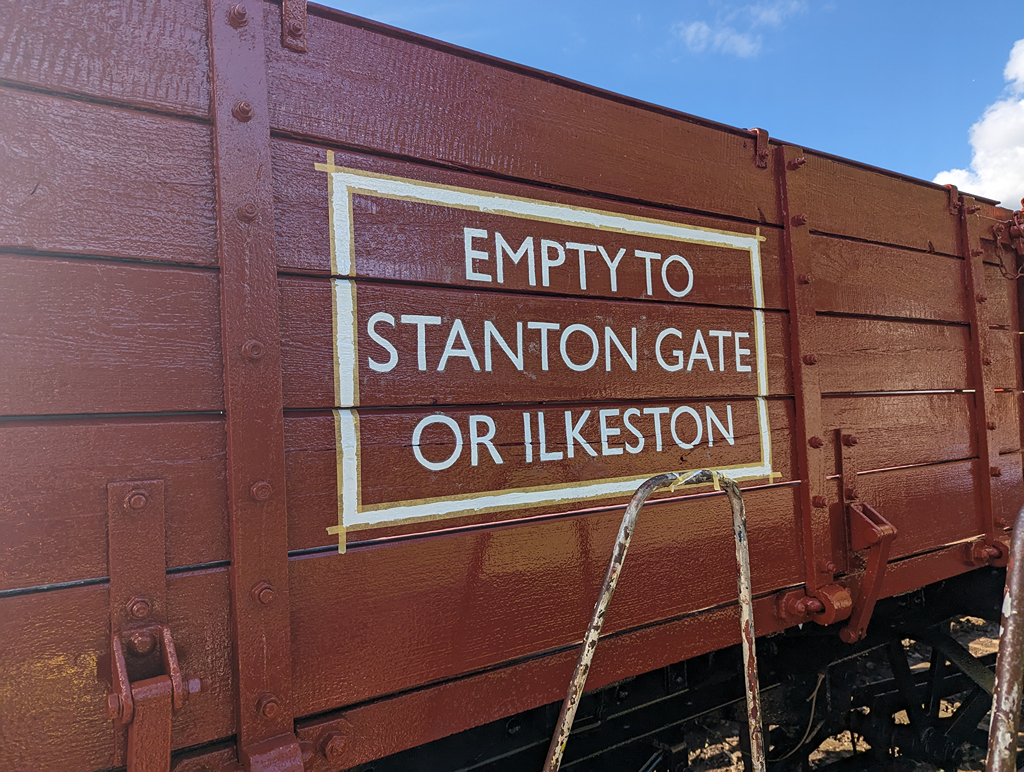

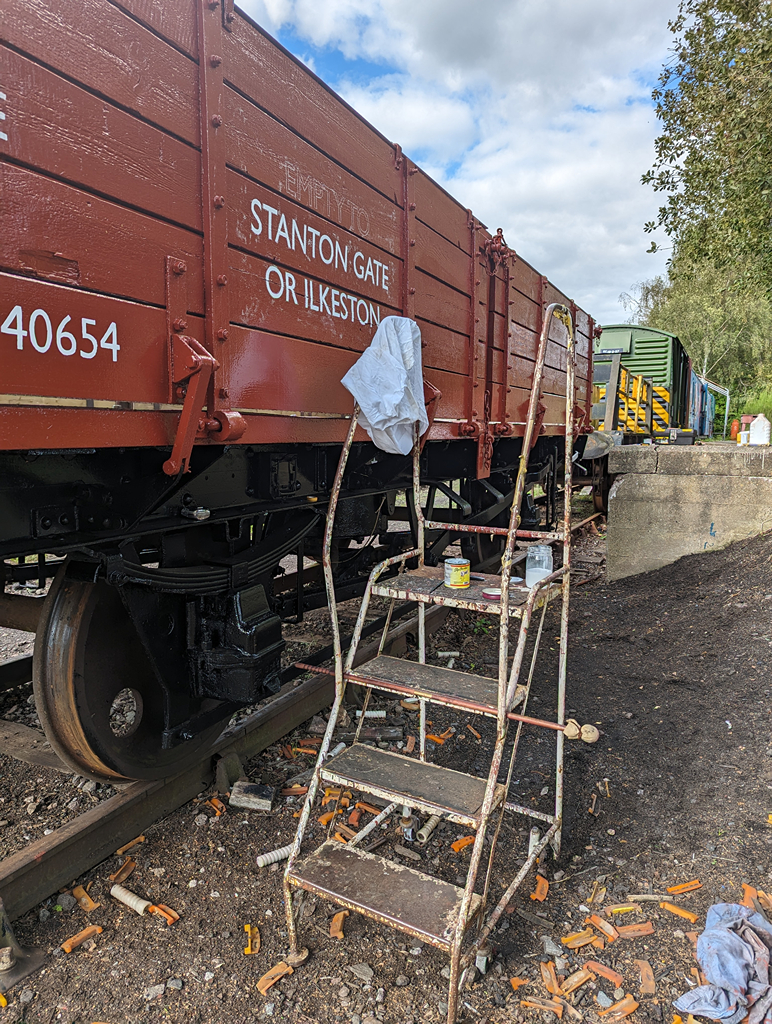

I concentrated on the remaining signwriting on the Pipe, completing the Empty to wording on the East side of the wagon.

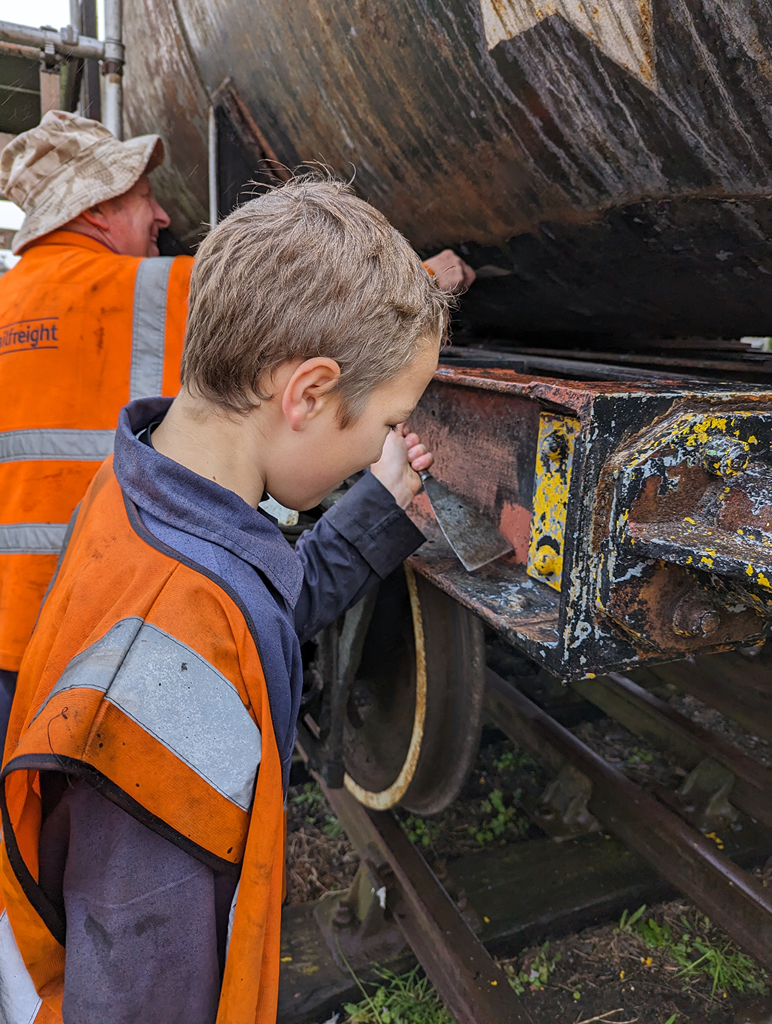

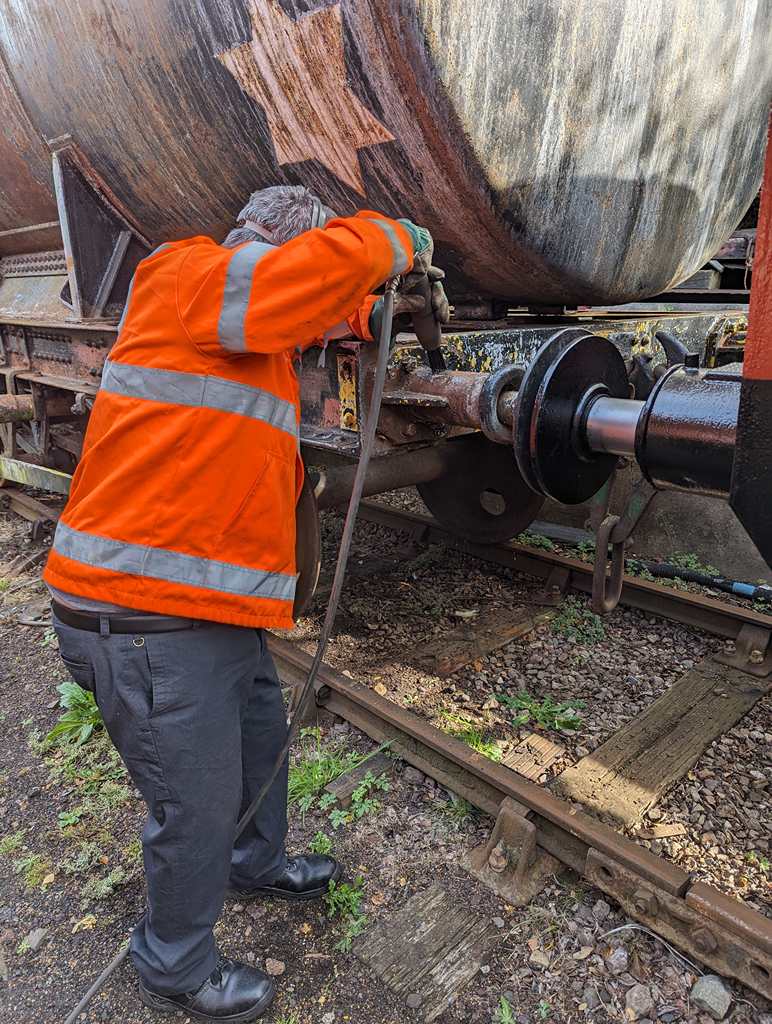

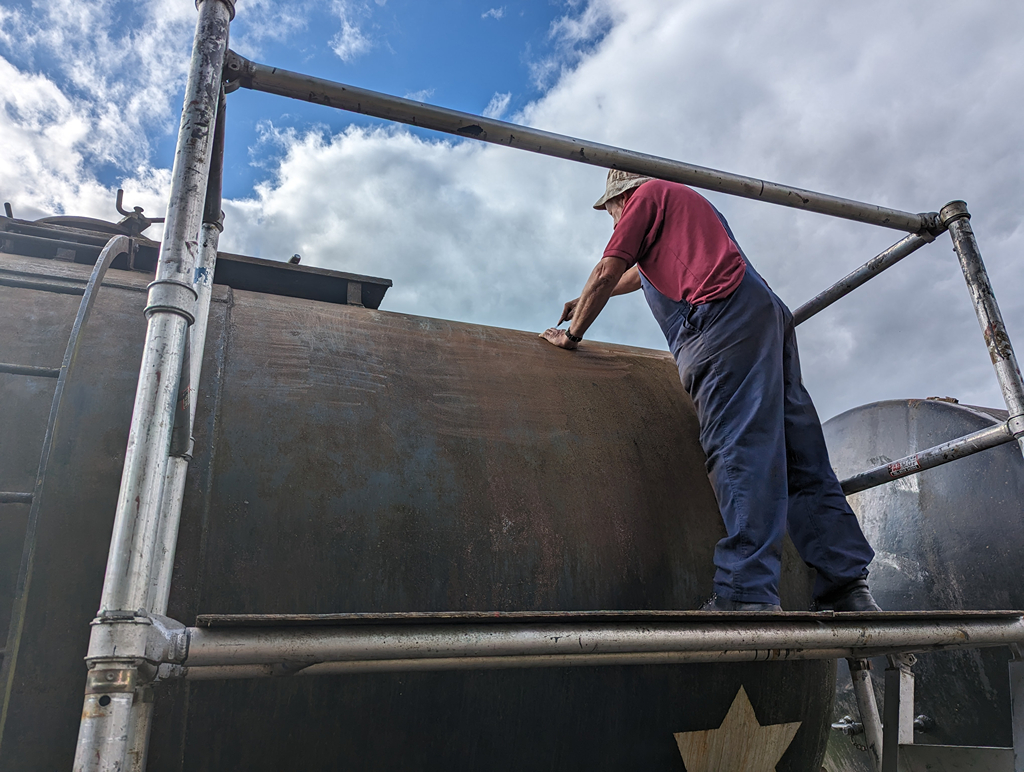

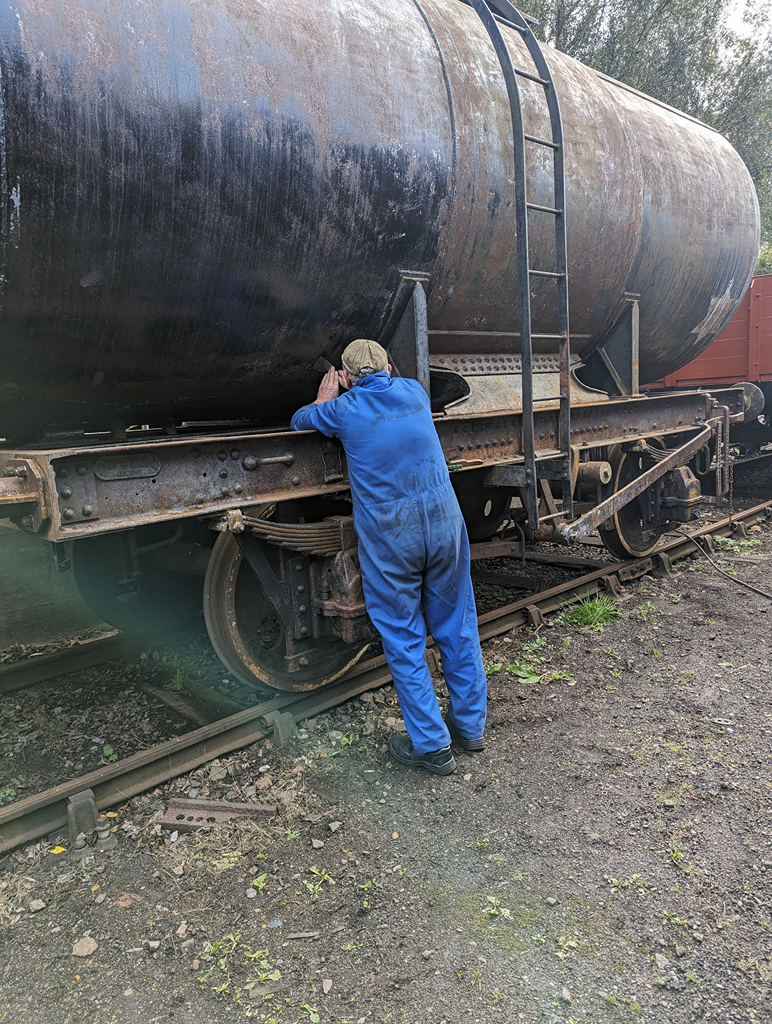

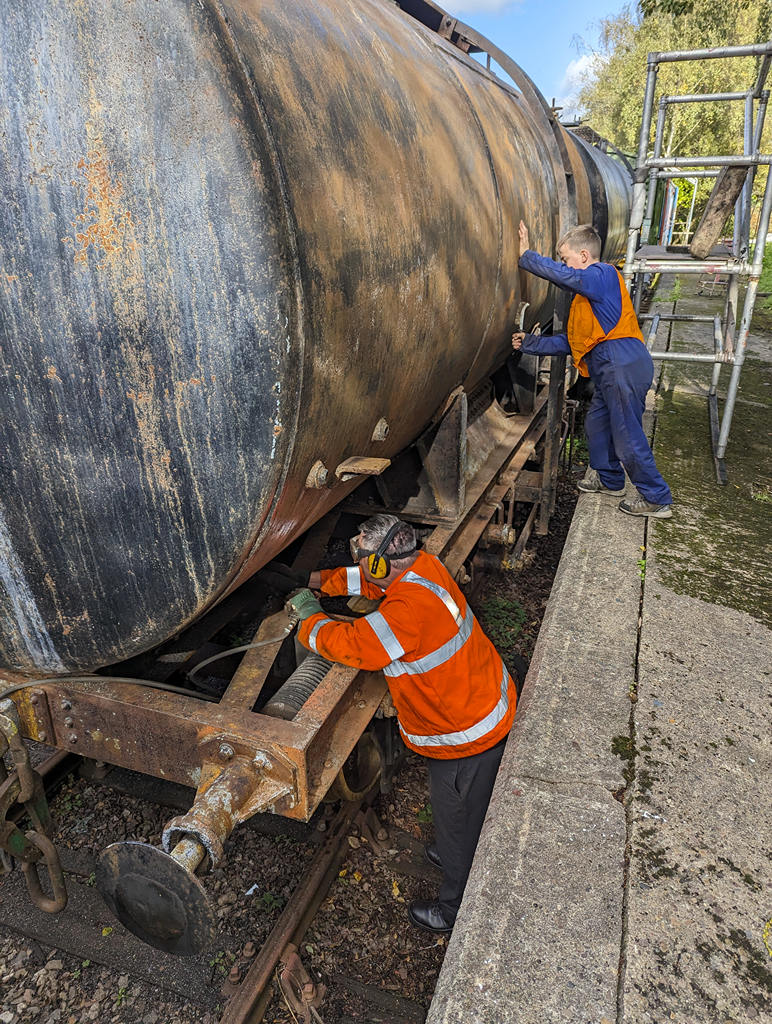

Nick concentrated on A6090, scraping the barrel of yet more paint trying to get to a stable layer. In places the old Shell/BP black and white livery was coming through so we’re getting down the layers now.

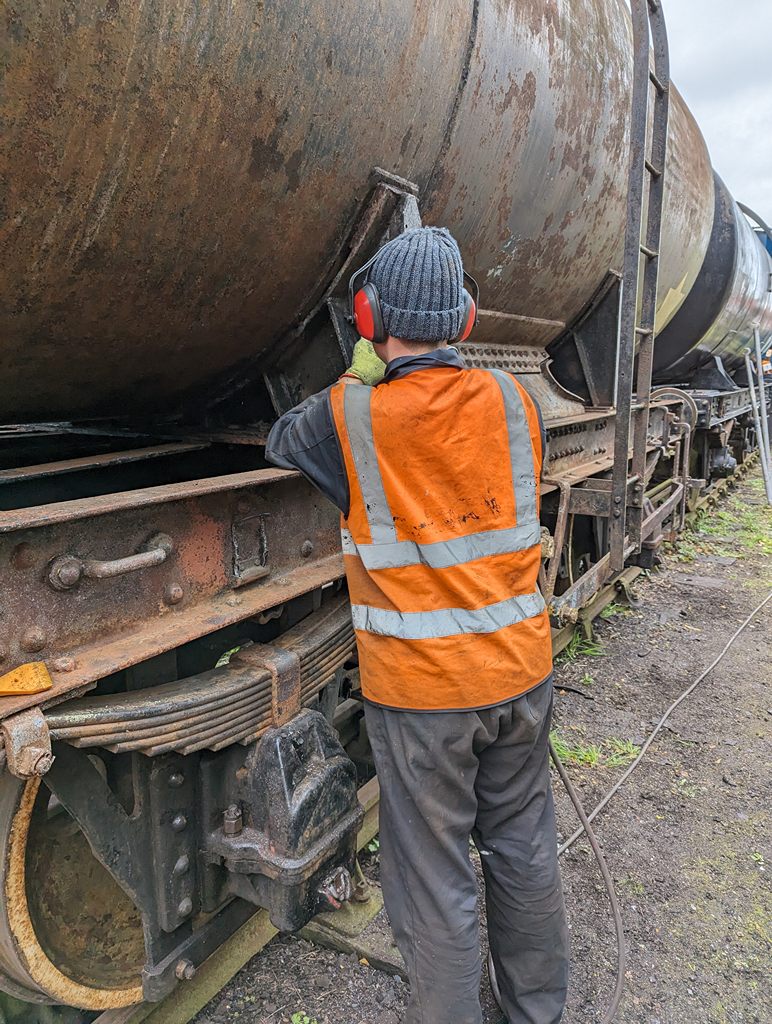

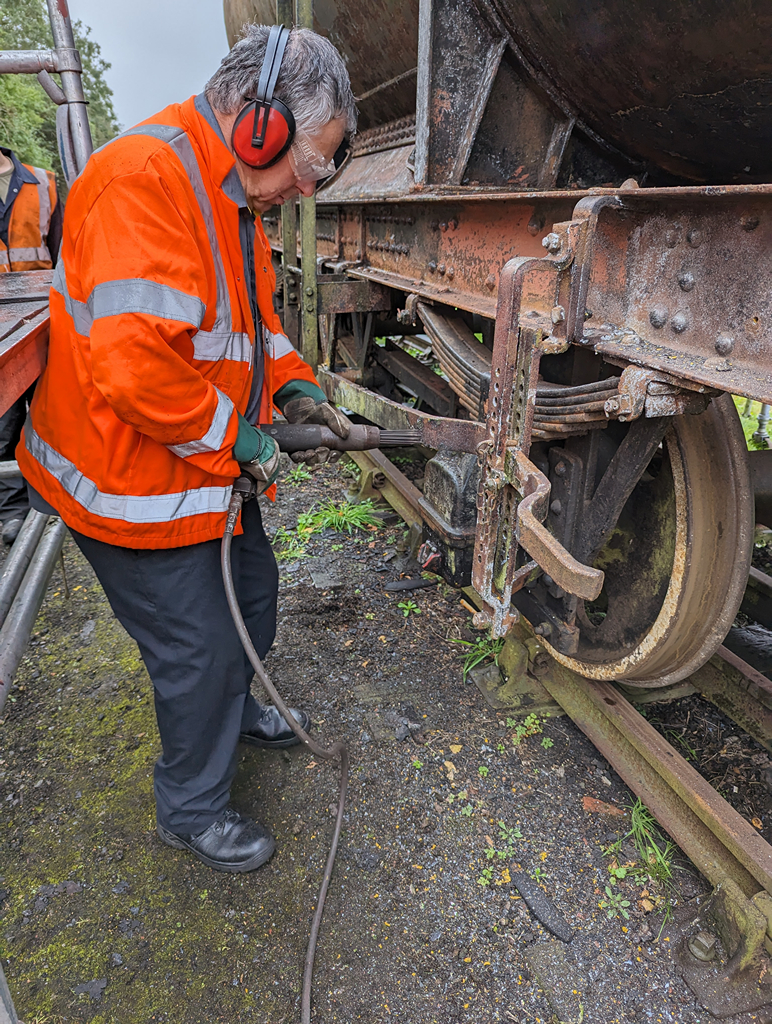

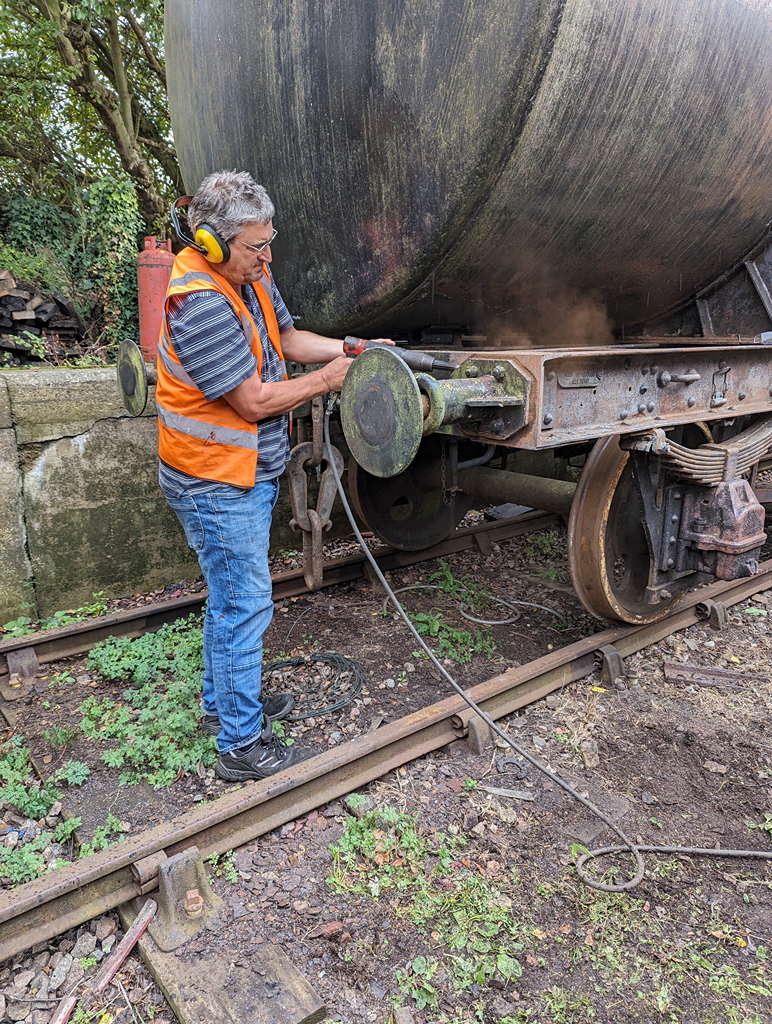

Barry, Tom and Oliver joined the push on A6090, with Tom and Barry using the needle gun and Oliver joining Nick on the scraper.

The weather sadly prevented any varnishing on the Pipe, so I ended up moving from one thing to another until the Hydrovane burst it’s compressed air feed hose. Barry helped me strip it down, and we’ll be sorting that between us for next weekend.

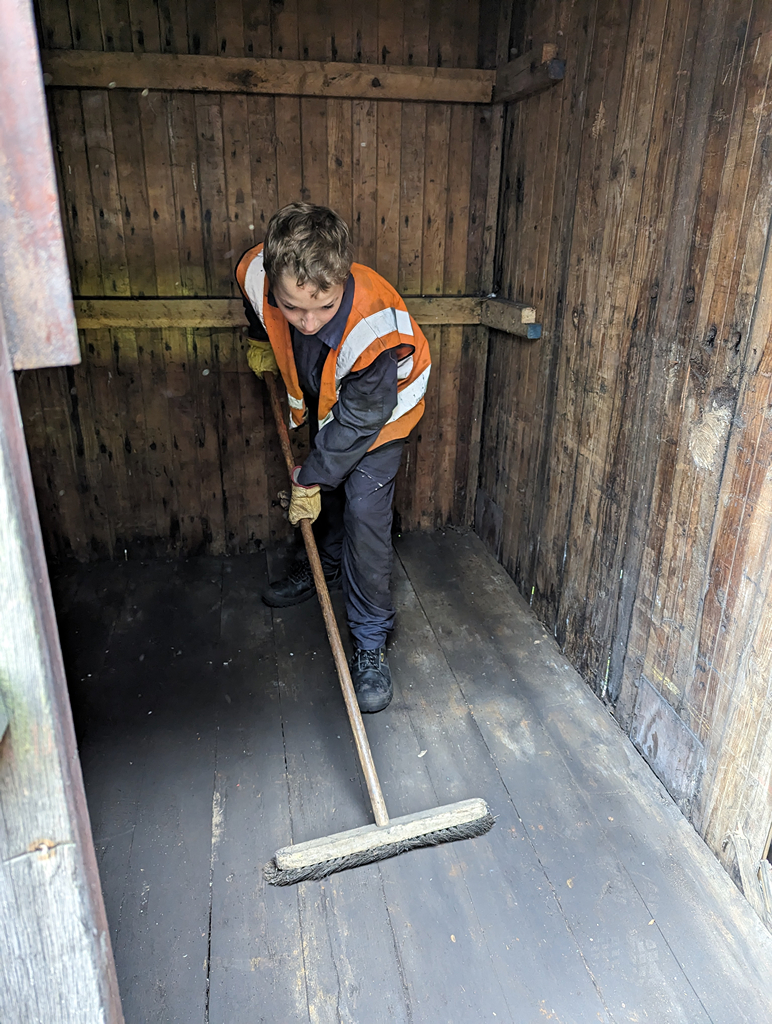

Oliver and I swept out the A type container to have a look at the floor, which aside from being poorly supported seems to be in okay condition.

Hopefully the weather is good enough to varnish the Pipe next weekend, but we’ll take whatever comes. Join us then and see what we get up to!

Hello everyone and welcome to another QWW update. For me, this weekend has been one of much signwriting, everyone else was concentrating on A6090.

Before that though, we continue to tidy up after Railways at Work, and with the van train back at Quorn, Nick and Charlie put the barrels back in the barrel van to protect them from the elements.

I made a start chalking up the Pipe for its signwriting, starting with the west side number panel. By the end of the day, the west side was complete barring a few words on the ‘Empty to’ wording.

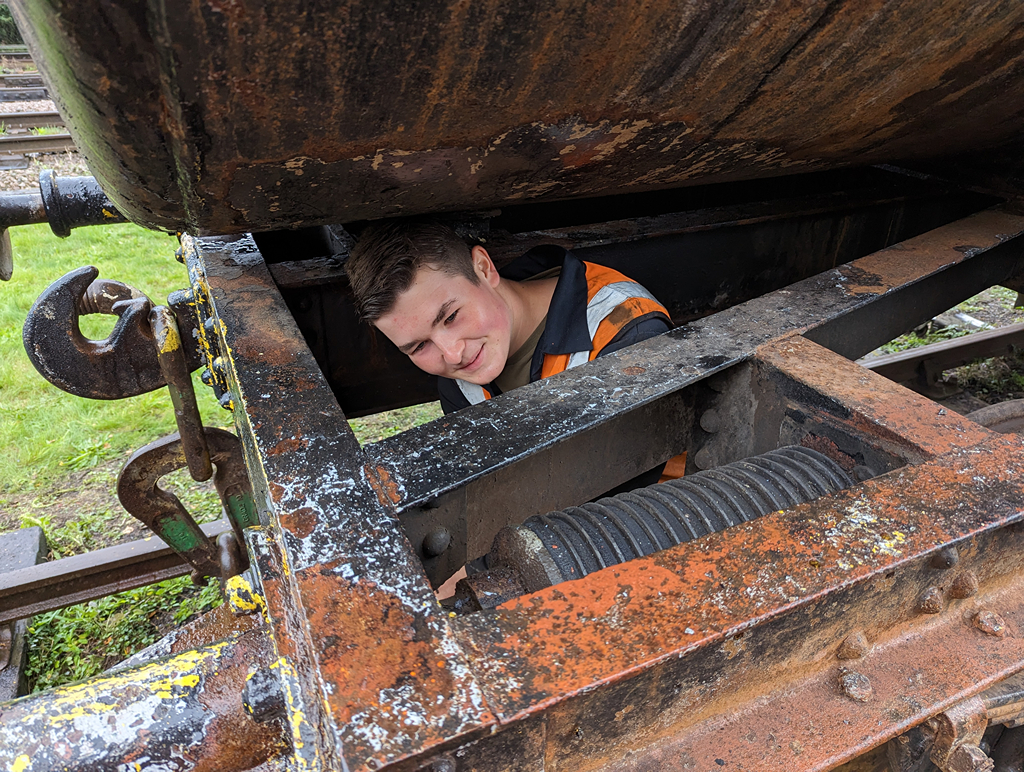

Nick, Richard, Mark and Dan sequestered themselves under and around A6090 to begin the big scraped down of the underframe. We think the paint on the tank has been affected by being stored in a tunnel as it was coming off it large chunks.

I with coffee in hand got an early start on Sunday picking up where I left off. I taped off the box for the branding and let a distracted Dan have a go at painting it

I moved to the east side to make a start there, assisted again by Dan who had a ago at the B of the number panel. This just leaves me with the branding to apply on the east side and both D plates.

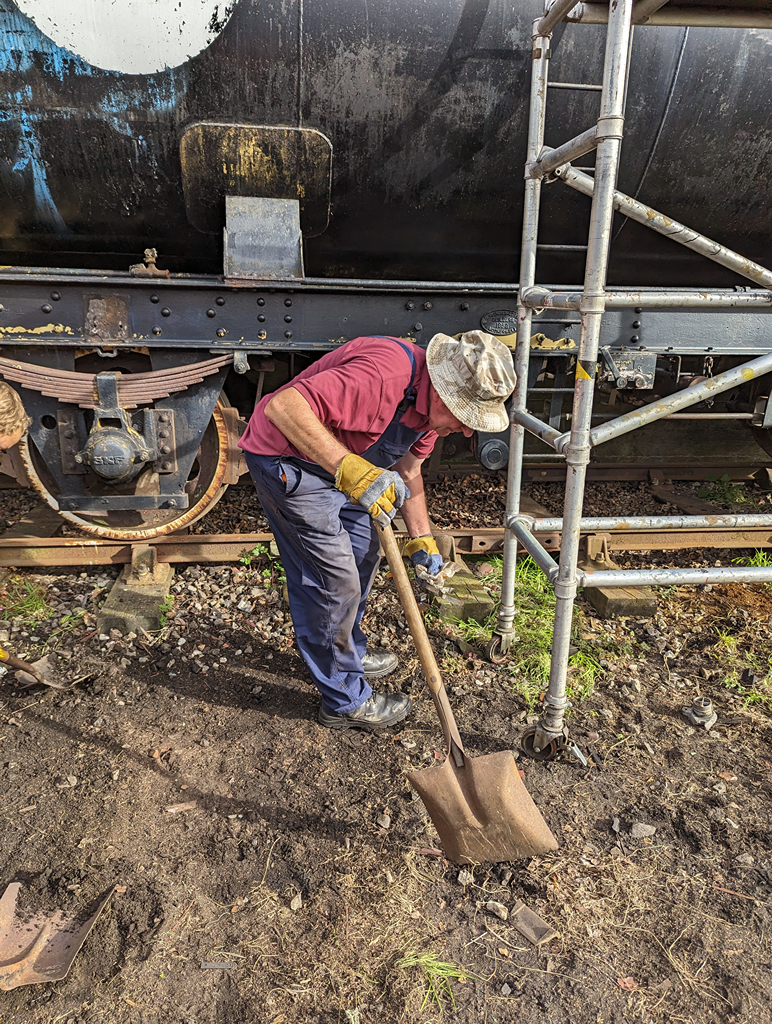

Nick and Richard continued to scrape the underframe of the tank, with most of what he scraped ending up in Nick’s boots.

The last job of the weekend was to have another crack at Hector’s wheel, which is now fixed, barring being inflated again, and maybe another lick of paint.

Thanks for reading, and see you again next week!

Good evening all, and welcome to another QWW update. This week despite the heat, we’ve fitted a vacuum throughpipe, tried to sort out a wheel and tyre for Hector and Andy is making more progress on the GUV.

Being the type of tank it is, A6090 was built unfitted. This is ordinarily fine, however most good trains at the GCR run with vacuum and without a throughpipe, this wagon is less likely to be used. Having recovered a complete throughpipe on his travels, Nick decided it would be put to use on the tank.

Nick assisted by Tom and Mark, first removed one swan-neck from the pipe. The pipe measured at nigh on 15ft, which made it too short initially for the underframe. Removing the swan-neck will allow us to extend the pipe, but more on that later.

The pipe was hung underneath the wagon in its approximate route down the inner solebars with large cable ties. Borrowing the magnetic mount drill from Rothley, Barry, Tom and I drilled holes in the underframe to accept the pipe clamps to hold the pipe to the wagon.

Jamie at Carriage and Wagon very kindly whipped us up a 2ft6in length of pipe to screw onto the rest of the throughpipe, leaving us to thread one end of it and assemble the complete pipe. (Thanks Jamie!)

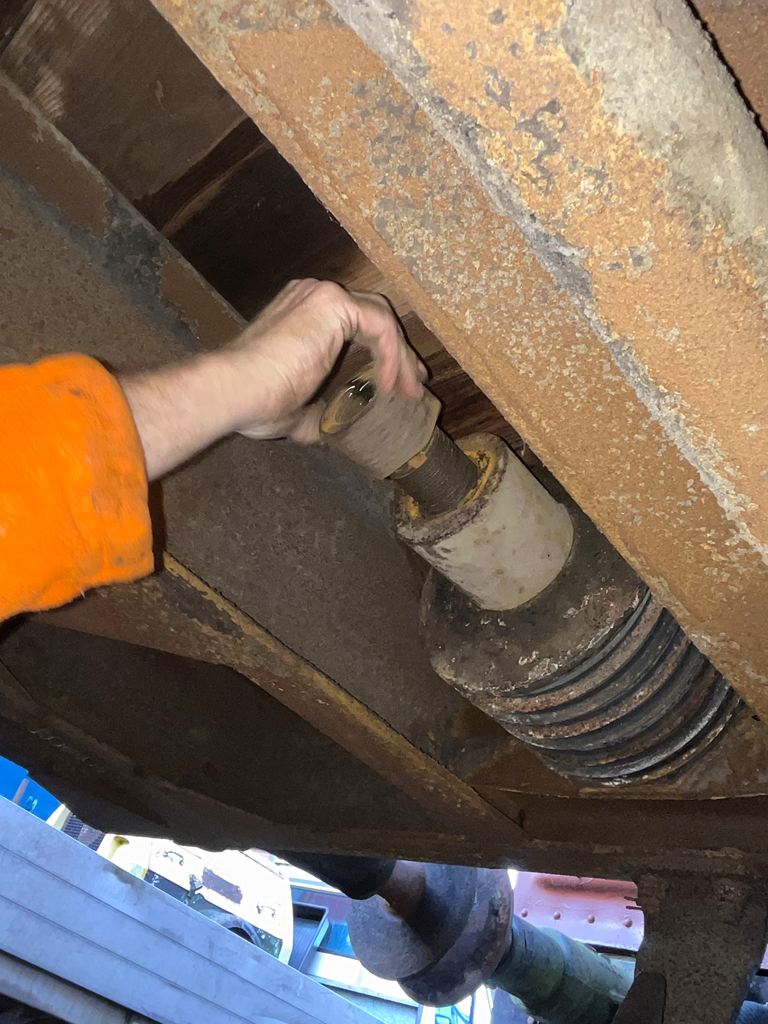

Back under the wagon, the straight coupler was fitted using plenty of jointing compound, tightened up then the extension piece screwed into the coupler. The swan-neck was fitted, again with plenty of jointing compound.

This is when the heavens opened, so we made a quick effort to tidy everything up and hide! The rest of the day were to tidy up around the yard, and take Danny for a skip run.

Andy has spent a bit more time this weekend filling the GUV in the attempt to smarten it up, we’ll soon be progressing to a coat of paint for it livery yet to be decided.

Last week, Dave had spotted the Hector had a flat tyre and was leaning over in the garage. This week, I attempted to re-inflate it but to no avail. Barry and I separated the rim to discover a small hole in the inner tube. A spare was fitted but we struggled to get the locking ring back into the rims, so we admitted defeat this weekend and will have a rethink.

I think that is everything this week, next week we are hoping for slightly cooler weather so we can continue with the Pipe and get that over the line. There will also be a vacuum leak of test to do for A6090. Join us then and thank you for reading.

Hello everyone and welcome to another Quorn Wagon & Wagon update. This week we’ve painted the pipe into it’s gloss coat and have prepared for next weekend with the Test Car opening and progress other smaller jobs.

During the week, Nick and the lads primed and undercoated the east side doors and painted the underframe all round the wagon in black gloss, which looks really smart.

Come the weekend, Dave assisted by Thomas and Tom tidied the inside of the Test Car, even scraping the flaking paint from the generator compartment roof to then give it a fresh coat of white primer.

New volunteer Barry (welcome Barry!) gave the outside and quick hose down which also helped to smarten the coach up a bit.

Nick, Dan, Mark and Thomas continued painting the underframe of the Pipe, concentrating on the lower west side and the head stocks.

With the Pipe underframe finished, Nick and Mark went to look at tank A6090 to remove the last parts of the fuel dispensing system, which I ended up being roped into. The outfeed pipe on this wagon now looks more as it should, and there is one final job to do before the scrape and paint.

On sunday, the weather held us up putting the gloss on the Pipe, so Thomas painted the generator room door in Pearl Grey.

In the afternoon there was a gap in the clouds, so Nick and Thomas went for the bauxite for the Pipe. Each started with an end and then Nick got carried away and started down one side.

Monday was a much nicer day, so most people got stuck into the Pipe, though Dave and Barry did some odd jobs like pumping up the road vehicle tyres and re-shuffling them after Railways at Work.

After the last few bits of bauxite gloss was applied to the PipeNick moved onto details on the wagon, those being the usual swan-necks, hand brake ends and lamp brackets while the lads painted the inside of the wagon with some wood preserver as an experiment. Dave also got a chance to start the signwriting, applying the vacuum relase chord stars and assembling the templates for the bodyside writing.

The last job for the team was to repair some of our wooden steps ready for opening up the Test Car at the diesel gala.

Andy and Harry have started work on the GUV, as it’s been looking quite tired for some time now. I spent most of the weekend replacing the fluorescent tubes in the GUV with LED replacement units. 6 down, 4 to go! I also replaced the cracked beacon on Hector with a replacement

That about wraps things up for this bank holiday weekend. Next weekend is the Diesel gala, and as I’m sure I’ve mentioned the Test Car will be open to visitors in the yard so do come down and see us. We’ll be open from 10-4 Friday until Sunday. Thanks for reading!

Hello everyone! I’ll start off with a reminder about next weekend’s Railways at Work Gala, full details are on the GCR WebPage here. We’re all looking forward to it, and you’ll see some of us dressed up taking part in the action.

This week, we’ve done some odd jobs and put the last two planks in the Pipe. Tom, Dan, Oliver and Charlie along with Nick were on site on Tuesday carrying on with the Pipe, neddle gunning the east side and priming the metal work. They also found a broken brake block carrier on 3777 and oiled its brake rigging.

Nick went to fetch these from Harlows on Saturday morning, Dave started applying Kiki’s new identity, which can be seen in its entireity next weekend.

Thomas, Nick and I removed the 2 old planks from the East side, ready for the new planks to be dropped in and checked for size. Nick and Thomas also finished off the scraping of the underframe.

The plank was cut down in length and then run through our thicknesser to skim a few millimetres from the planks to remove some machining marks.

The planks were then dry fitted and drilled. The planks were removed and the painted into primer in the GUV.

The changable weather over the weekend has changed plans a little, so instead of fitting the planks first off, we took the opportunity to paint both new planks into undercoat.

Thomas paid some last attentions to 5209, picking out the red lettering on the bearing caps afterwhich he got the undercoat out and painted both ends of the Pipe.

At our event, Dave noticed that the hand brake rack on 3436 is slightly twisted on one side. This was improved with a tickle from the sledgehammer.

Our final act was to drop the 2 painted planks into the Pipe, which went well haing been pre-drilled and prepped.

That wraps up this weekend’s activities, if you can do pop down next weekend and see the event unfold, we’ll try and get some covert pictures through out the day too.

Cheers, Ross
