12/01/20 – The living van saga continues

Even though ADB977107 is our priority at Rothley, time was taken to pop into Quorn to continue investigating the contactor fault on the test car a way forward is being planned.

The main reason for the stop at Quorn was to prepare the van train for next week’s photo charters and of course the winter gala. Trade Posters, wagon labels and chalked destinations being applied.

Back to Rothley and the Southernmost Mess room and Kitchen windows corridor side were removed to allow more body repairs.

Another task we have begun is to make the vehicle a little more user-friendly specifically for those of us who stay over on occasion. During the vehicles’ original conversion there were no provisions for modern electrical devices, as these have become a part of everyday life and to increase versatility we have started fitting sockets around the vehicle. Included in this scheme is a shelf in the bunk room to store such modern devices.

During the week I purchased some paint colour matched to the Formica, the first coat was applied to the areas of ply applied last week.

The final task for Saturday was the removal of paint that had been applied to the glass of the guards’ compartment.

On to Sunday and we were joined by Jamie from the GC C&W department. His focus was the window bottoms of the two removed above. New steelwork was cut and welded.

As welding was complete the windows were refitted. As well as new lower panels under the southernmost mess room window which had its first coat of Formica orange applied. As the paint was out second coats were applied to the bunk room and northernmost mess room window as well as chips, cracks and bare bolt heads in the Toilet, Mess room, and Kitchen

Further sockets were fitted under the messroom table and Jamie’s final task was the removal of rivets to allow access to the northern luggage area corridor window, his next area for welding.

Still a fair way to go but things are starting to piece together and the end is beginning to come into sight.

12 January 2020

05/01/20 – Post Christmas Working

With the Christmas holidays still in effect work continues. Although Monday was rather lucrative with a trip to the Llangollen Railway but more on this in a future update.

So Tuesday (New Year’s eve if you prefer) Nick, Matt, and Dave in attendance and work continues on ADB977107. The Guards compartment ceiling was progressed as well as the roof repairs.

Wednesday, Nick, Matt and Jake with Roof vents and repairs sealed as well as previous repair patches and rain strips

The tank filler that had detached from the north end was refitted with a new piece of hose

Finally, for Wednesday, a tale of hinges, Due to a lack of right-hand door hinges the north most luggage door top body side hinge was actually fitted with a lower hinge. This was rectified by using a modified door side hinge although as part of the task the GCRs collection of hinges was also sorted and paired up.

Thursday and Nick and Dave with Jamie from C&W. Jamie continued with welding concentrating on the removed window areas.

The Guards ceiling was completed as well as a few areas on the side walls.

Once the welding was complete the First Class door was fitted as well as new packing wood for the window bottoms.

Friday, Nick and Jake fitted the windows to Thursdays repaired areas.

Saturday, and for once back at Quorn. Nick, Matt, Dave, James, Eddie, Harry, Jack and I in attendance. Dave and I kicked off by taking a look at the generator feed contactor for Test Car 2. The contactor clicks in when the button is pressed but doesn’t latch as it had previously. Unfortunately, without a wiring diagram, it’s tricky to fault find the cause of the problem but we shall put the feelers out for assistance where we can find it with the bespoke system. Nick, James and I had a brief trip to Rothley to check on supplies and returned with some more items that can be back at Quorn.

Once back at Quorn, I took a look at the vacuum system on the Iron Ore Tippler. It is fitted with a 21″ and a 15″ cylinder with an empty and loaded changeover lever. As the wagon will never be loaded, and to remove complications, I have directly piped to the 15″ and removed, overhauled and refitted the release valve. This was subsequently tested and failed. The next step for this cylinder is an overhaul.

Nick and Eddie prepped some more vacuum hoses for fitment while James and Harry began scraping the wagons in the yard, getting them ready for paint when the weather turns.

The main focus for Matt, Jack and Dave was Madge, the Scammell Scarab. The roof-mounted indicators, which were requested by the RAF but not by BR, were removed. The fuel and vacuum tank that was painted crimson were painted black as per BR specifications and she was given the opportunity to meet 45305 and have a little run around the yard.

[wpvideo XaZKtULT]

Sunday’s work concentrated back on ADB977107 at Rothley. Nick and I began by focusing on the south end interior paneling with required removal prior to welding. The end sheet steel has been tacked into place, but now requires seam welding. I took one of the ceiling panels out to the workbench to have the frame strengthened and the plywood panel fixed back to it.

Matt started by sorting and tidying the bedroom, throwing out all the old clothes and detritus and making all the beds. Where the heaters had been removed, the paneling was removed and thrown out upon conversion. Matt manufactured some more and I fixed some timber battens to the Z irons for Matt to fix things too.

I had Jake on a wild goose chase for most of the day. To get the wiring to the thermostat in the saloon, I wanted to follow the existing wiring run through the conduit at head level in the bedroom and main saloon. As the toilet ceiling is lower than that of the saloons, the wiring runs above the toilet ceiling. I had Jake remove the trim pieces and remove the screws to drop the ceiling. Sadly, the ceiling is impossible to remove without stripping most of the toilet down further, so an alternative route will have to be used. On the plus side, an alternative heater has been found for the bedroom instead of the two underbed heaters. it is felt that a stand-alone heater rather than ones under the bunk will be safer.

Nick finished the day by blanking off the fresh air intakes for the now removed gas heaters from underneath the coach. I think that wraps up this update, so thanks for reading and join us again next week, where we will be continuing to work on the Yellow Coach.

5 January 2020

01/01/20 – End of year review.

So 2019 has come to an end, time for the statistics.

14 Vacuum Cylinders
9 defect book holders
8 conflat chains
8 coach doors
4 periscope roof repairs
3 sheet hoops
3 open days
3 magazine mentions
2 Containers
2 sliding door
2 roof paints
2 first aid kits
2 award nominations
1 award
1 hood
1 Toolbox
1 Buckeye
1 Dave Bower
1 floor
1 Brake actuating arm
1 hydrovane
1 mobile toilet
1 generator
1 slip coupling
1 Scammell Scarab
-1 Dace

So what have we completed?
Test Car 2, of course, took up a large proportion of our time but was worth it. This years overhauled vehicles are shown below.

20190921_154319 20190422_171018 20190522_163503 20190522_163443 20190705_120534 20191228_103507

1 January 2020

29/12/19 – It’s Christmas

So with the Christmas period upon us, it’s no excuse to hold back. Monday, Nick and I in attendance. Nick applied sealant to the Midland and Southern Brake vans this completes the Overhaul of the van trains brake system and we await a full brake test of the rake, later in this update.

I began the final tasks on Container BD4303B filling holes with foam. and applying a layer of fiberglass to each. Nick applying heat to cure each once the resin was applied.

To complete Monday’s activities I manufactured sand red oxided the missing fork protectors that sit under each of the side doors.

Tuesday or as most seem to know it as Christmas Eve. Nick and I again, continuing with Nicks Container. Filler applied to the fiberglassed areas.

Nick applied heat to reduce the cure time and allowed me to sand the areas.

Once sanded fiberglass primer was applied followed by undercoat again heat applied to assist the drying of the paint.

Once the paint was sufficiently dried we riveted the fork protectors under the side doors and applied undercoat.

Finally for Tuesday an unusual perspective from inside the container.

Wednesday was of cause set aside for other duties with no one on-site. Back to normal on Thursday as we made up a few spare vacuum hoses in preparation for a brake test of the van train on Friday. But the weather didn’t play ball so the rest of the day was spent Signwriting “Madge” the Scarab. No images yet we are building the suspense.

On to Friday and we begin at Rothley, assisting Jamie from the C&W staff welding up the south end of ADB977107

Friday’s main task was the scheduled brake test of the van train. 15 Bauxite Vans, 1 Conflat, 1 Fish van, and 2 Brake vans. Our motive power was once again provided by the Heavy Tractor Group’s 37714. The test was a success, with 19.5 – 20 inHg shown on the 19th vehicle.

Harry and Eddie were also in attendance and made an excellent job finishing the clean of the Yellow Coaches kitchen as well as the office.

Saturday and the full gang in attendance, first job with a favorable temperature was to apply the final topcoat of crimson to the previously repaired areas and folk protectors on BD4303B.

Once we completed the container we did a few items on QW6128E namely painting the engine and wheel hubs. We then moved up the line to Rothley.

My first job was to secure the table in the office. The previous image above it is just perched on the cabinet. The cabinet was secured to the window frame and two locating blocks for the table.

Dave’s attention was on the ceiling of the Guards compartment which had been damaged by water ingress. The remains of the old ceiling were removed, new baton affixed and were possible the previous ceiling panels reused. Those that could not were either replaced or trimmed to be used elsewhere. I went on to the roof to find the source of the leaks although I had a really good idea. As suspected the blanked off periscope holes were the culprits. I removed them but during its departmental conversion, the 110v feed was placed over one of the repair plates, this will need dismantling to ensure a good repair can be carried out.

At the moment the main coach feed is via the 110v inter carriage supply, Ross is looking at manufacturing a new 240v lead that will supply the main shore supply input.

Nick and Jake acted as the odd job men. Holding, finding and assisting where possible. The other tasks complete were a backing piece for the previously created access hatch. Fitment of a lighting control panel, moving the detonator storage and fitting a coat hooks.

On to Sunday and the final segment for this bumper addition. Priority being the electrics. As mentioned above the 110v distribution box was placed over the area I need to carry out a roof repair. The first job ensure the coach can be powered from the shore supply point, this has never been done whilst the vehicle has been on the GCR. Ross completed the new cable, all the fuses were removed and the plug fitted. The power was applied and no issues. The first fuse to go in was the main supply fuse and pop, the coach tripped. This also happened when we initially tried Test Car 2 the solution was to feed the other side so we did and this time no trip. We systematically replaced the fuses and all came online correctly apart from the shore supply applied lights. A quick check of the bulbs and both were blown. A quick trip to B&Q, new bulbs and for the first time since at least 2010 the lights came on.

With the coach now powered from an alternative supply, we went on to the roof and the 110v cables were disconnected from each end isolating the roof and vehicle end conduits. This will allow us to make a full weather tight repair to the roof however the cables and conduit will be sealed and left in place and if the needs arises a new hole can be cut and the 110v reinstated.

Whilst up on the roof, the areas for repair were cleaned up and red oxided and the repair plates cut to size by Nick and visiting us from the Mid Hants Railway Wagon Group, Dillon has known Nick for many years and assisted Nick when he first started to collect wagons.

Ross tidied the now redundant cables, we also got the NRN radio to power up although with the network ceasing to operate on the 12/12/15 we couldn’t locate it.

Other tasks included fitting the sawdust bin and chock stowage to the Guards compartment fitting a blanking plate to one of the end sockets used for the new shore supply cable and a look into the electric heating system which is missing its thermostat and is the only fuse not to be reinstated.

All that is left to say is Merry Christmas, thank you for reading our updates, we are looking forward to the New Year and we wish you all a happy and prosperous 2020.

29 December 2019

22/12/19 – Doors & Windows

This update begins with news of our latest arrival, those who view our facebook site will already be aware, this one, however, has rubber tires, not steel. Dave, Jack and I had the opportunity to purchase a 1953 Scammell Scarab, an opportunity we thought could not be missed. The intention is for her to complement our wagon fleet as well as for gala and photocharter cameos.

[wpvideo fyROz1WK]

So on to the weekend, with the heavy rain and the van train essentially sitting in a lake we moved to Rothley to work on ADB977107. Ross’s attention was on the rebuilding of the kitchen, cleaning the walls and fitting the oven and fridge as well as reassembling the counter.

Jake and Nick continued with window removals, removing three more on the East side.

My focus was on the East side first-class door, this was removed as part of the living van conversion and we are reinstating it. The outer skin was removed followed by the internal ply. The ply was then trimmed and refitted.

To finish Saturday, we cut a hole in the Guards compartment wall to allow access to the power distribution cupboard. As part of the conversion, the compartment was removed but was refitted a number of years ago when the Irish boiler vans that once frequented Quorn yard were scrapped.

On to Sunday, I continued with my hole in the wall. Making a door fitting trim pieces and fitting pie warmer and steam heat mounting plates. This took me most of the day.

Jake having previously applied bitumen to the bottom of the window frame refitted the window opposite the kitchen, assisted by Nick.

Ross rebuilt and strengthened the Guards Desk. Which was fitted.

Harry and Eddie were also present and did an excellent job of cleaning the kitchen. 20191222_190033

Finally, an image of the double doors refitted by the C&W team. Although there is still a little fettling to compete.

20191221_130624

Of cause, Merry Christmas to you all and thank you for following us. We will have an update before the new year and will take a look over the year we have had.

22 December 2019

15/12/19 – Mostly Fitted Freight

A slight picture light update this week, apologies! In other news, as some of you will have seen on our Facebook page, we have been awarded the 2020 Mortons Media (Rail Express) Modern Traction Award from the Heritage Rail Association, which is in addition to our two shortlistings.

This weekend has seen the final vacuum brake overhaul completed on our van train and a release valve replace on B763305. The final two vans, B852838 and B783082, have each had their brake cylinders lifted down, overhauled and replaced. With two vans left, we spend one day on each van. Saturday saw us concentrate on the Shocvan, starting by stripping the cylinder down enough to lift down. The cylinder put up a fight when we tried to dismantle it, with rust around the dome studs preventing the dome coming free. The cylinder has been untouched for at least 29 years, which is the amount of time it has spent at the railway. Unfortunately the cylinder had no tag fitted after its last overhaul, so the last overhaul date is unknown.

As a member of station staff, Matt and Michelle attended the Quorn Station staff Christmas Do in the afternoon, which meant Matt spent the morning signwriting the signs for the WHSmith’s kiosk at Loughborough station.

While the light was disappearing I was rebuilding vacuum release valves to replenish the stock of valves overhauled by Dave. While doing this I also rebuilt our two C-type valves, which as it turns out use the same diaphragm as the more common E-type valves.

Sunday had Nick, Dave, Matt, James and I in attendance. We started by pulling the vans down to be able to access the final cylinder on B783082. Dave set about stripping the cylinder to make it ready to lift down, removing the piston rod, release valve and piston rod cover in record quick time.

We lifted the cylinder down and began the now familiar task of the overhaul.

This then got refitted and reconnected.

With the plyboard available, I attended to a previous mistake on B763305.

The vans were pushed back down, and the test rig again coaxed into life to test the Shocvan, Vanwide and B763305. Matt went under the Shocvan with his flair lamp to check for any holes.

Both the Vanwide and Shocvan still held their brakes on upon leaving this evening. B763305 now holds for the required amount of time. We finished the testing by lunch, so spent the afternoon clearing the site van out, and putting the tools back and investigating now defective tools. Matt continued signwriting the other kiosk sign.

Thanks for reading, and join us again next week to find out what we get up to.

15 December 2019

08/12/19 – Brake Overhauls continue

Another weekend and the brake overhauls for the van train continue. Nick, Jake and I in attendance. First cylinders on B777728, B780282, and B777171 were prepared for removal.

Once the three were ready, we dropped B777728s cylinder.

This was promptly overhauled, insides vacuumed, piston rod polished, seals replaced and the cylinder rebuilt.

The cylinder was then replaced under the vehicle and as the light failed B780282s was dropped.

The final task for Saturday was to reseal the joints on the through pipe of B850498

On to Sunday Nick, Ross and I in attendance B780282s cylinder was stripped, cleaned and overhauled internally and replaced under the vehicle.

As quick as B780282s was lifted B777171s was dropped and again split and overhauled.

This was also refitted and our attention turned to coaxing life back into the test rig. With the warmer weather and after a little persuasion the rig fired up and the vehicles worked on so far tested.

E87674, B786348, B763305, B777728, B780282, B777171 and the through pipe of B850498.

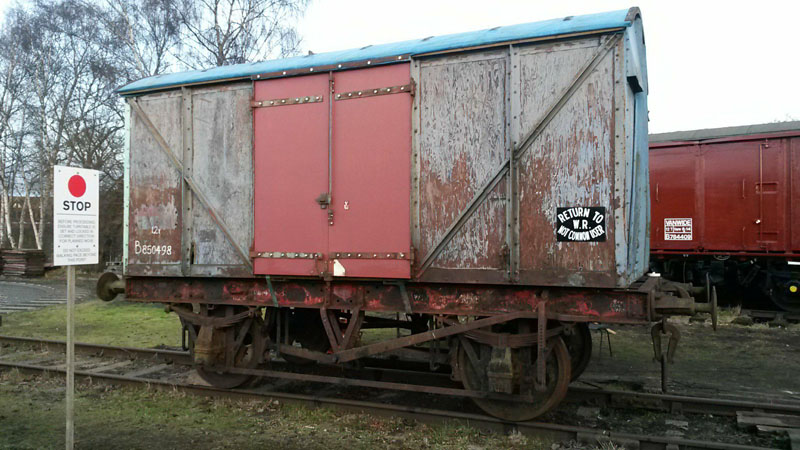

The through pipe of B850498 was improved but exceeded the minimum 4 inHg drop over 5 minutes. The South end hose of this vehicle has yet to be changed and this will be the next course of action. B763305 held vacuum for 16 minutes, the only item not looked at for this cylinder was the release valve as this is a C type westing house vacuum cylinder which has a different design of piston and release valve, we have yet to overhaul this type of valve so further investigation into this type is our next course of action. E87674 required an adjustment of the brakes which was carried out and once a number of applications of the brakes on the various wagons were carried out and the timers started.

Our final image shows the winter wonder lights train passing Test Car 2 and when we left Quorn over 4 hours after the brakes were applied all but B763305 remained on.

8 December 2019

01/12/19 – Overhauled, but still no suck…

To begin, it gives us great pleasure to announce we have been nominated for not one but two Heritage Railway Association awards. Test Car 2 has been shortlisted for the 2020 Morgan Award for Preservation and our website for the 2020 Communications Award.

We wish our fellow shortlisted groups luck and look forward to seeing those who attend the Dinner in February.

On to Saturday and we begin with an hour or so defrosting the Test Car and locks to gain access to the GUV and tool van. Once we had gained access the main focus turned to the van train cylinder overhauls. Starting at the south end Nick, Matt, James and Will began on the first vehicles requiring work, these are E87674, B786348, and B763305. Each had the ancillary attachments, Release Valve piston rod and all split pins removed.

B786348 was rather stubborn so required a little of the hot spanner action.

With all the extras removed the Cylinders were dropped from B763305 and B786348

Nick, Dave, Jake and I continued the work started by the team on Saturday. We stripped down the 2 cylinders, both different from each other. One cylinder is a ‘C-type’ and the other is the more regular ‘E-Type’. Each of them is no issue, but the ‘C-Type’ has a ball valve in the release valve and the ‘E-Type’ has the ball valve in the piston.

By 11 O’Clock using the railway’s loading shovel, one cylinder was back under its van (B763305) and the other ready to be re-assembled. Once tea (and obligatory biscuits) had been consumed, the hung the other cylinder under the other van (B786348) again using the loading shovel, which has got quite good and imitating a Challenger 2 tank. Must get that silencer replaced…

With the two cylinders hung and reconnected, I set out to start the vacuum test set to begin testing the two completed vans. Unfortunately, I was defeated. Lister-Petter AC1s do not like the cold as it turns out. Options are being looked at to upgrade the test set to something easier to start, in all weathers.

With the test set not starting, we removed the vacuum cylinder from the fish van to overhaul that. This was completed in the falling light. Sadly we now don’t have a way to test the newly overhauled vans, so can’t prove the repairs.

Matt spent the day a touring signwriter, signwriting a Vanwide at Peak Rail in the Heritage Shunter’s Trust shed.

Next week, more overhauls are planned. That is of course unless the weather has other ideas!

1 December 2019

24/11/19 -Well, they all suck(ish)…

Welcome to this week’s update from Quorn Wagon and Wagon. Nick, Matt, and Jake start the weekend. With the van train now stood down for the winter and stabled in the yard, Nick and Jake started the brake overhauls. The first task was to replace the life-expired vacuum hoses, with 11 changed on Saturday. Replacing the hoses allows us to baseline the train and see if there are any other underlying issues with the vacuum equipment. 20191123_155655

Despite the forecasted weather, the rain held off long enough for Matt to apply the signwriting to B505313

As the forecasted rain arrived, steel plates were placed over the vulnerable areas and Nick and Jake applied gloss red to the vacuum swan necks. This completes B505313 however there are a few items to complete on the Container before the ensemble is released to traffic.

Sunday saw Nick, Dave and I undertaking initial vacuum testing on the van train. We liberated the vacuum test rig and transported it down the yard to the van train. Starting at the south with the fish van, B87674, we methodically worked up the train testing each van individually to see if the vacuum was functional, and how long the cylinder reamined applied for. During testing, you can tell where there are leaks, and often you can hear them, despite the noise of the test rig.

6 additional hoses were changed today, and the vehicles which require further attention have been identified, with 8 vans requiring a cylinder overhaul. These will happen, weather dependant, in the coming weekends. We’ll soon rattle through them, and the van train will, all being well, be released to traffic with functional vacuum brakes. With the leaks fixed, we are at least, halfway there. Thanks for reading, and join us again next week!

24 November 2019

17/11/19 – Loaded and Secured

Unusually this update begins on Thursday with a trip to Medstead & Four Marks. The reason for the visit, to pick up some Conflat chains. Our thanks go to the Mid-Hants Railway Wagon group for offering them to us, they were in far better condition than our own.

Friday saw the December issue of Rail Express hit the shelves with an article looking ant our work on Test Car 2 IMG-20191115-WA0000

On to Saturday and I continued with the signwriting started last weekend.

Nick drilled and attached the chains to the Conflat whilst Ross and Dave drilled and secured the additional rails placed on the vehicle last week.

Then the main event, before the light failed and after I had completed the high-level signwriting we lifted BD4303B on to B505313. With the subframe missing we had to first lower the container on to a set of sleepers.

The Container was then lifted from each end and the sleepers removed.

Once sat on the rails the Container was secured to the Conflat. Earlier before the lift Nick and Ross also applied the identification plate above the door.

To allow the lift I left off the branding and applied it Sunday as well as a few other signwriting finishing touches.

Nick, Ross, Jake and Dave applied Bauxite to the Conflat. adding heat to cure the paint as they went along. Sufficiently drying the vehicle before the rain started.

All of the conflat chains had reached the end of there threads although reasonably tight we took some steps to resolve. We couldn’t move inwards by a ring as the chains were not long enough so our next option was to shorten them. We did this using an old BR trick, one of the links was heated in each chain and bent.

With the shortened chains we resecured the container. Jubilee clips were also added to prevent inadvertent loosening.

With it also being the Last Hurrah we saw a few of our vehicles in operation. Notably the Vans.

The van train is now stabled in the yard at Quorn in preparation for the Winter Brake overhaul and to finish Ross and Dave serviced the Test Cars Generator.

17 November 2019
