  • 03/11/19 – Quorn Wetter & Wetter

    Once again the weather has conspired against us. So a trip to Rothley to progress ADB977107. The C&W team has been carrying out body repairs when the time has allowed. Progress has been such that we are able to reassemble interior fixtures.

    Before we began, Jake applied bitumastic paint to all the bare metal areas on the inside of the vehicle’s skin


    Jake and I then focused on the main saloon.

    Nick with assistance from Jake also, rebuilt the toilet window

    Ross with a little assistance from new recruit Will as well as Nick made progress with the Kitchen.

    Ross also checked the batteries output, unfortunately, these are life expired


    We can also show the progress of B954546 currently a volunteer project at Rothley. The cladding has been replaced, new duckets manufactured and glass windows fitted all round.

    Sunday with the threat of rain, Ross and Dave cut down some plates to use as load distribution plates for Nicks container once lifted on to the Conflat. It transpires that we decided later that additional sections of rail shall be used to support the weight of the container.

    The main task for Sunday was the rectification of Test Car 2’s incorrectly assembled buckeye draw gear. The buckeye was removed, supported by the loading shovel the draw hook and bar removed and the offending article lowered rotated and fitted correctly.

    Whilst the majority of the gang worked on the Test Car, I looked at the chain boxes on B505313 these had fallen foul of the water trap that they are. With the bottom of each removed at an earlier date and the lack of suitable welding facilities, I riveted steel plates to the back of each in areas that had been eaten away.

    As a none structural skin, this gives a solid backing for filler to be applied. In the future, the skin of the chain box will have to be replaced but at this time we have gone for this option.

    As the rain that was forecast did not materialise and what ended up as a day of sunshine we sheeted BD4303B whilst it was dry. This will keep the wet out until the weather gives us the opportunity to apply the gloss crimson.

    Also on site Eddie, Harry, and James who took the opportunity to tidy our surrounds and a good job they did in removing the many items of waste that wagon restoration inevitably generates.

  • 14/04/19 – It will soon suck once again

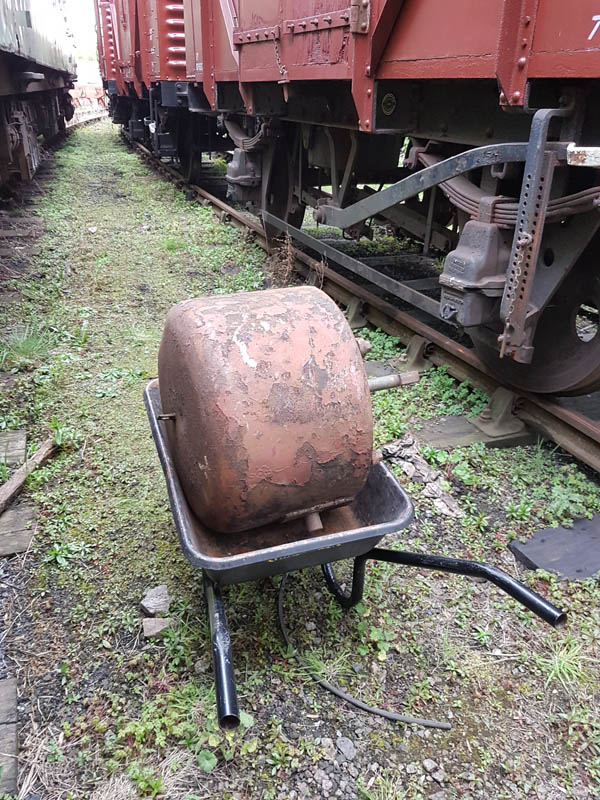

    This weekend we started with a morning trip “Up” the line to Swithland then on to Rothley.  The Swithland stop was to pick up an 18″ Vacuum cylinder for 500954 and also as the gang is increasing in size a set of seats for Nicks Transit to move us all about when necessary.  On this point, we welcome back Olly, who use to help Nick some time ago.

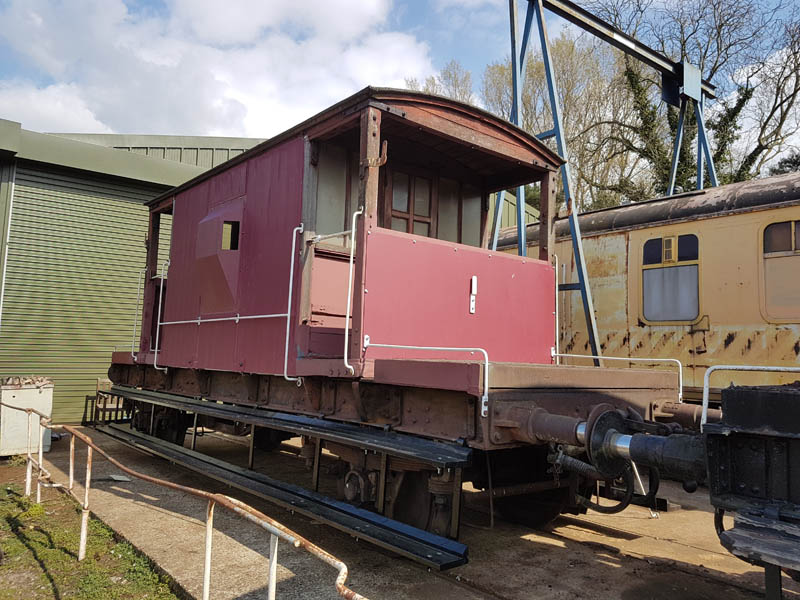

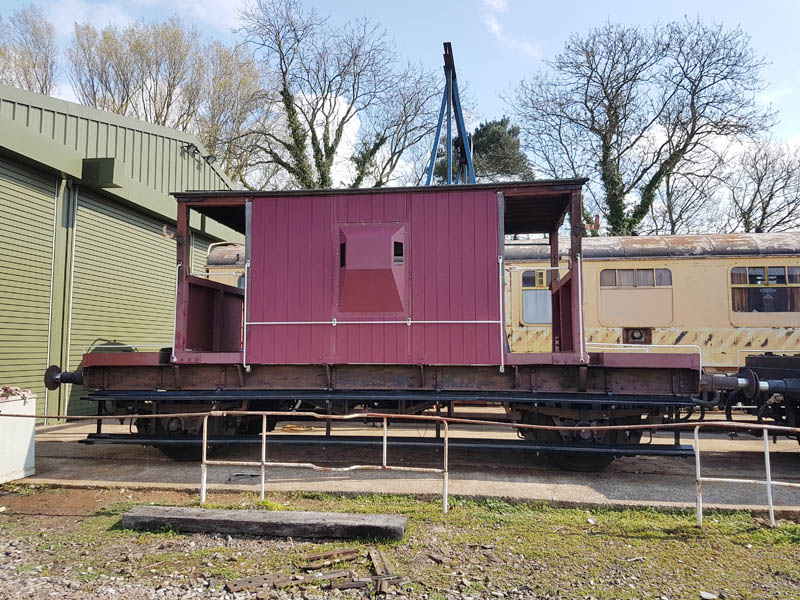

    On to Rothley and some overalls, boots and high-vis for Olly stored in “The Yellow Coach” and a quick look at B954546 which has been recladded on the Westside and received new footboards all-round, amongst other work.

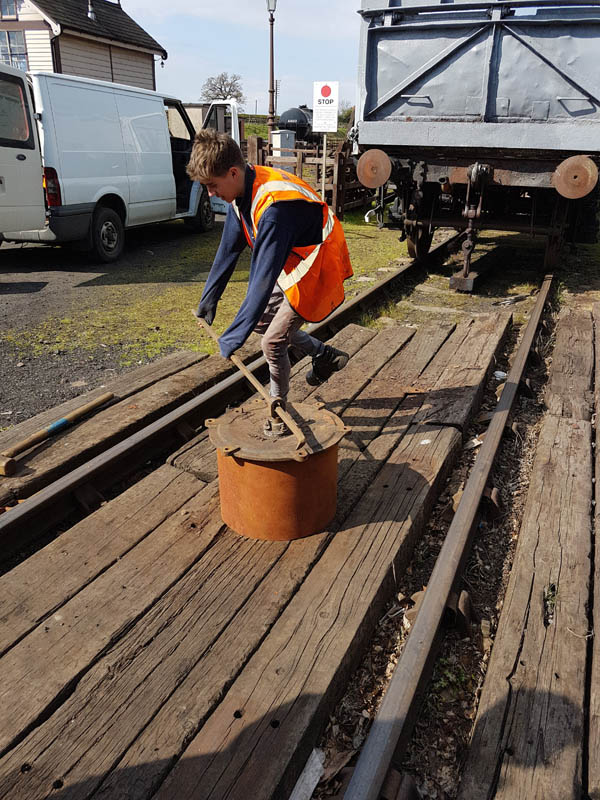

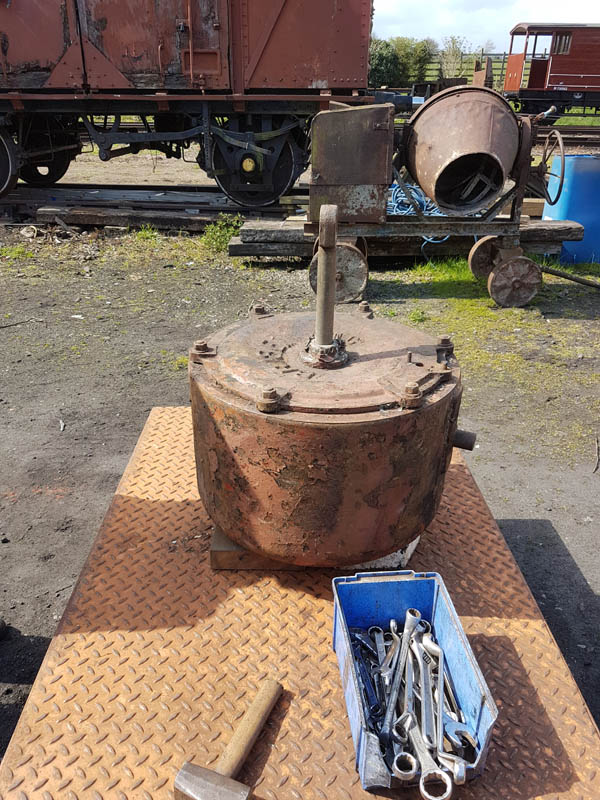

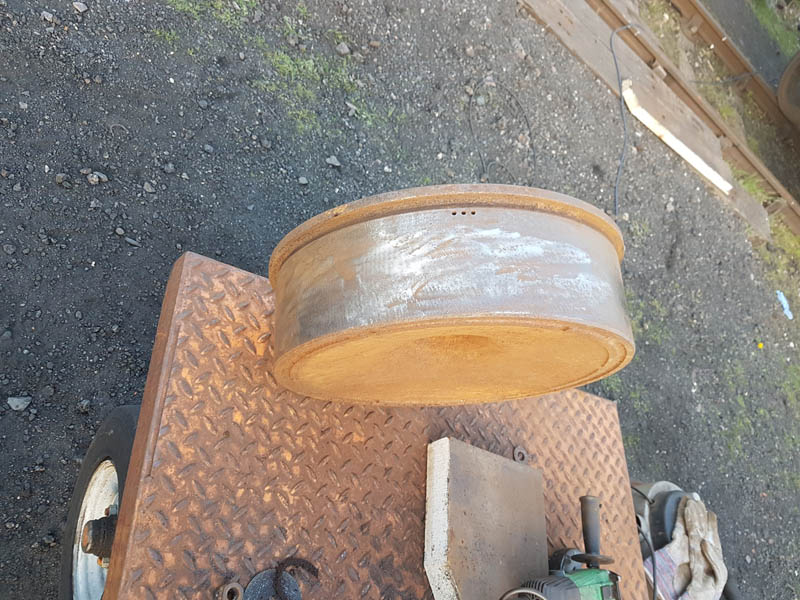

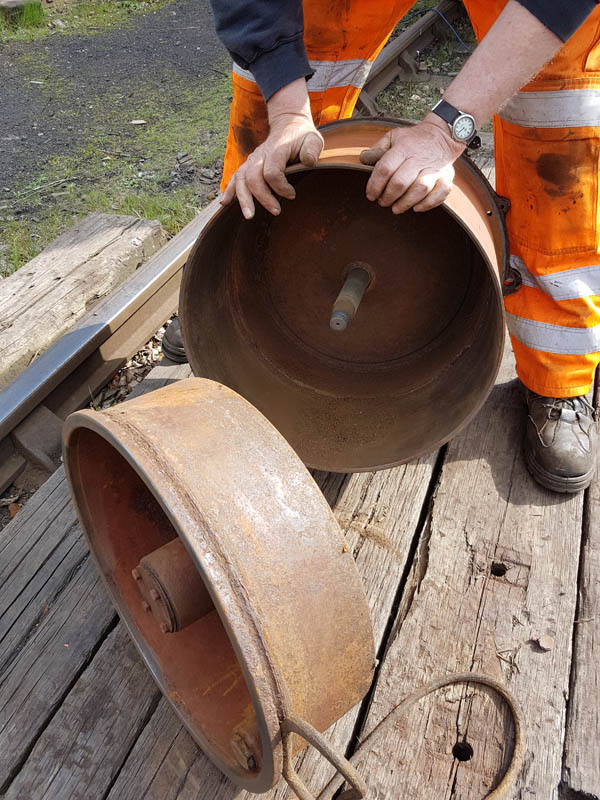

    Back at Quorn and the task of overhauling the cylinder. According to the overhaul tag it was last split in 1975 and as expected a few difficulties were encountered. The piston had seized, but the dome was removed without too much hassle. The piston was loosened with a little sledgehammer application and once free Jake unscrewed the piston rod.

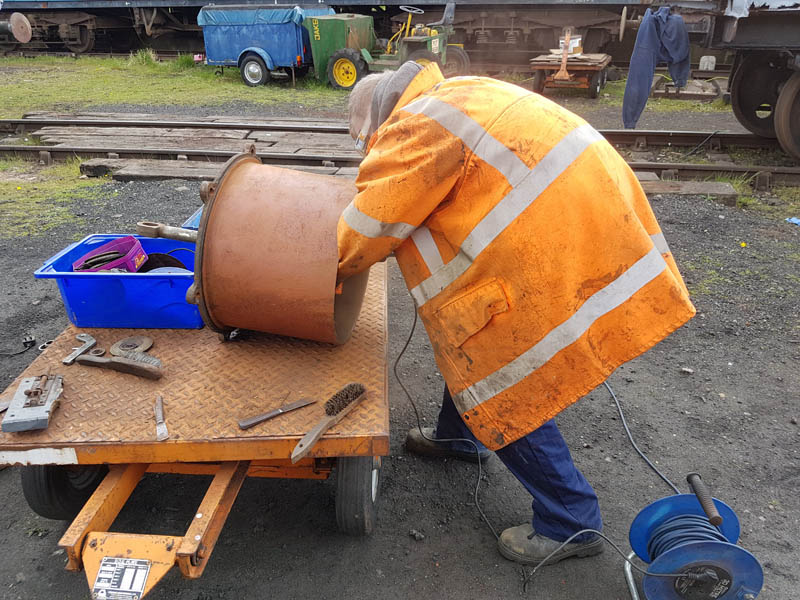

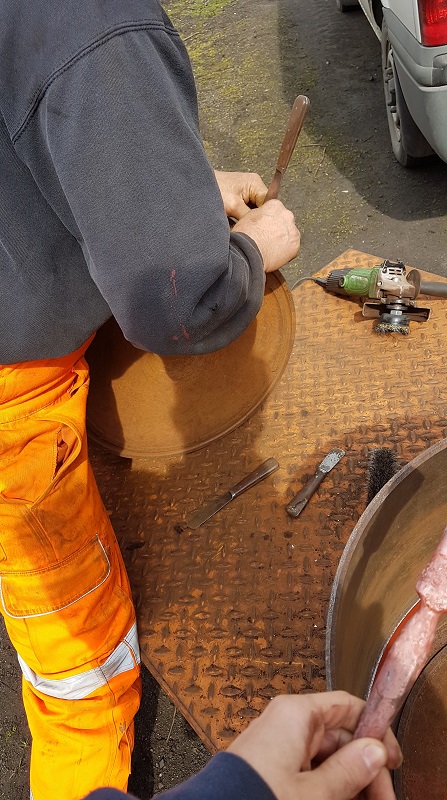

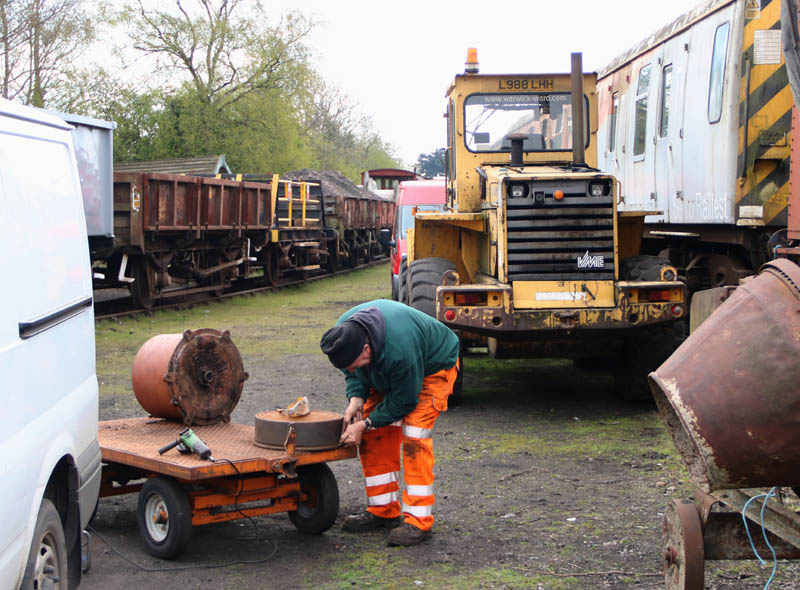

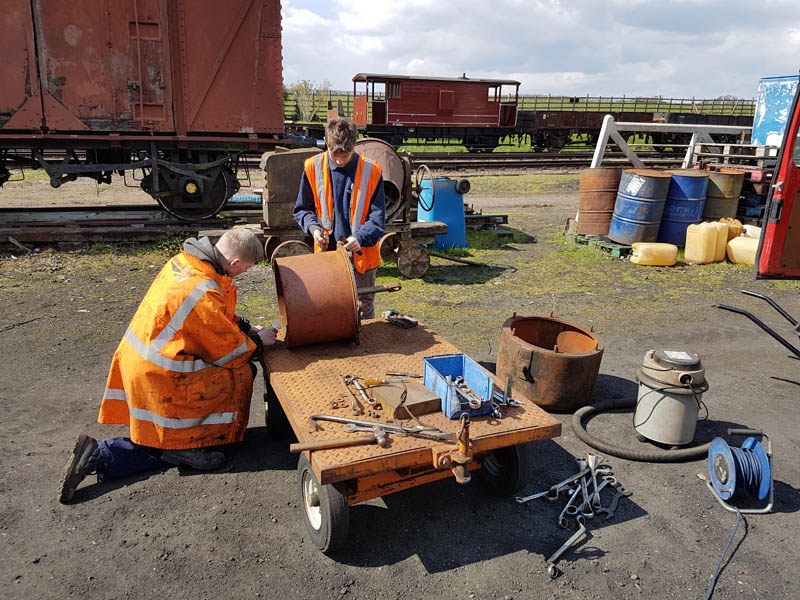

    Once in kit form, Jake and Olly began to clean up the individual components.

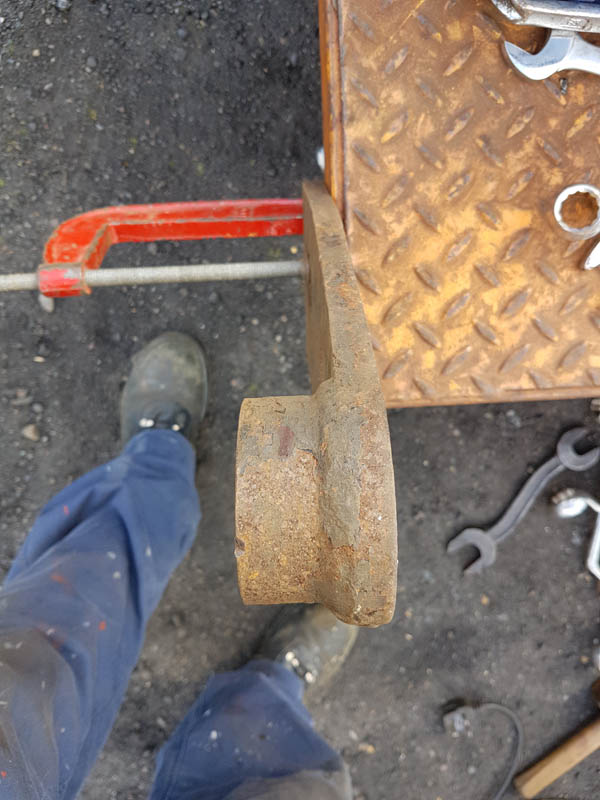

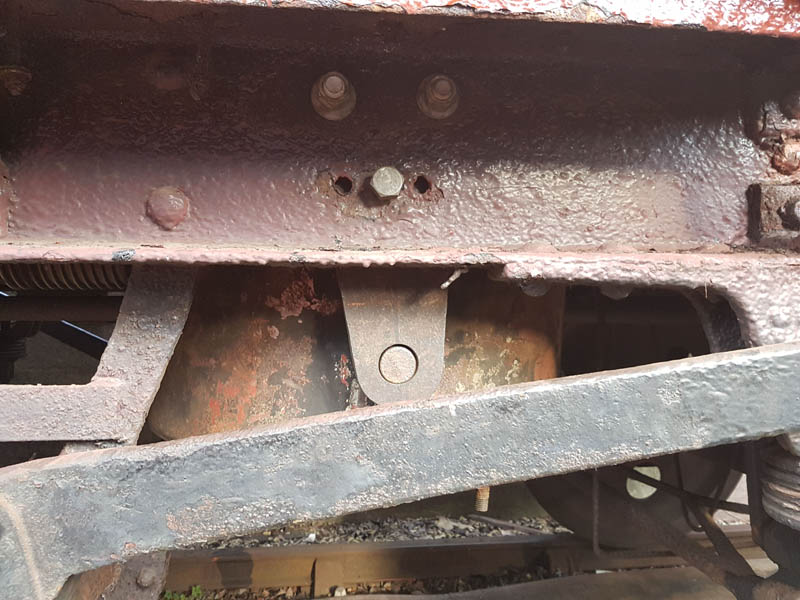

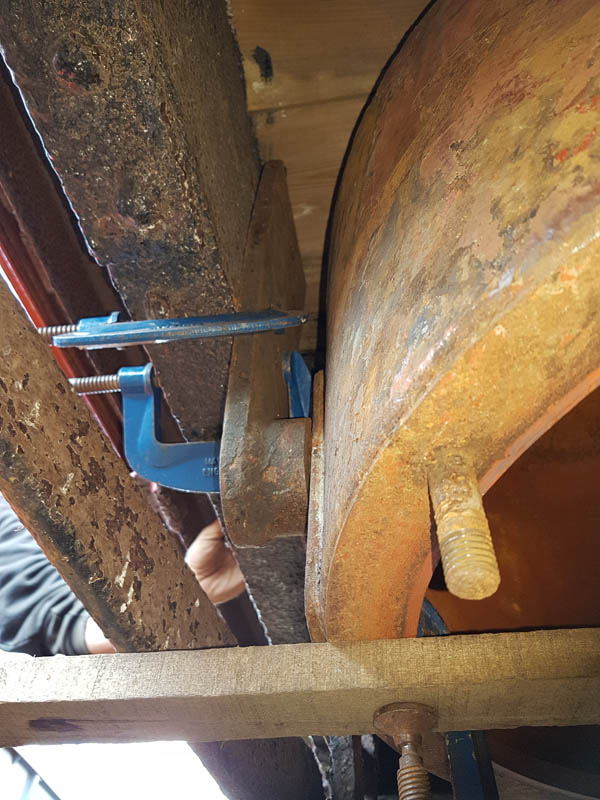

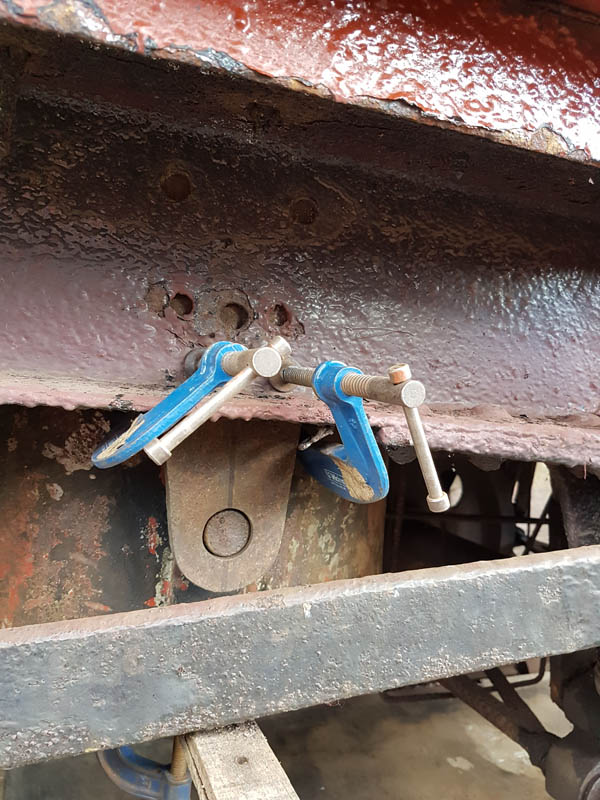

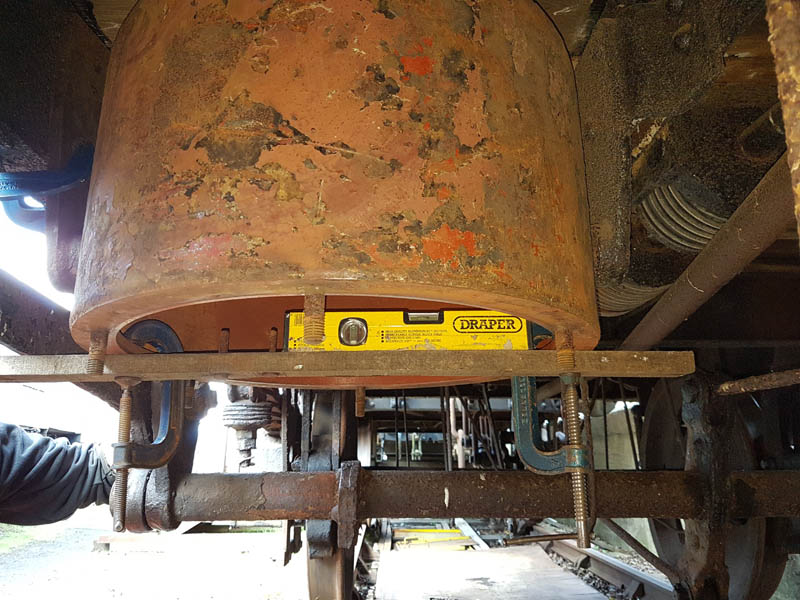

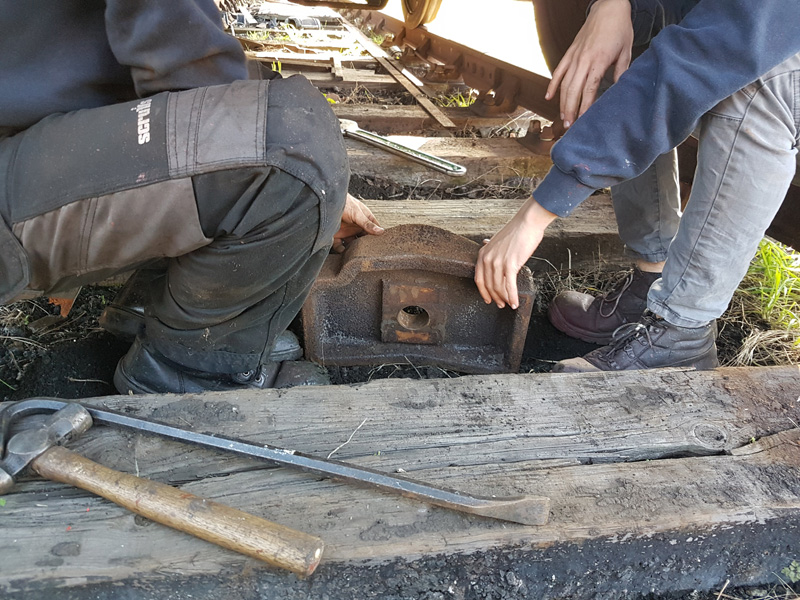

    Whilst the dome was empty it was easier to handle under 500954 so Nick and I used it to position and mark the new outer trunnion.  The new item is a BR Coach one which is narrower than the LMS wagon one. The Trunion was offered up, the cylinder leveled and squared and the trunnion clamped and marked up.

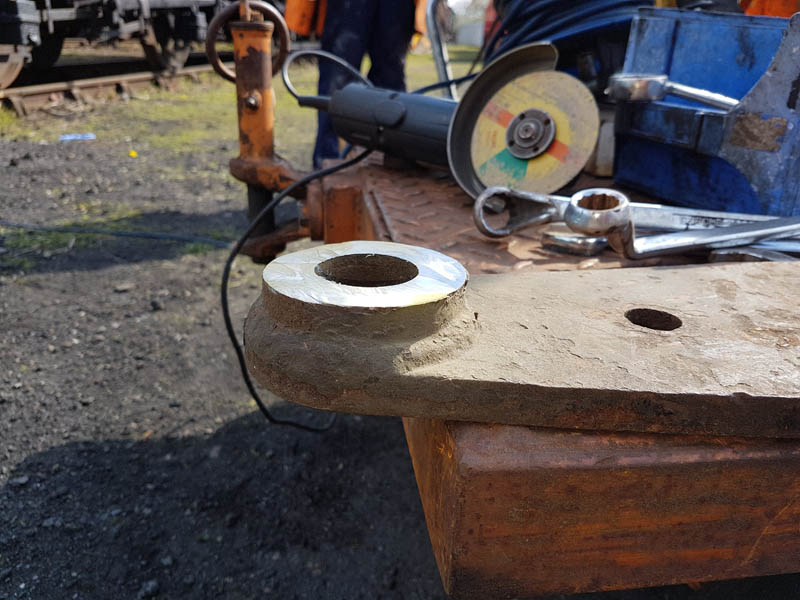

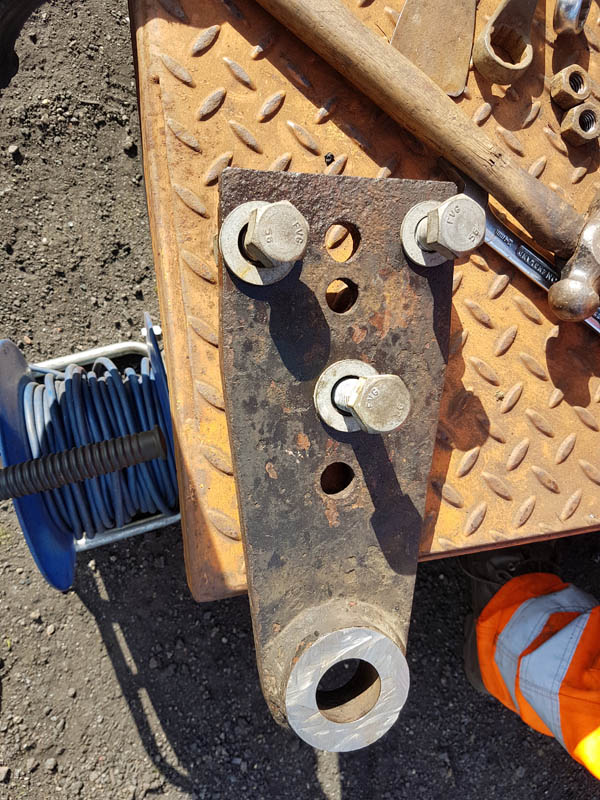

    The pivot mount was found to be too thick so the trunnion was unclamped adjusted with an angle grinder and reclamped.

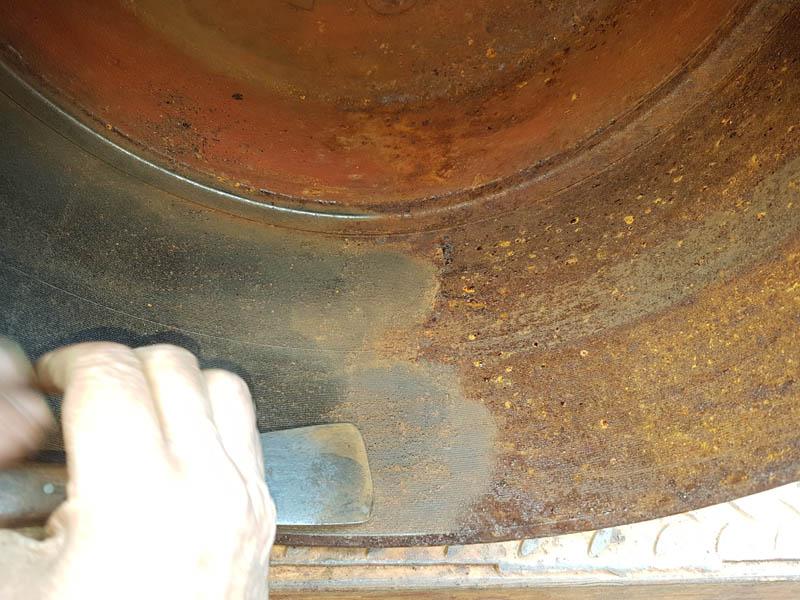

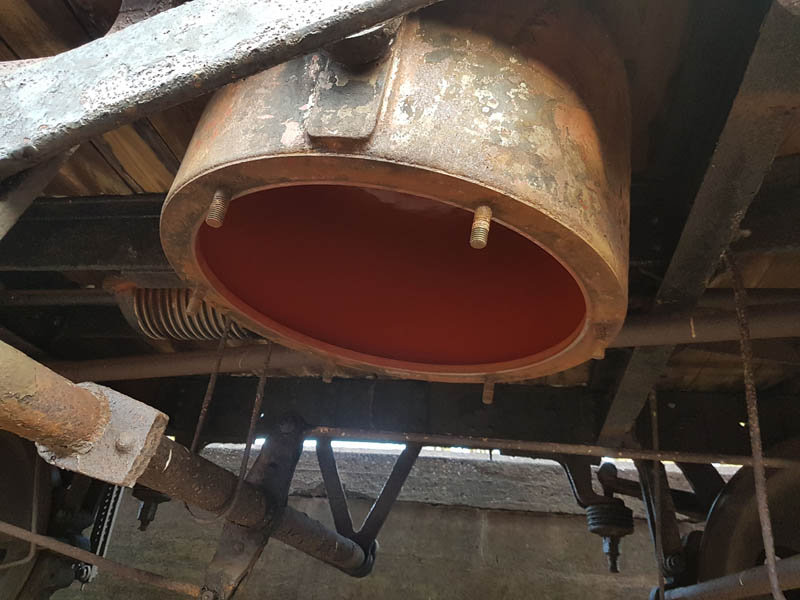

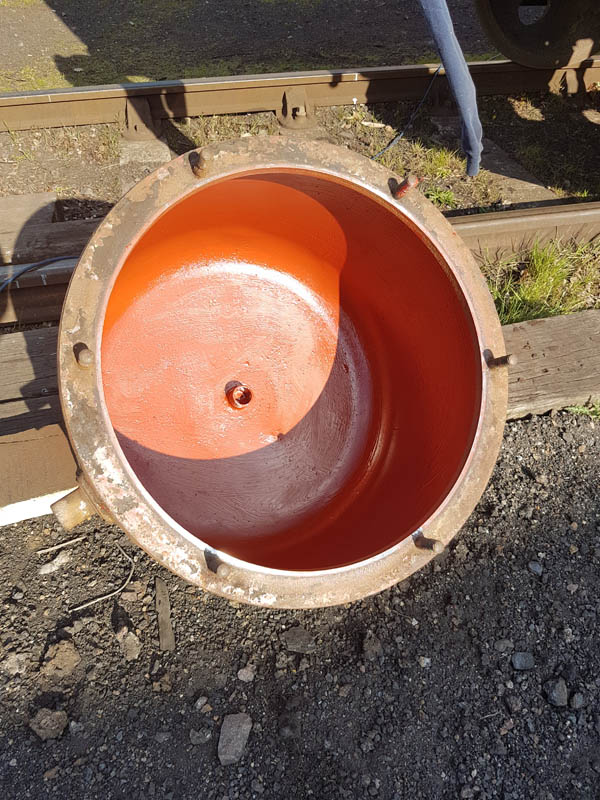

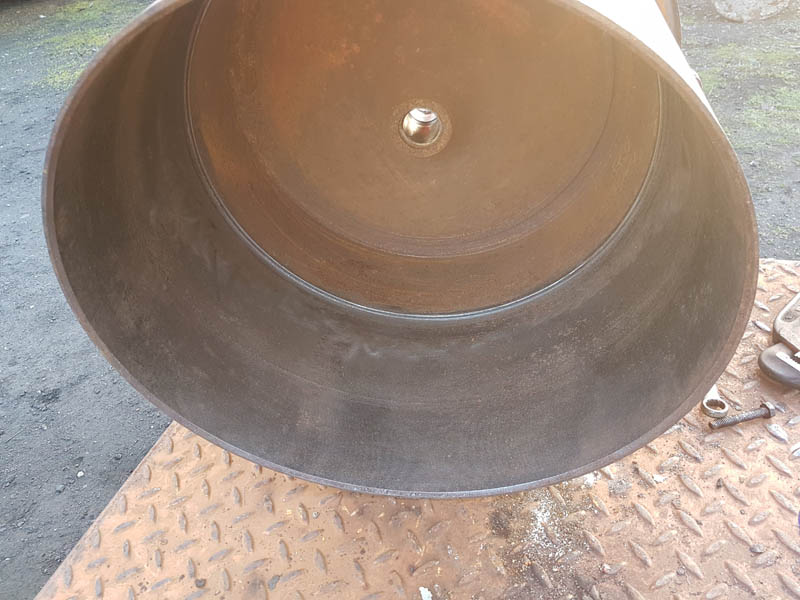

    The dome was checked for clearance and found to pivot freely so the final hole position was marked and drilled.  The inside of the dome was also “descaled” and painted before being bolted temporarily into position, the first time since 1967 a cylinder has been hung under the vehicle.

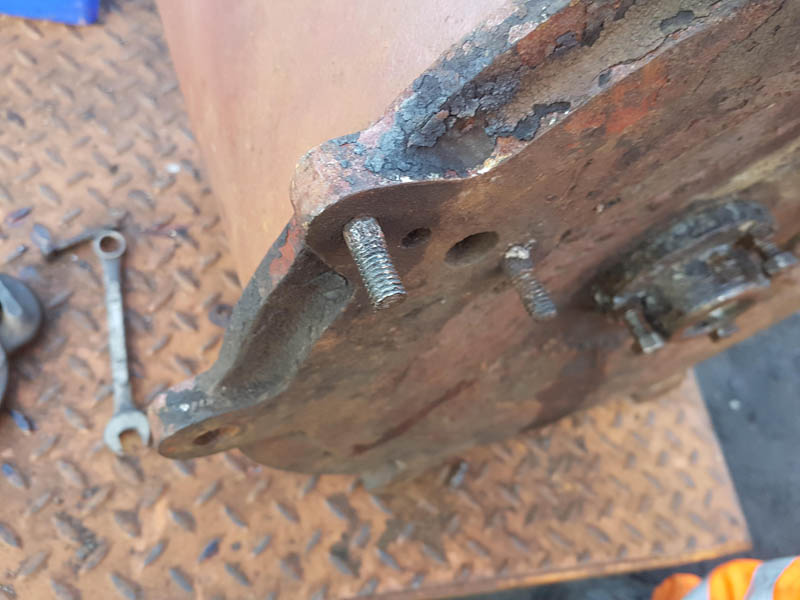

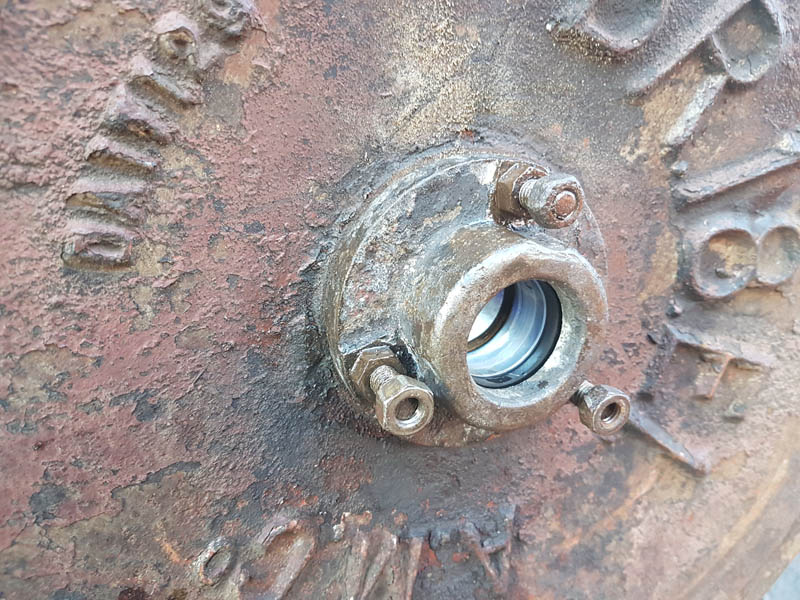

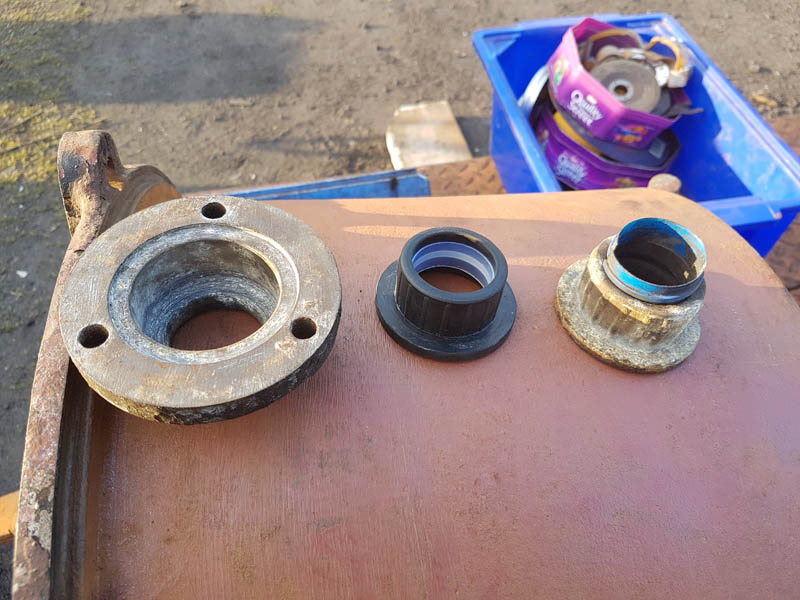

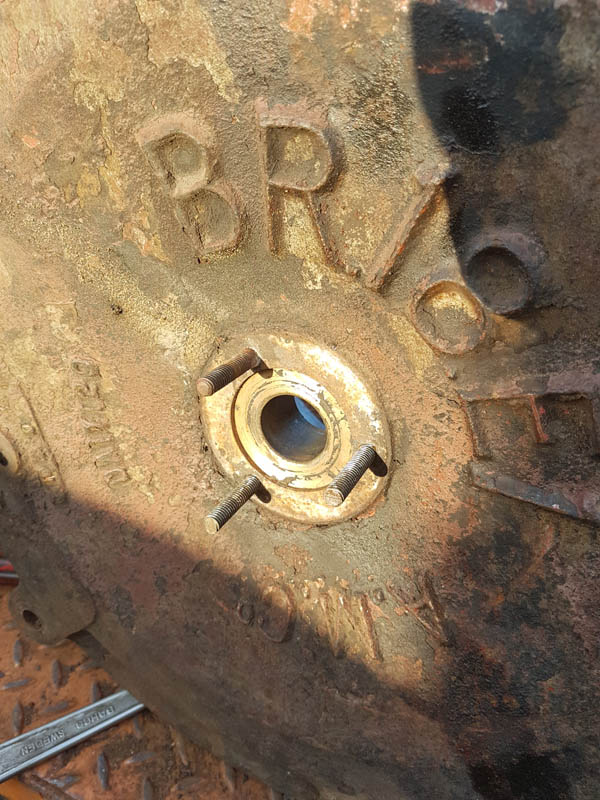

    Back on to the other components and with Olly’s help I removed the old gland seal, although 2 out of the 3 studs sheared.20190413_182919

    With 2 pieces of replacement threaded bar located the new gland seal was fixed in position and by luck one of the sheared studs had enough thread remaining to replace the missing release valve stud.



    Last items for Saturday and Jake and Olly made a superb job of the component clean up.

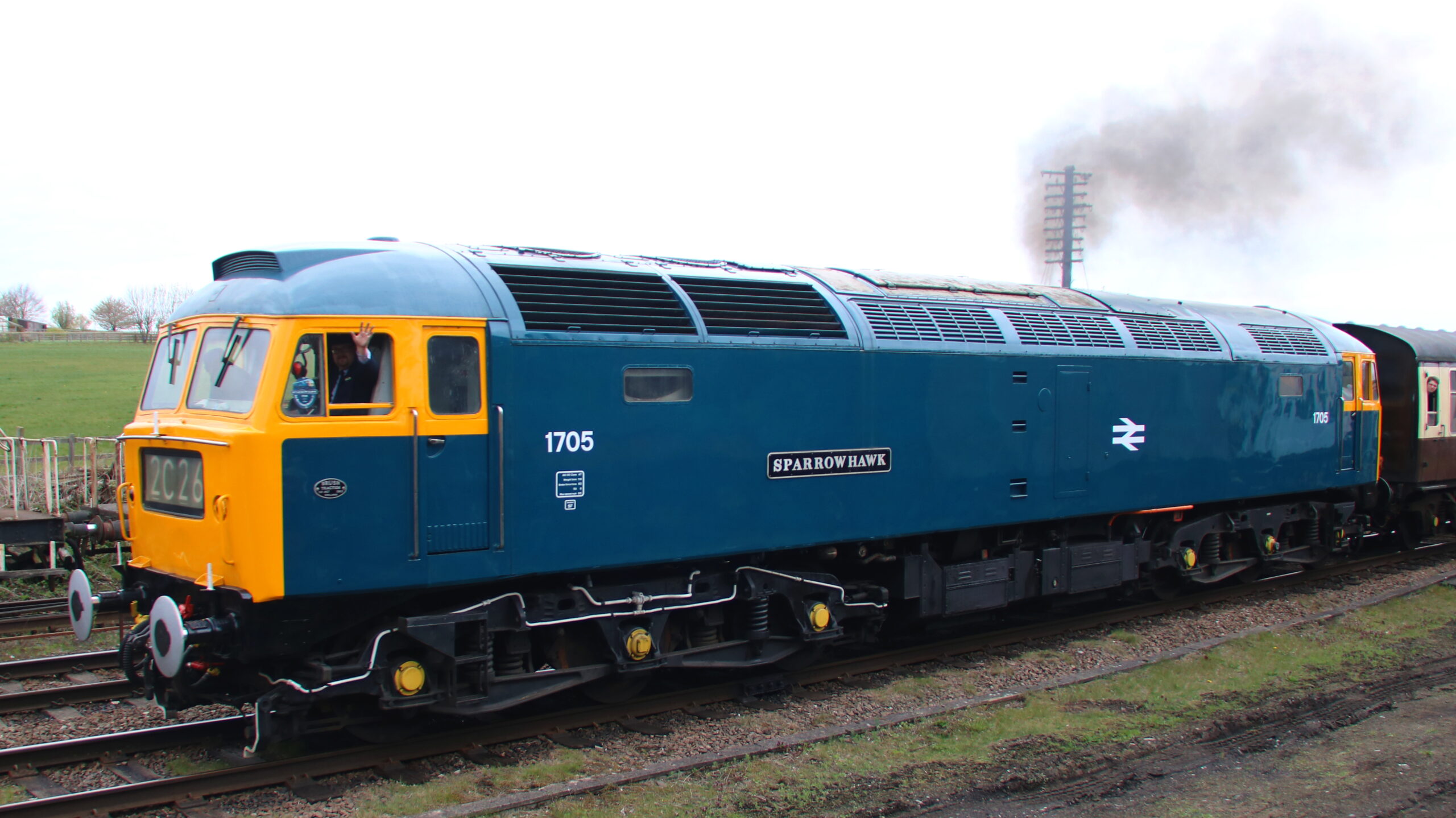

    On to Sunday and I was occupied crewing the Class 47 during the GCR’s Diesel Gala.

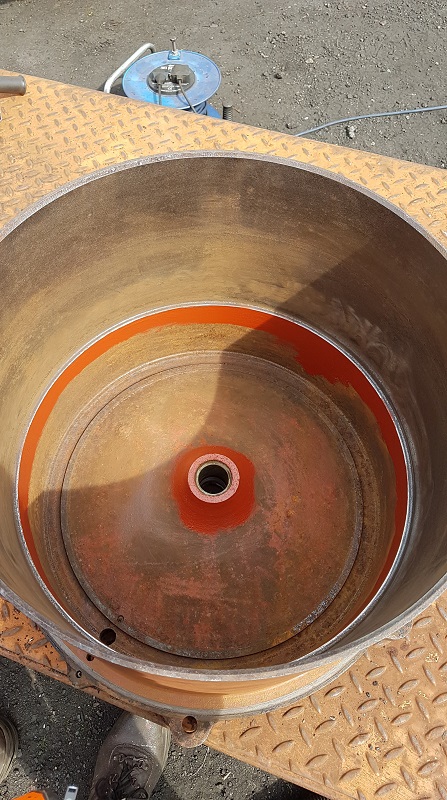

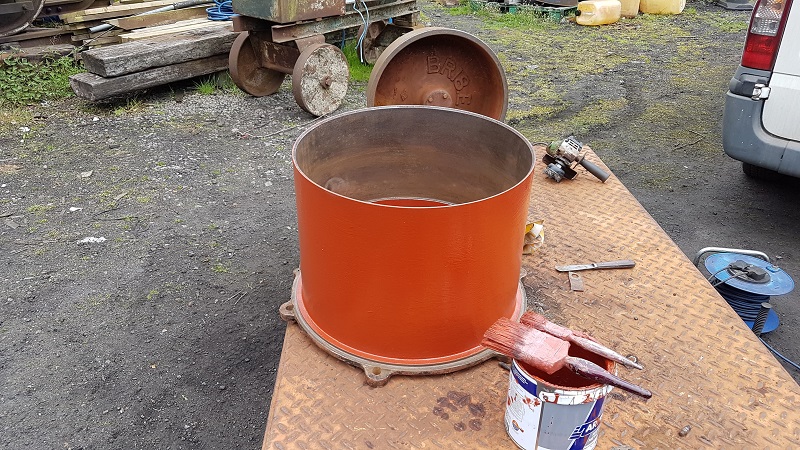

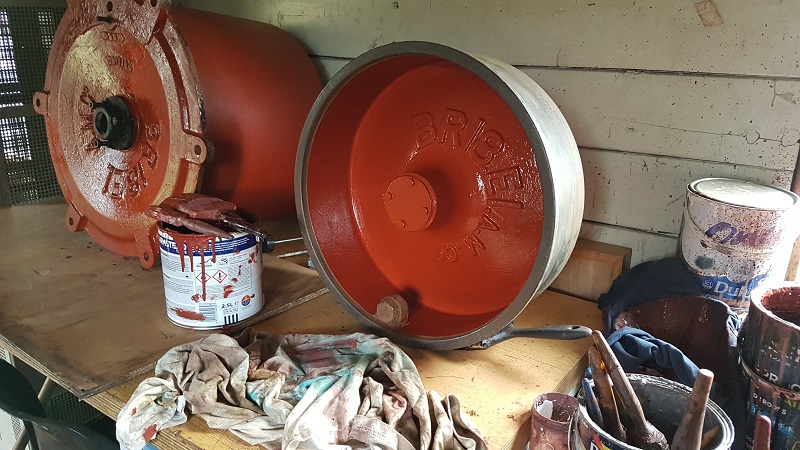

    Jake and Nick continued with the cylinder overhaul ensuring every ounce of rust and detritus was removed.  The plain faces of the cylinder were then red oxide-d ready for next week’s assembly.

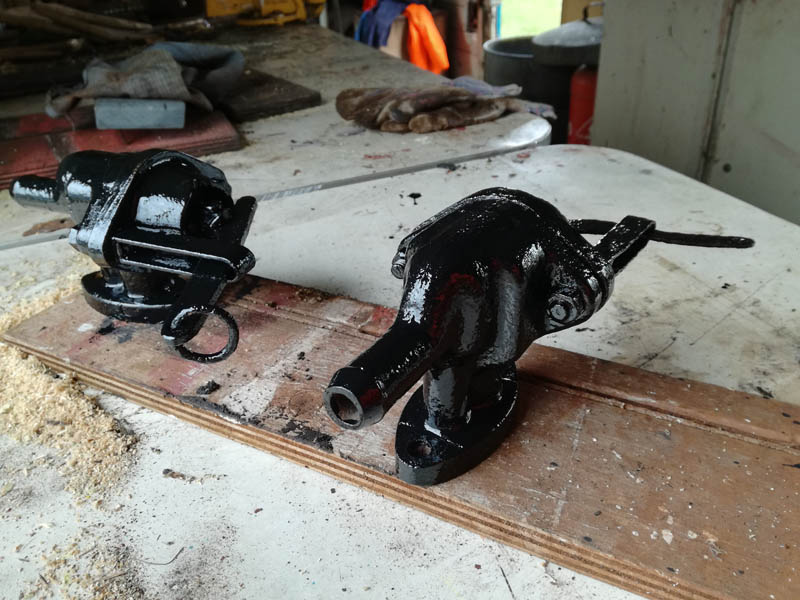

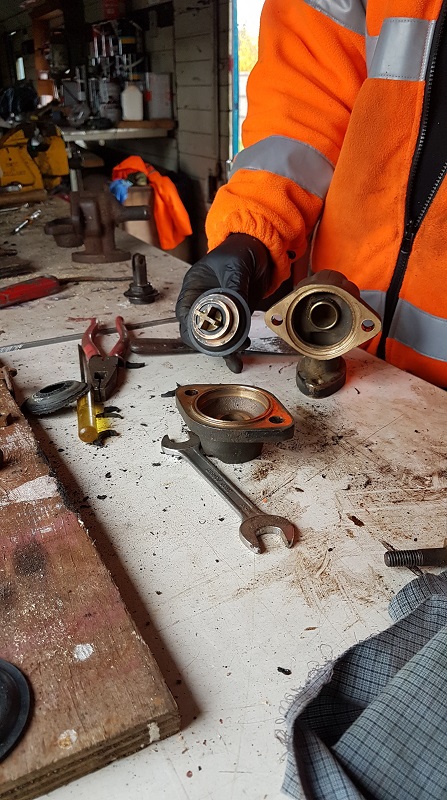

    Dave was also with us and took on the task of overhauling a few of our spare release valves.

    Ross, in the meantime, is once again on his way to Greece on a family holiday.57206048_312782232745429_7208615698778554368_n

    4 days for wagons next weekend, anything can happen with so much time.

  • 24/06/18 Mind your head on the door!!

    24/06/18 Mind your head on the door!!

    One brake van in but two out, B954268 has returned to traffic and pressed straight into service by bringing the Van train from Swithland to Quorn and doesn’t it make the yard look like a working yard.


    B954546 has left longterm storage at Quorn and has become a Volunteer project for those that volunteer within Carriage and Wagon at Rothley, this is a positive step forward for this vehicles return to traffic.

    On to the one that came in and this is M730562, a new catchphrase from Nick accompanies this vehicle,  No longer are we to mind the lamp brackets, its the low door frame that will catch you out on this one. First task was the replacement of the step boards as these are required to access the vehicle. Nick, Ross and Jake began by removing all of the life-expired boards.

    With the boards off the exposed metal work was red oxided.

    Whilst this work was being carried out I began with the interior. The east side of the van (Although the west side until very recent) has been beaten by the weather and the interior had been adversely affected. Paint had begun peeling so out came the heat gun and the arduous task of stripping the side. Ross assisted with the task once the step-boards had been complete.

    Nick and Jake also came into clean up the inside of the duckets that had also experienced a little weather beating. Once tidy red oxide was applied.

    Once the East side wall was stripped the rest of the van internal was sanded to give a key for painting.  As we progressed around the van faults were repaired by Ross,  Loose veranda wall cladding,  loose locker door fixing, raised screw heads and loose door frame all rectified.  With the wall down to its initial LMS Crimson the 3′ 6″ demarcation line applied by BR can just be made out confirming the references we use.

    With the Red oxide applied now dry new step boards were fitted, all but the West side middle board which requires new timber purchasing.  Measurements were also taken as we will be ordering a number of timbers to replace a few on the van sides.

    Finally, we can announce the secret task that we have mentioned in two previous updates:
    Update mention 1
    Update mention 2

    For the 100th anniversary of the signing of the armistice and the end of the War to end all Wars, the GCR will be remembering those who made the ultimate sacrifice over the 10th and 11th November.  One of the items taking part is a full size replica of a WWI tank.  This is owned by Jack Shaw, GCR volunteer and friend of Quorn Wagon and Wagon.  We have been assisted over the last few weeks to rebuild the tank on site.  Including a little signwriting applied by me.
